Reassembly





LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: REASSEMBLY

1. INSTALL LICENSE PLATE LIGHT BULB

(a) Install the license plate light bulb to the license plate light socket.

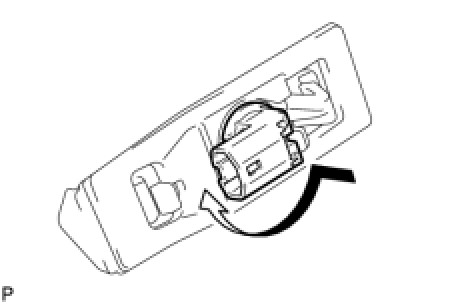

(b) Turn the license plate light bulb and the license plate light socket in the direction indicated by the arrow and install them as a unit.
