Room Light Assembly (for Luggage Compartment)

LIGHTING: ROOM LIGHT ASSEMBLY (for Luggage Compartment): INSPECTION

1. INSPECT NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

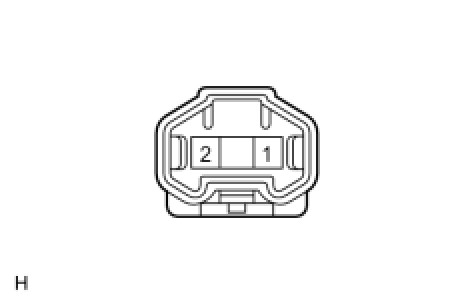

(a) Apply battery voltage to the No. 1 luggage compartment light assembly connector.





(b) Check that the No. 1 luggage compartment light comes on.

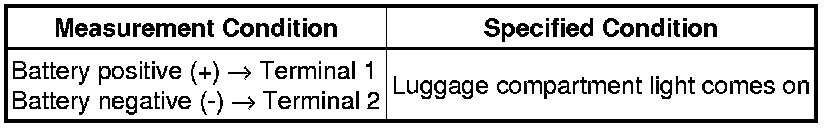

OK:





If the result is not as specified, replace the bulb or luggage compartment light assembly.
