Fail-Safe Chart

METER: METER / GAUGE SYSTEM: FAIL-SAFE CHART

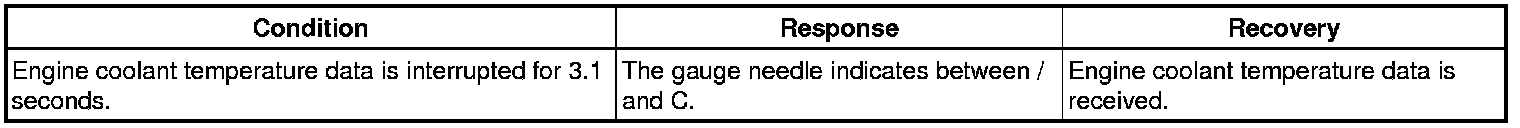

ENGINE COOLANT TEMPERATURE GAUGE:

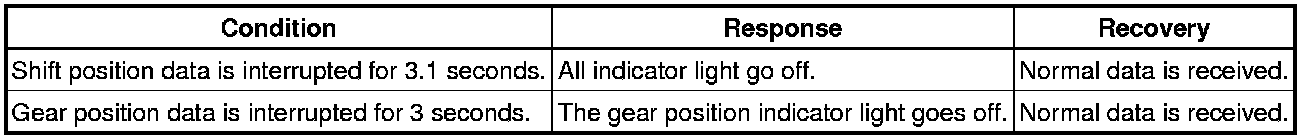

SHIFT INDICATOR:

ABS & BRAKE:

DOOR:

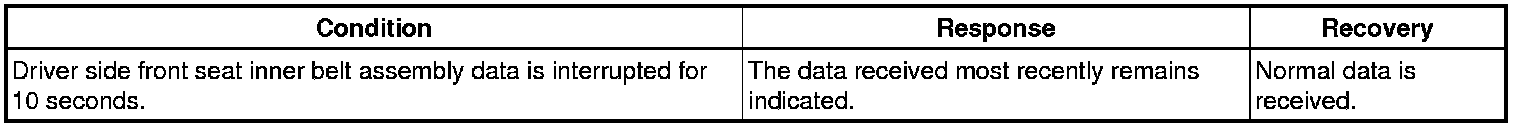

DRIVER SIDE SEAT BELT:

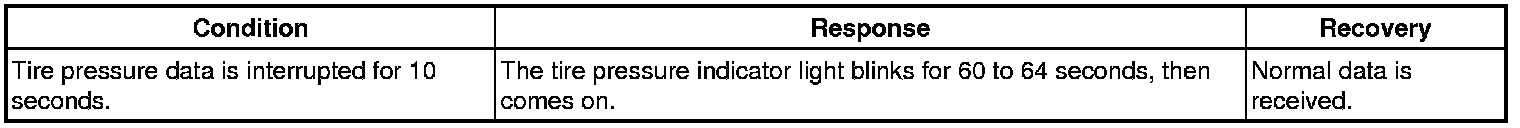

TIRE PRESSURE:

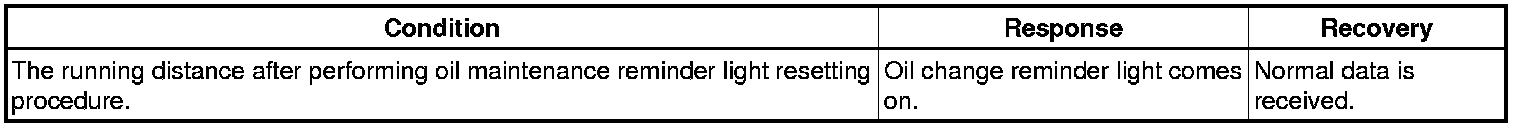

OIL MAINTENANCE (*1):

HEAD (*1)/TAIL (*2):

BEAM:

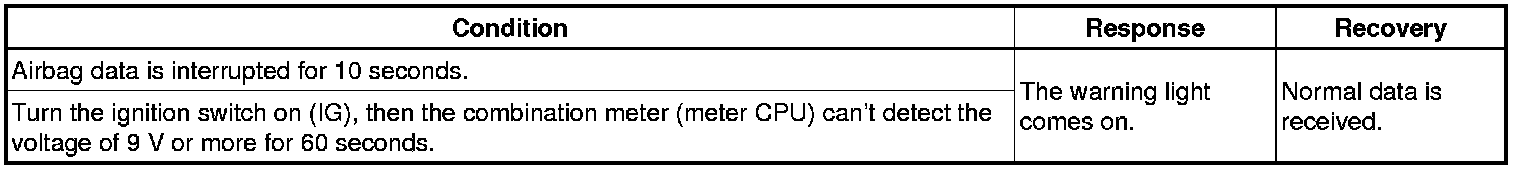

AIRBAG:

FRONT PASSENGER SIDE SEAT BELT:

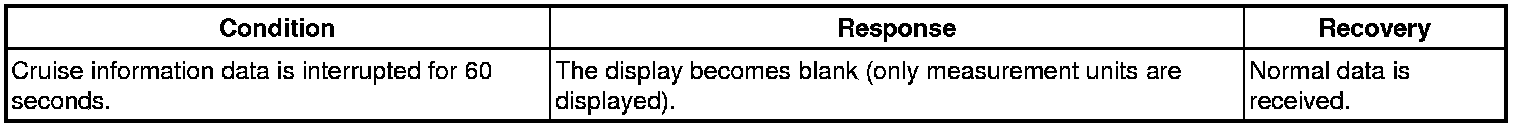

CRUISE:

CHARGE:

MULTI-INFORMATION DISPLAY:

*1: for U.S.A.

*2: Except for U.S.A.
