Unlock Warning Switch Circuit

DOOR LOCK: KEY REMINDER WARNING SYSTEM: Unlock Warning Switch Circuit
- Unlock Warning Switch Circuit

DESCRIPTION

The unlock warning switch detects if the key is in the ignition key cylinder.

The unlock warning switch turns on when the key is inserted into the ignition key cylinder and turns off when the key is removed from the cylinder.

The main body ECU is connected to the unlock warning switch via terminal KSW and key detection status signals are input to the main body ECU.

The main body ECU applies voltage to the unlock warning switch via terminal KSW. When the unlock warning switch is on (there is continuity between the switch terminals), a signal indicating that the key is in the ignition key cylinder is input to the main body ECU. When the switch is off (there is no continuity between the switch terminals), a signal indicating that the key is not in the cylinder is input.

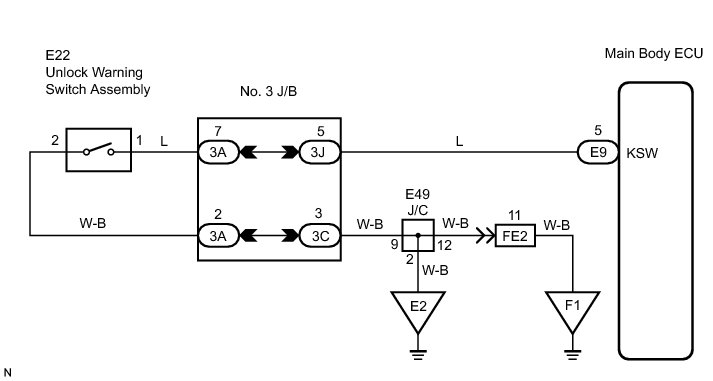

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to the ON position.

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Main Body / Data List.

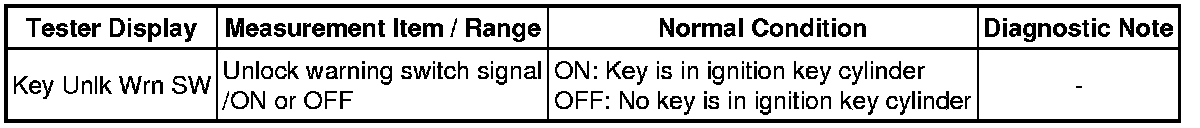

(e) Read the Data List according to the display on the tester.

Main Body:





OK:

ON (Key is in ignition key cylinder) appears on the screen.

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.

2. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

(a) Remove the unlock warning switch assembly Removal.

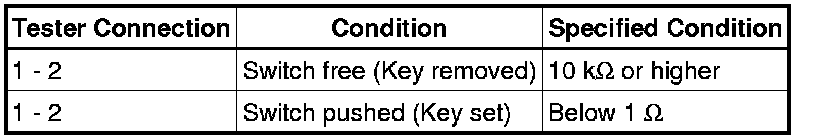

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE UNLOCK WARNING SWITCH ASSEMBLY
OK -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH - MAIN BODY ECU)

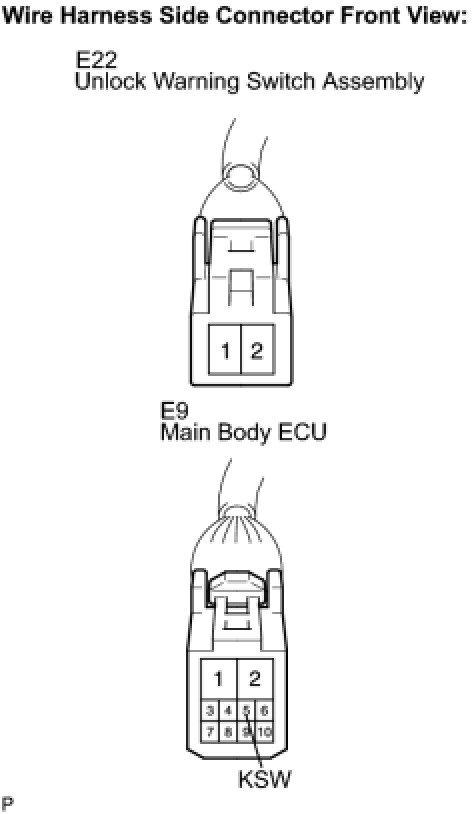

(a) Disconnect the E22 switch and E9 ECU connectors.

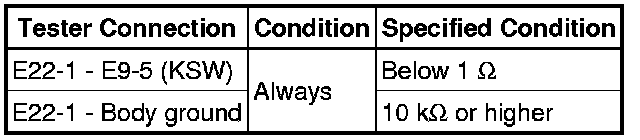

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

4. CHECK HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
