On-Vehicle Inspection

OTHER SYSTEM: CLOCK: ON-VEHICLE INSPECTION

1. INSPECT CLOCK ASSEMBLY

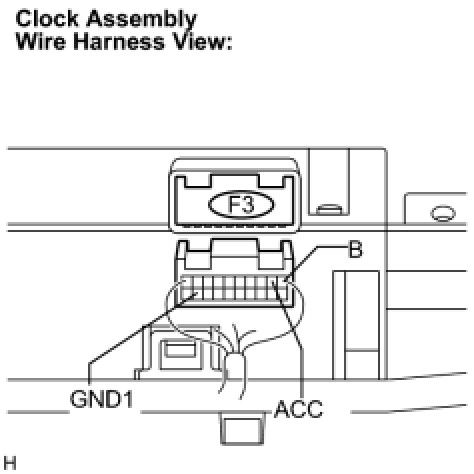

(a) Disconnect the F3 connector.

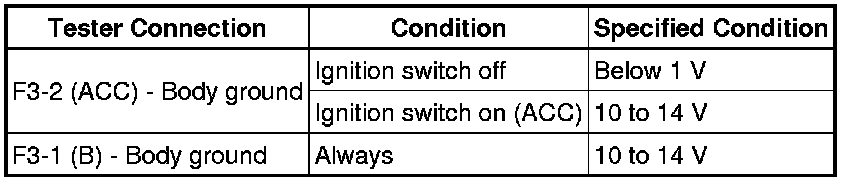

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





(c) Measure the resistance according to the value(s) in the table below.

Standard resistance:





HINT
If the value is not as specified, repair or replace the wire harness or connector.
