Removal

AIR CONDITIONING: AIR CONDITIONING PANEL: REMOVAL

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Removal

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Removal

3. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

5. REMOVE FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY (for Automatic Transaxle) Removal

6. REMOVE UPPER CONSOLE PANEL (for Manual Transaxle) Removal

7. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Removal

8. REMOVE UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Removal

9. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Removal

10. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Removal

11. REMOVE INSTRUMENT PANEL NO. 2 REGISTER ASSEMBLY Removal

12. REMOVE RADIO RECEIVER WITH HEATER CONTROL ASSEMBLY (for Manual Air Conditioning System) Removal

13. REMOVE NAVIGATION RECEIVER WITH HEATER CONTROL PANEL (for Automatic Air Conditioning System) Removal

14. REMOVE RADIO NO. 1 BRACKET (for Manual Air Conditioning System) Removal

15. REMOVE RADIO NO. 1 BRACKET (for Automatic Air Conditioning System) Removal

16. REMOVE RADIO NO. 2 BRACKET (for Manual Air Conditioning System) Removal

17. REMOVE RADIO NO. 2 BRACKET (for Automatic Air Conditioning System) Removal

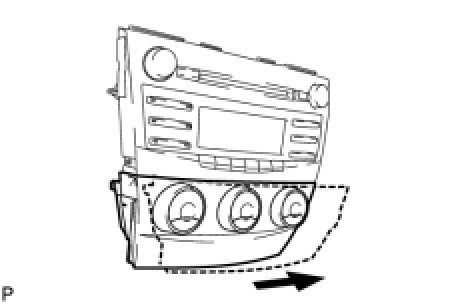

18. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Manual Air Conditioning System)

(a) Remove the air conditioning control assembly as shown in the illustration.

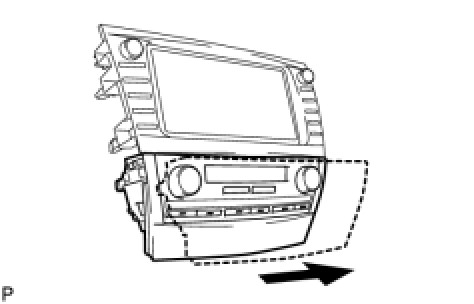

19. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

(a) Remove the air conditioning control assembly as shown in the illustration.
