Disassembly

AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

1. REMOVE AIR DUCT SUB-ASSEMBLY (for TMC Made)

(a) Release the 4 claws and remove the air duct sub-assembly.





2. REMOVE AIR FILTER COVER PLATE (for TMC Made)

(a) Release the 2 claws and remove the air filter cover plate.





3. REMOVE CLEAN AIR FILTER (for TMC Made)

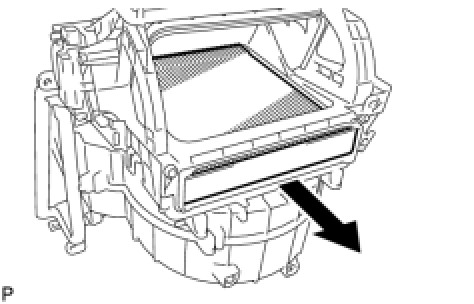

(a) Remove the clean air filter as shown in the illustration.





4. REMOVE AIR INLET SERVO MOTOR (for TMC Made)

(a) Remove the 3 screws and air inlet servo motor.





5. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY (for TMC Made)

(a) Remove the 3 screws and blower with fan motor sub-assembly.





6. REMOVE AIR DUCT SUB-ASSEMBLY (for TMMK Made)

(a) Disengage the 4 claws and then remove the air duct sub-assembly.





7. REMOVE AIR FILTER COVER PLATE (for TMMK Made)

(a) Release the 2 claws and remove the air filter cover plate.





8. REMOVE CLEAN AIR FILTER (for TMMK Made)

(a) Remove the clean air filter as shown in the illustration.





9. REMOVE AIR INLET SERVO MOTOR (for TMMK Made)

(a) Remove the 3 screws and air inlet servo motor.





10. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY (for TMMK Made)

(a) Remove the 3 screws and blower with fan motor sub-assembly.
