Removal

2AR-FE ENGINE MECHANICAL: FRONT CRANKSHAFT OIL SEAL: REMOVAL

1. REMOVE FRONT WHEEL RH

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

3. REMOVE ENGINE UNDER COVER RH

4. REMOVE FRONT FENDER APRON SEAL RH

5. REMOVE V-RIBBED BELT (for Vane Pump) Removal

6. REMOVE V-RIBBED BELT (for Compressor and Generator) Removal

7. REMOVE CRANKSHAFT PULLEY

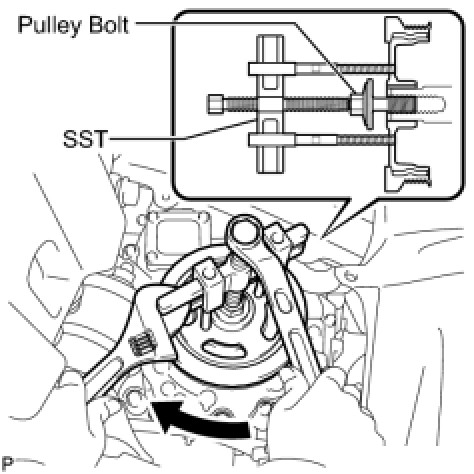

(a) Using SST, hold the crankshaft pulley and loosen the pulley bolt. Further loosen the bolt until 2 or 3 threads are screwed into the crankshaft.





SST : 09213-54015

SST : 09330-00021

SST : 91551-80650

(b) Using SST and the pulley bolt, remove the crankshaft pulley.





SST : 09950-50013

09951-05010

09952-05010

09953-05020

09954-05011

HINT
Apply a lubricant to the threads and end of SST.

8. REMOVE TIMING CHAIN COVER OIL SEAL

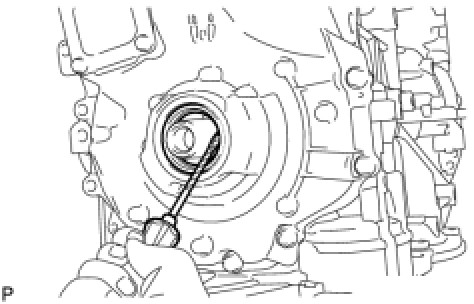

(a) Using a screwdriver, pry out the oil seal.





HINT
Tape the screwdriver tip before use.

NOTICE:
Do not damage the surface of the oil seal press fit hole or the crankshaft.
