Radiator Cooling Fan Motor: Testing and Inspection

2AR-FE COOLING: COOLING FAN MOTOR: ON-VEHICLE INSPECTION

1. COOLING FAN MOTOR

(a) Check that the motor operates smoothly when the battery is connected to the fan motor connector.





(b) Measure the current while the motor is operating.

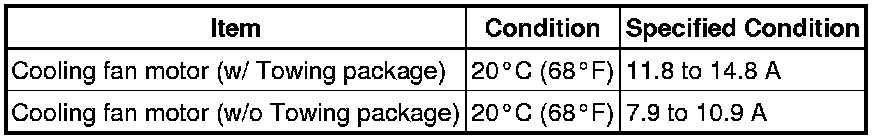

Standard Current:





If the result is not as specified, replace the cooling fan motor.

2. NO. 2 COOLING FAN MOTOR

(a) Check that the motor operates smoothly when the battery is connected to the fan motor connector.





(b) Measure the current while the motor is operating.

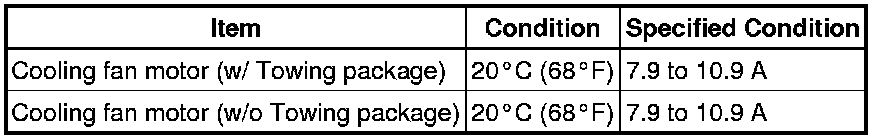

Standard Current:





If the result is not as specified, replace the No. 2 cooling fan motor.
