Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio)

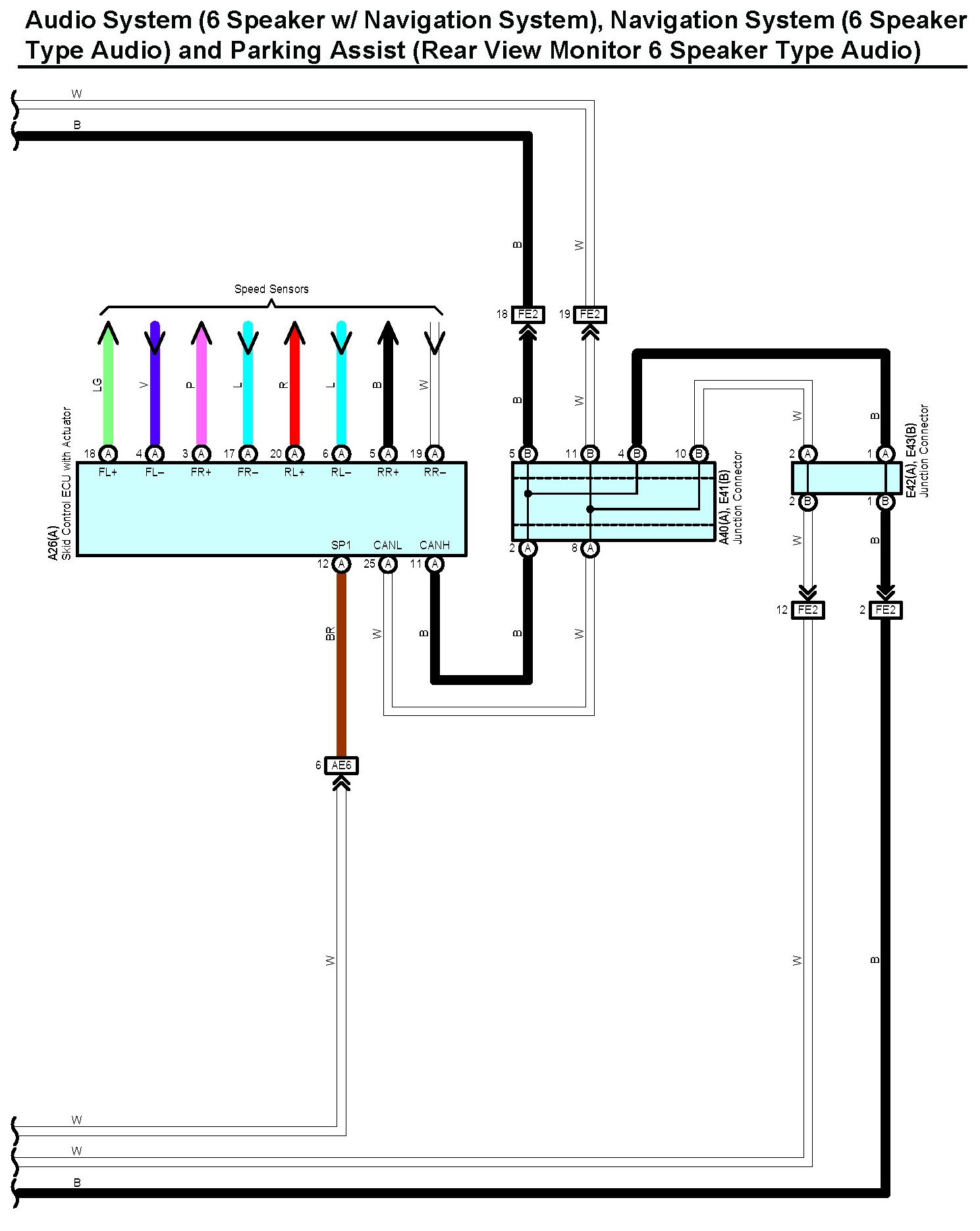

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio) Part 1:

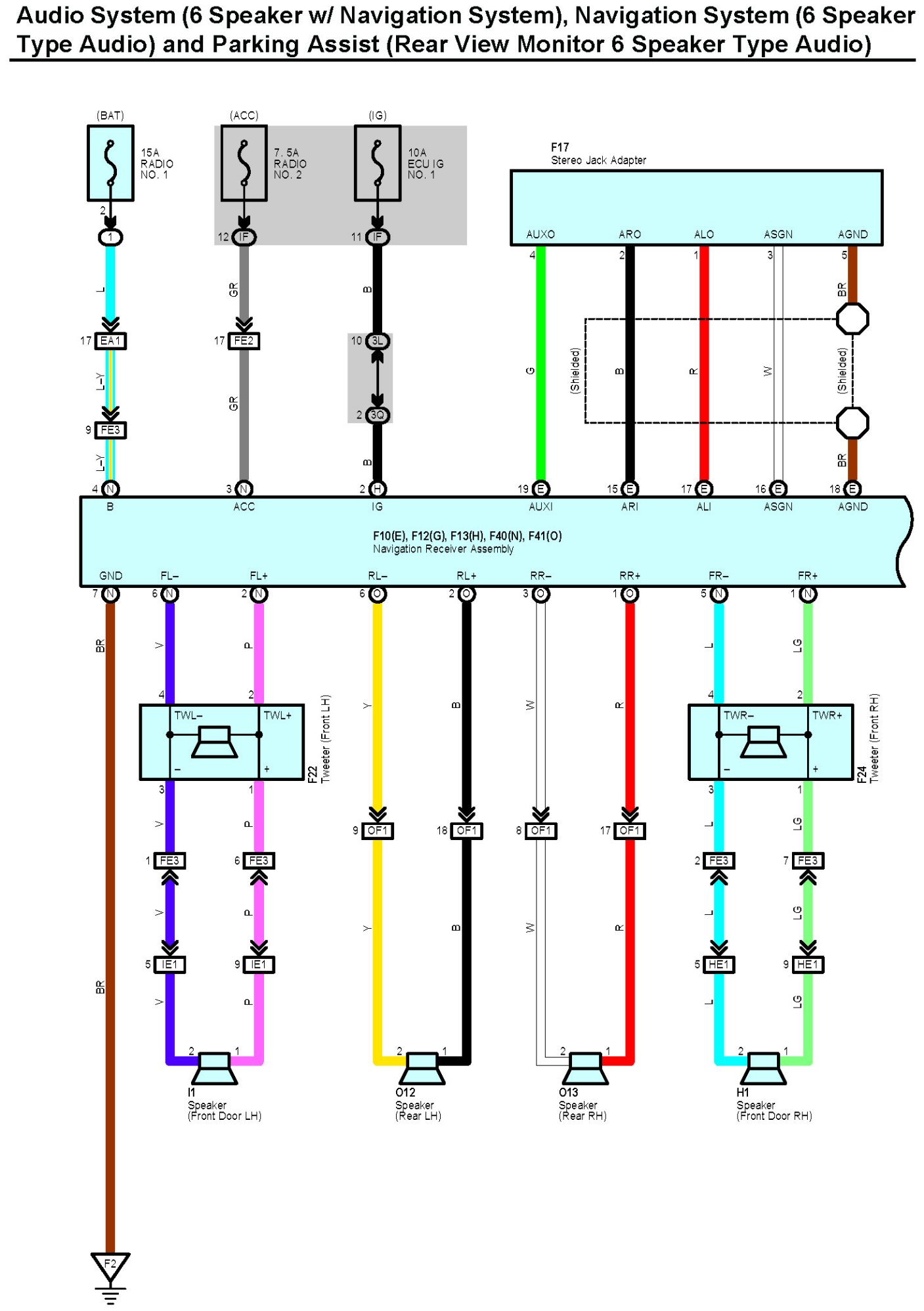

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio) Part 2:

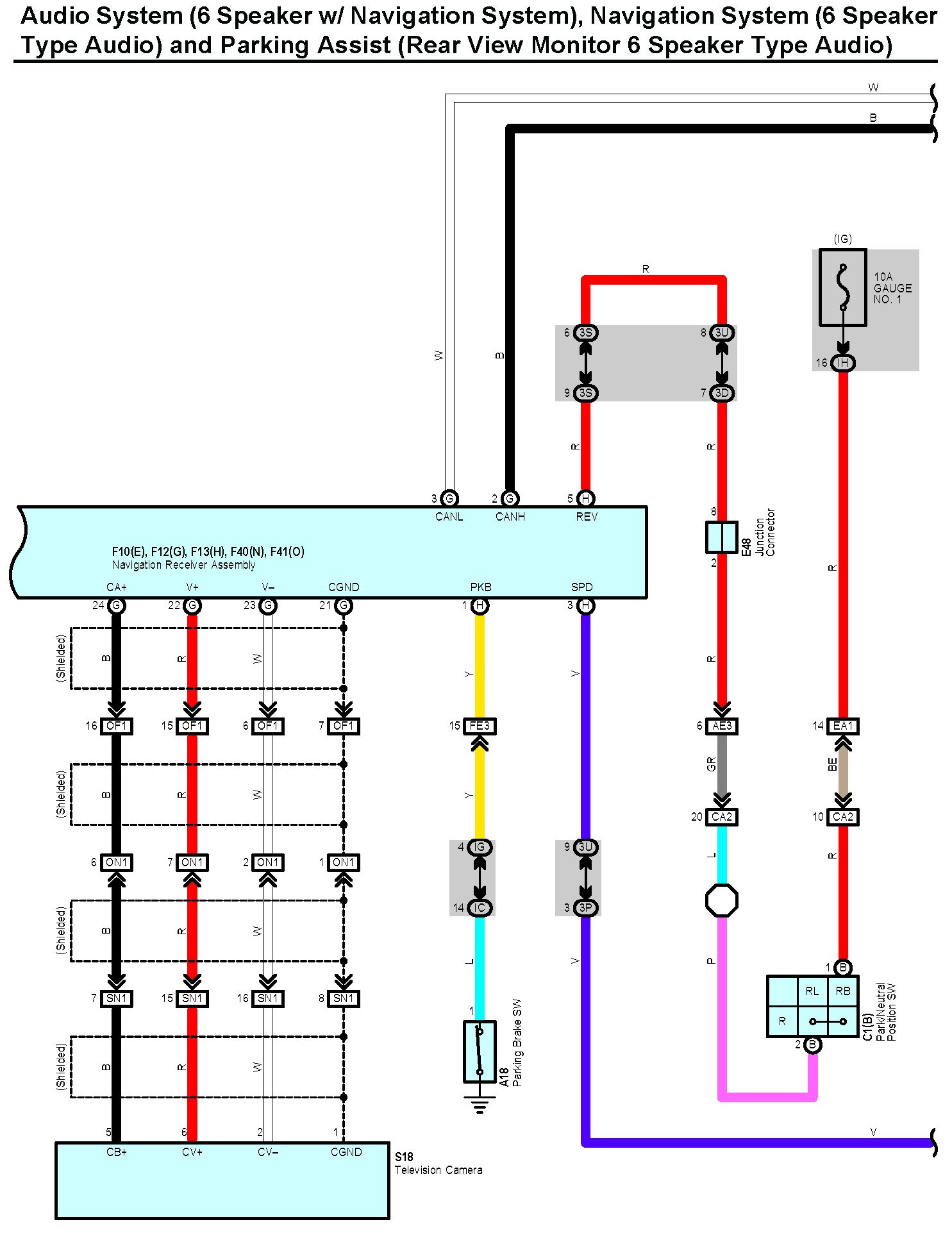

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio) Part 3:

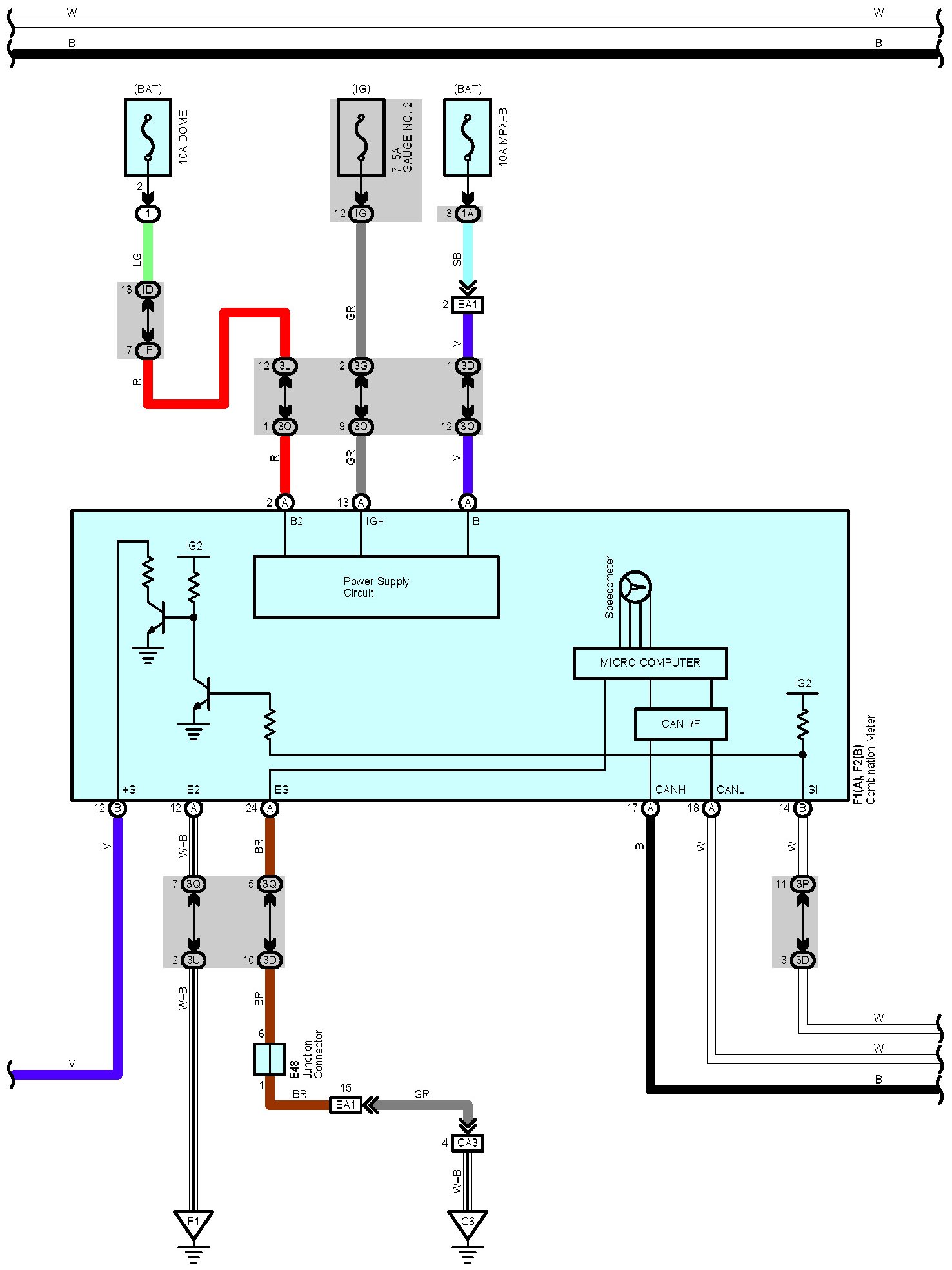

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio) Part 4:

Audio System (6 Speaker w/ Navigation System), Navigation System (6 Speaker Type Audio) and Parking Assist (Rear View Monitor 6 Speaker Type Audio) Part 5:

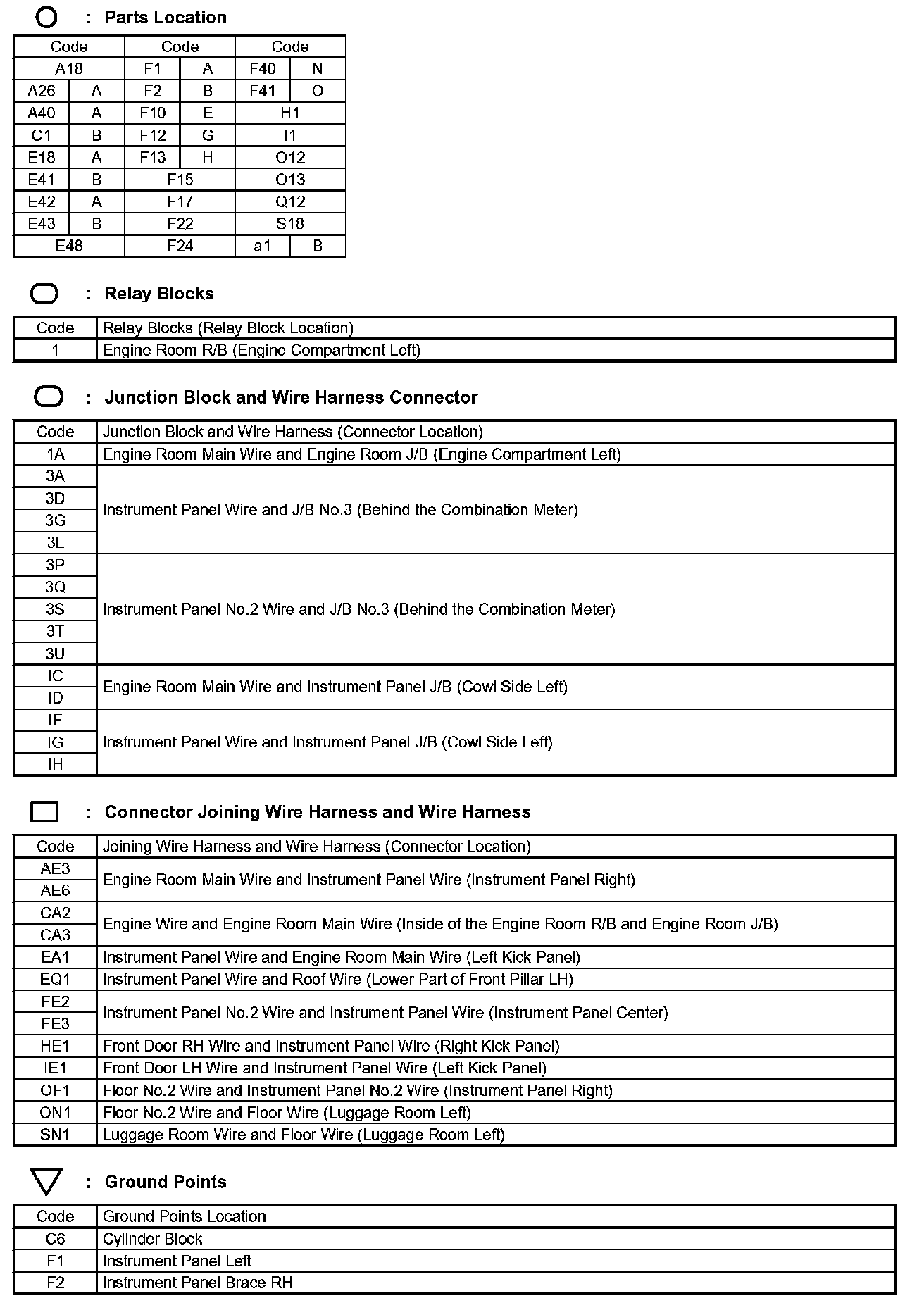

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
