Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio)

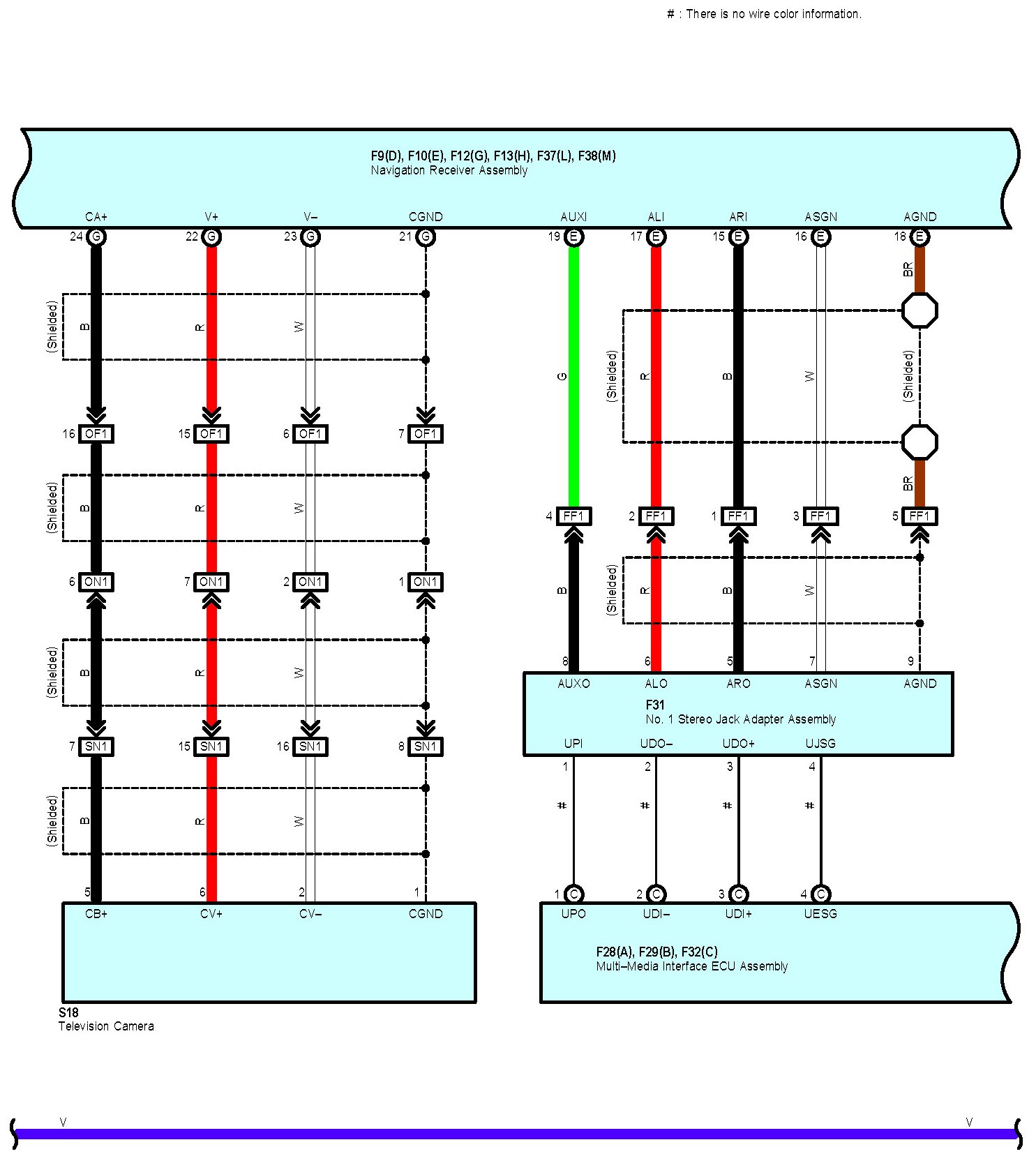

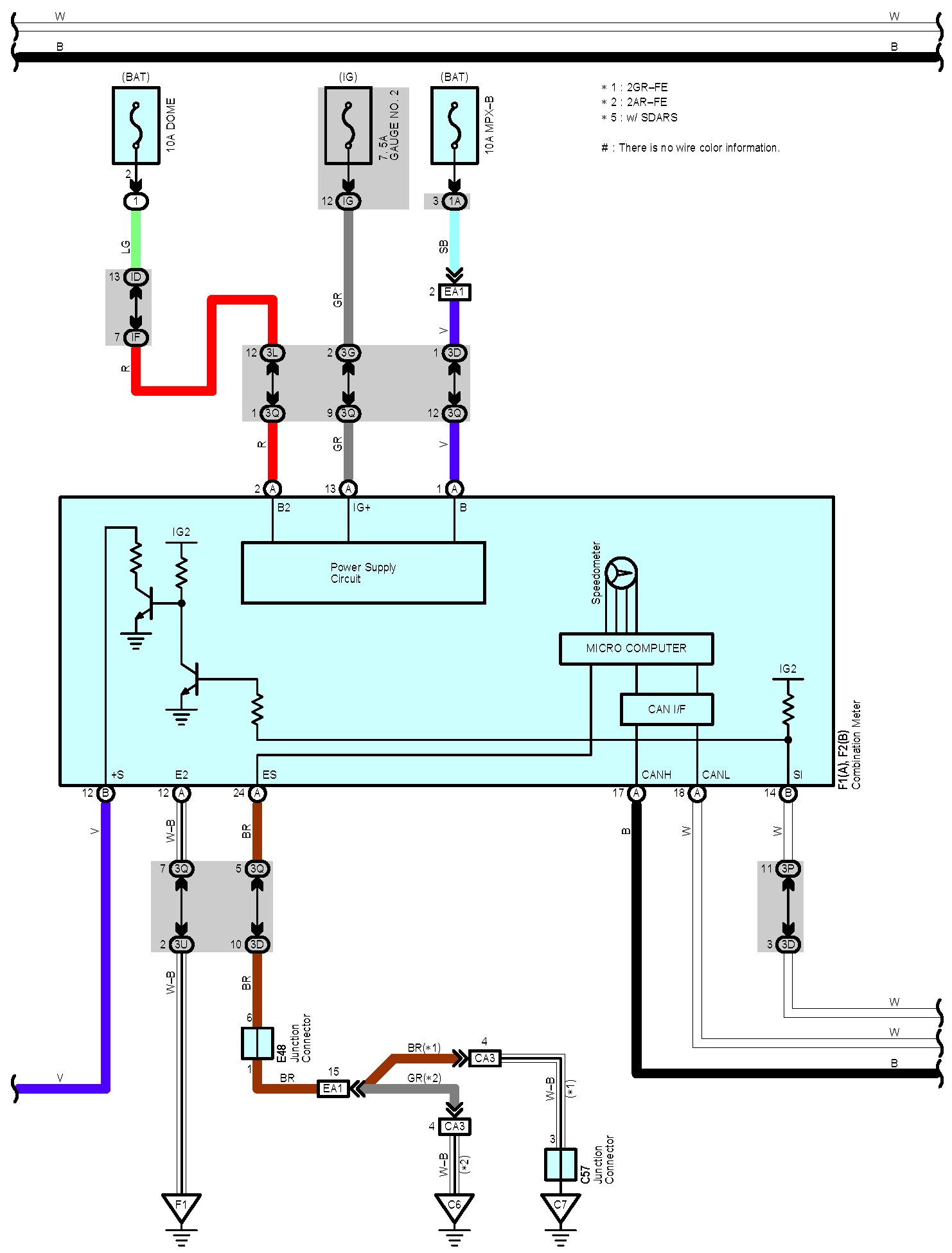

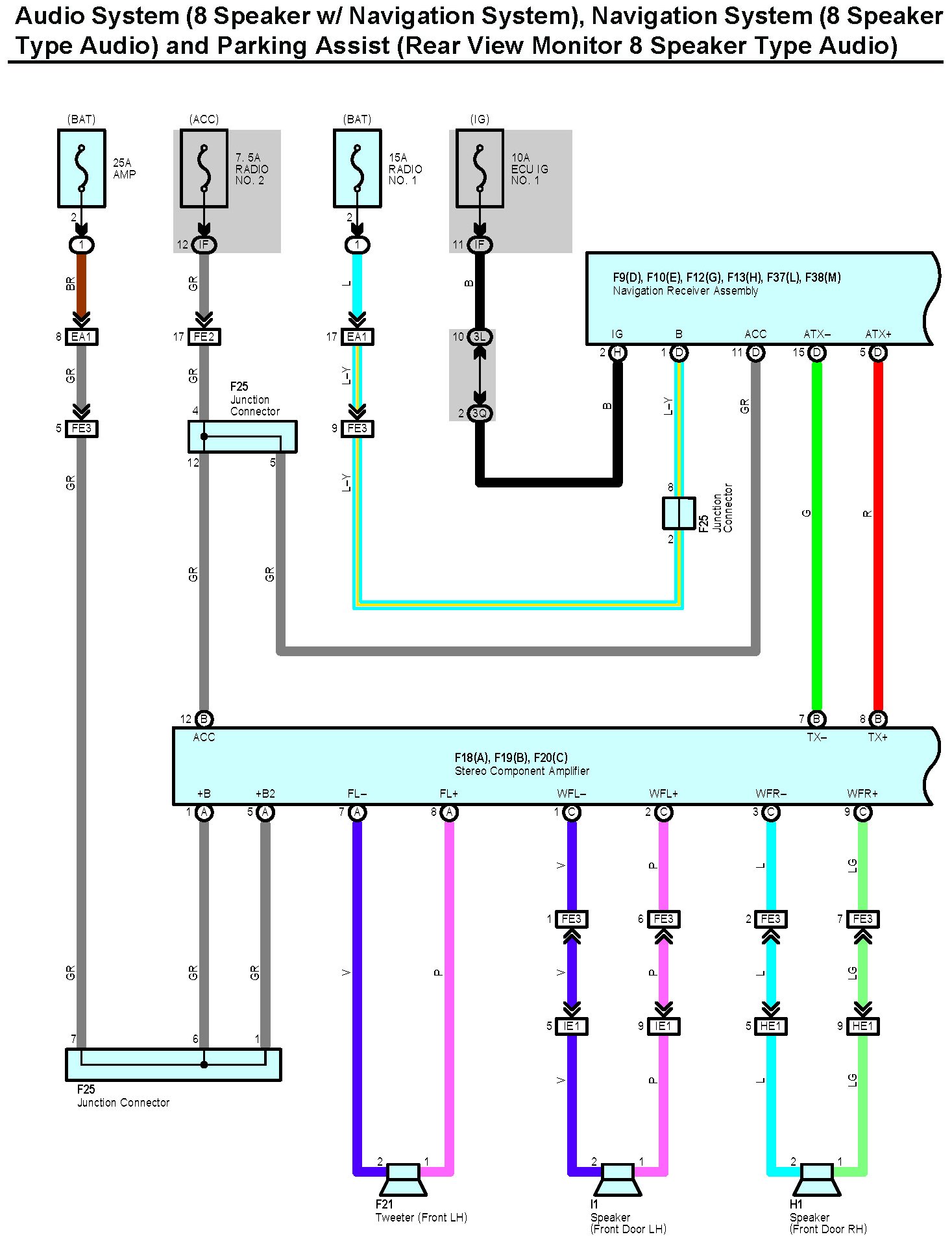

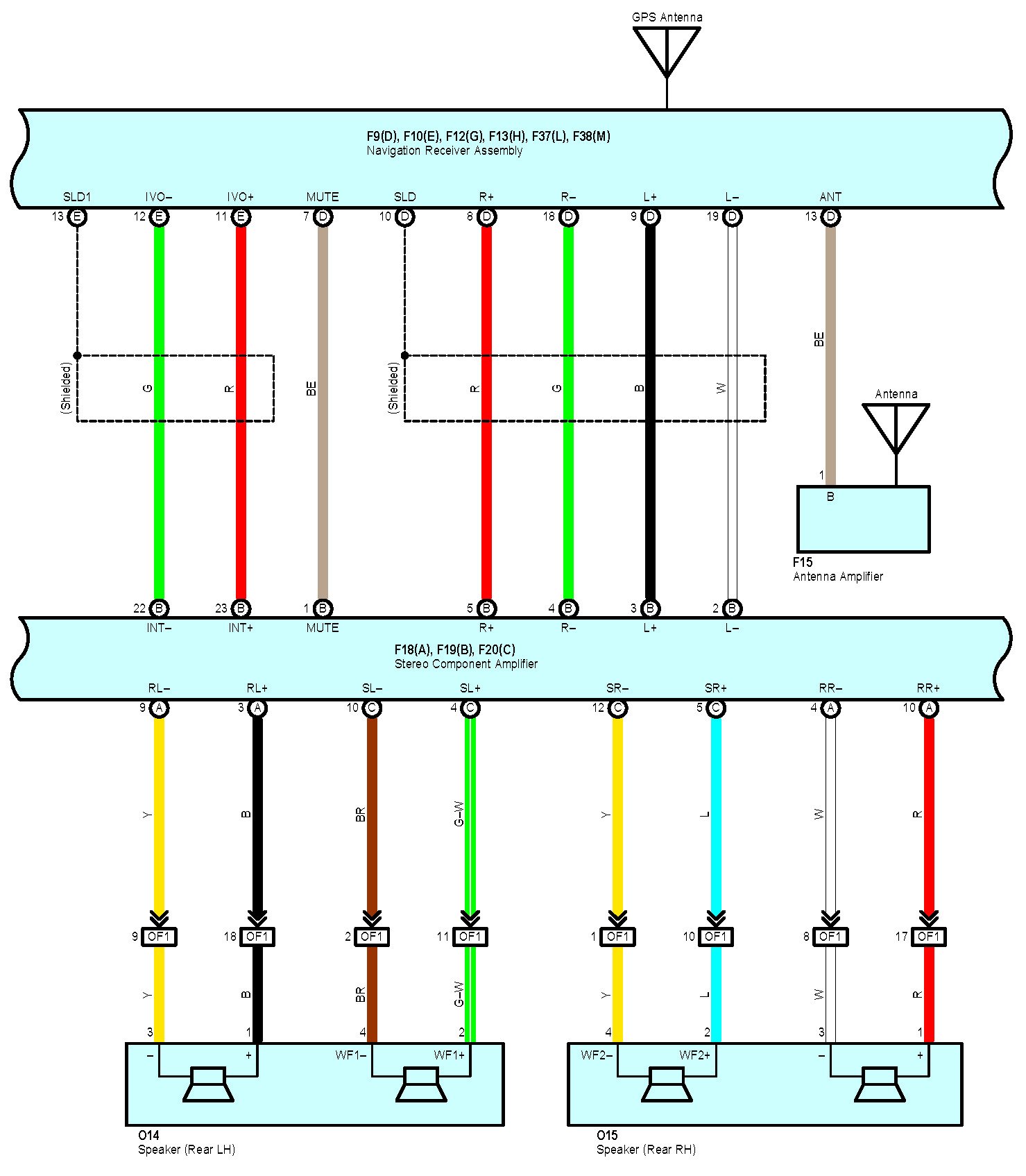

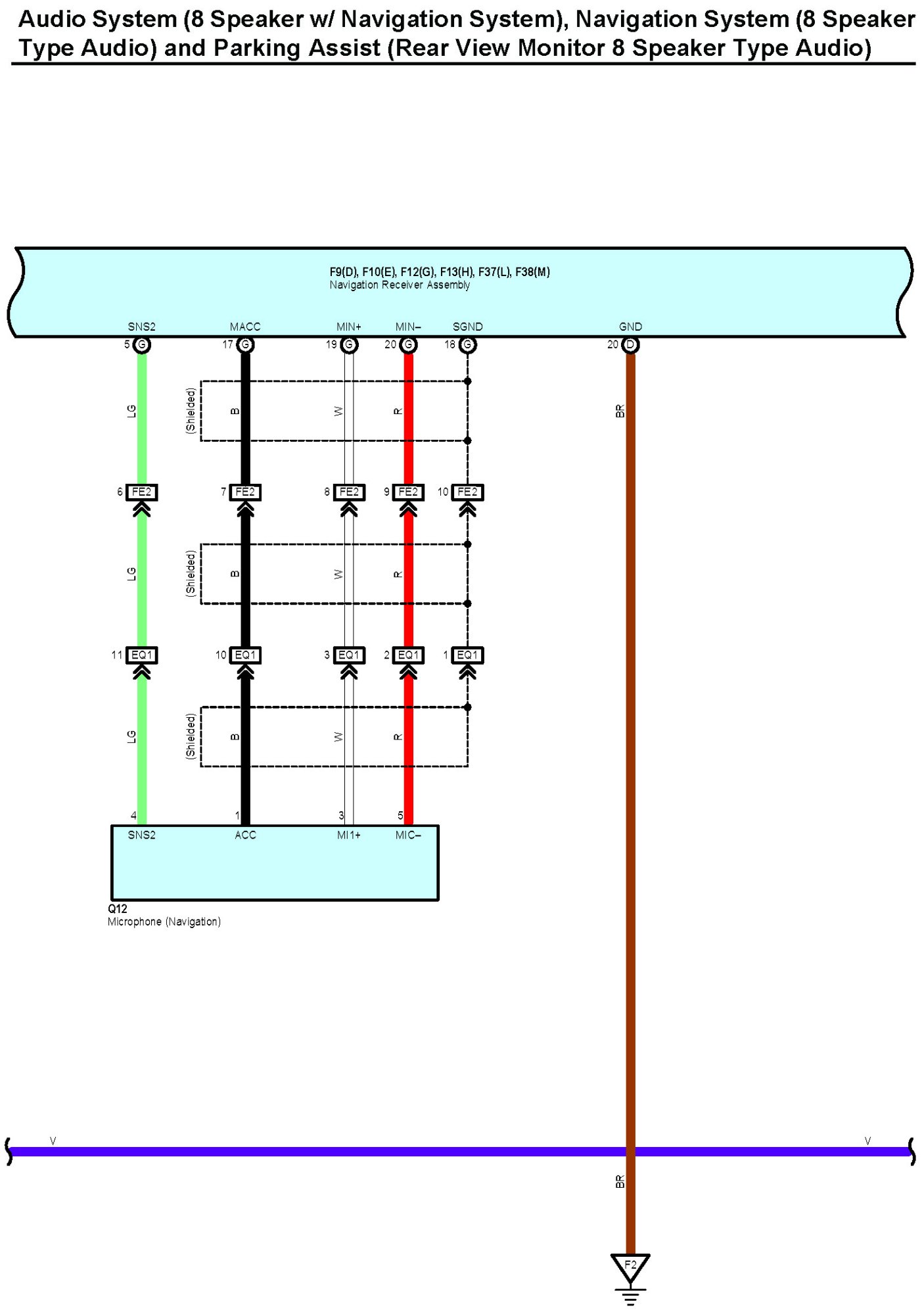

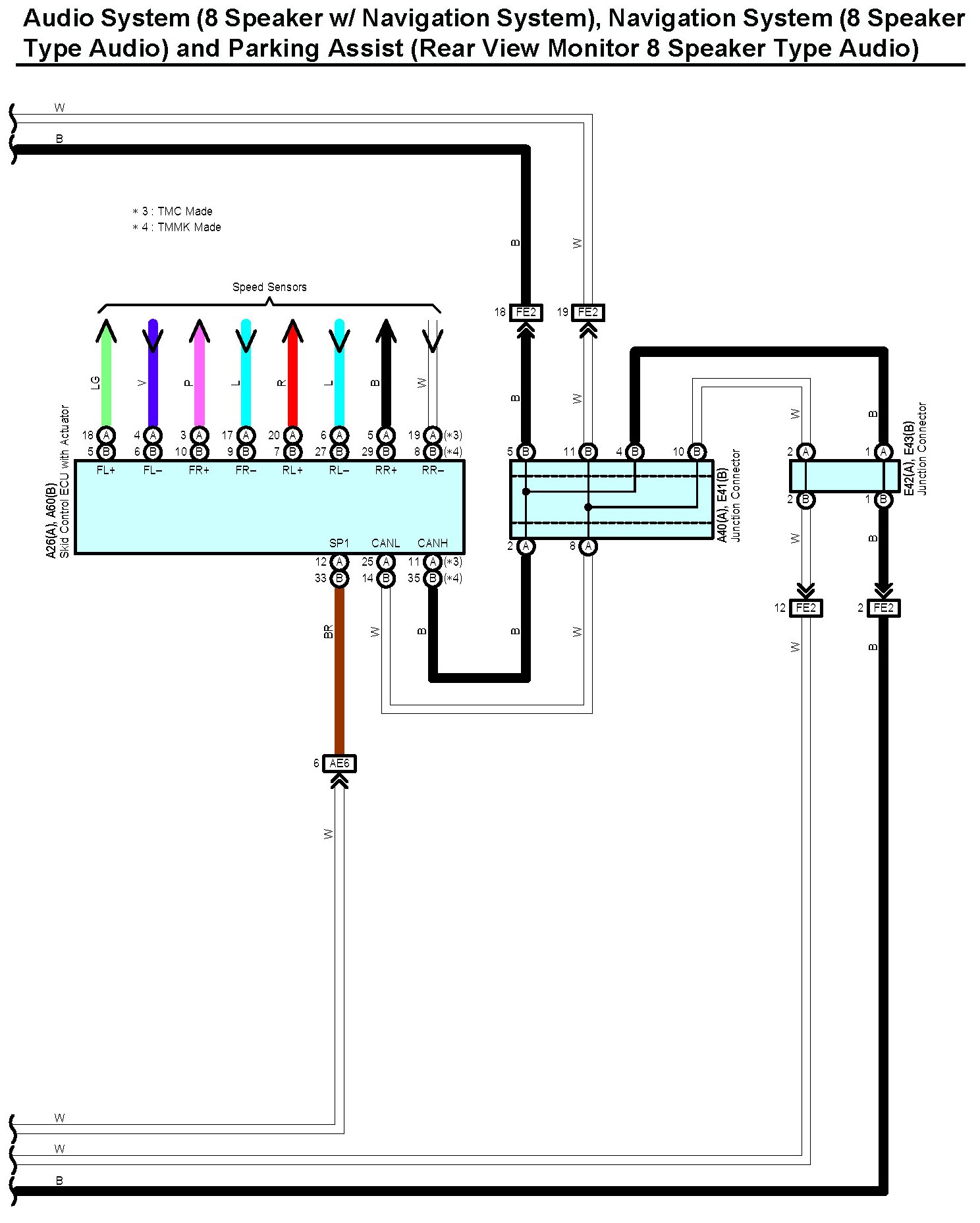

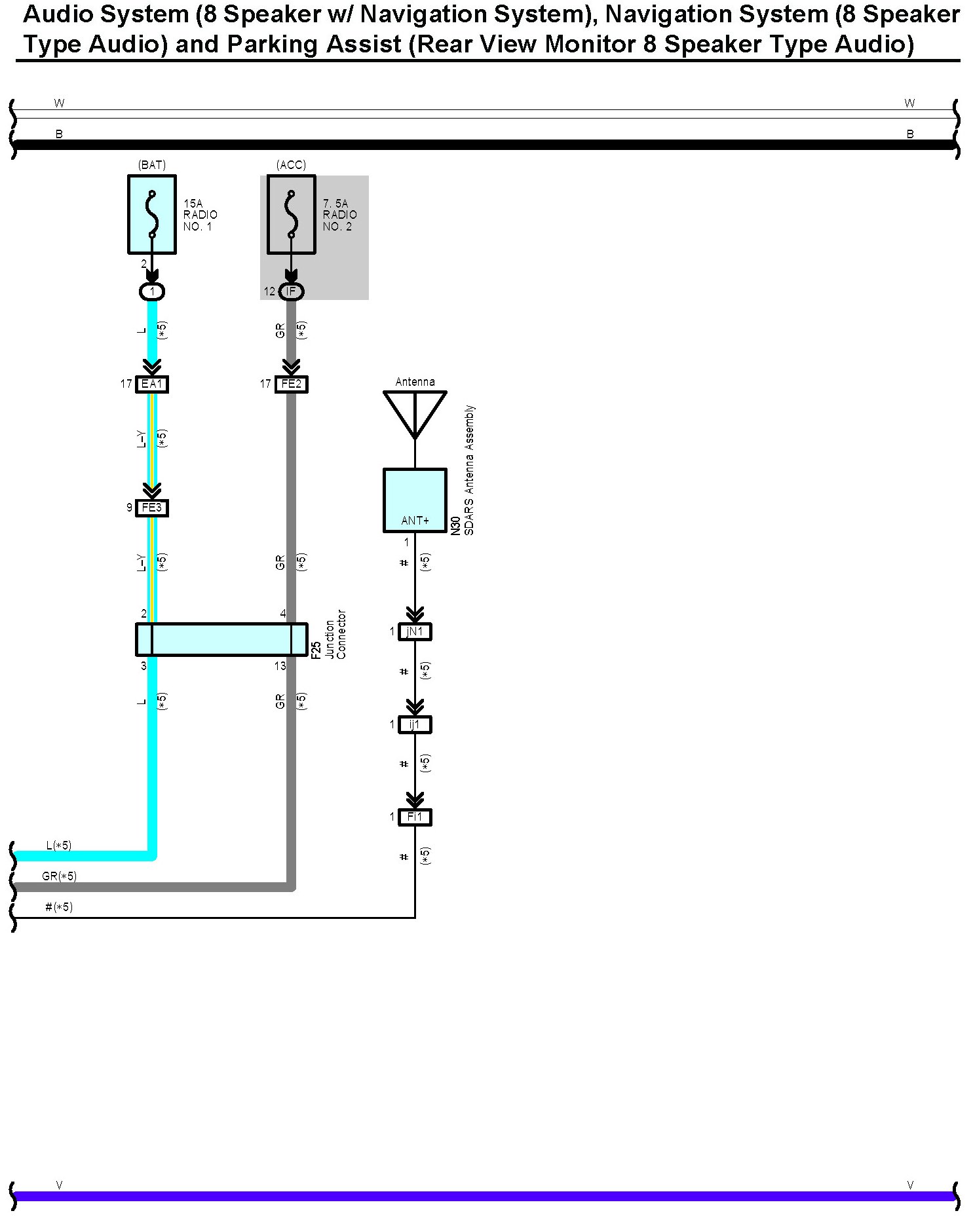

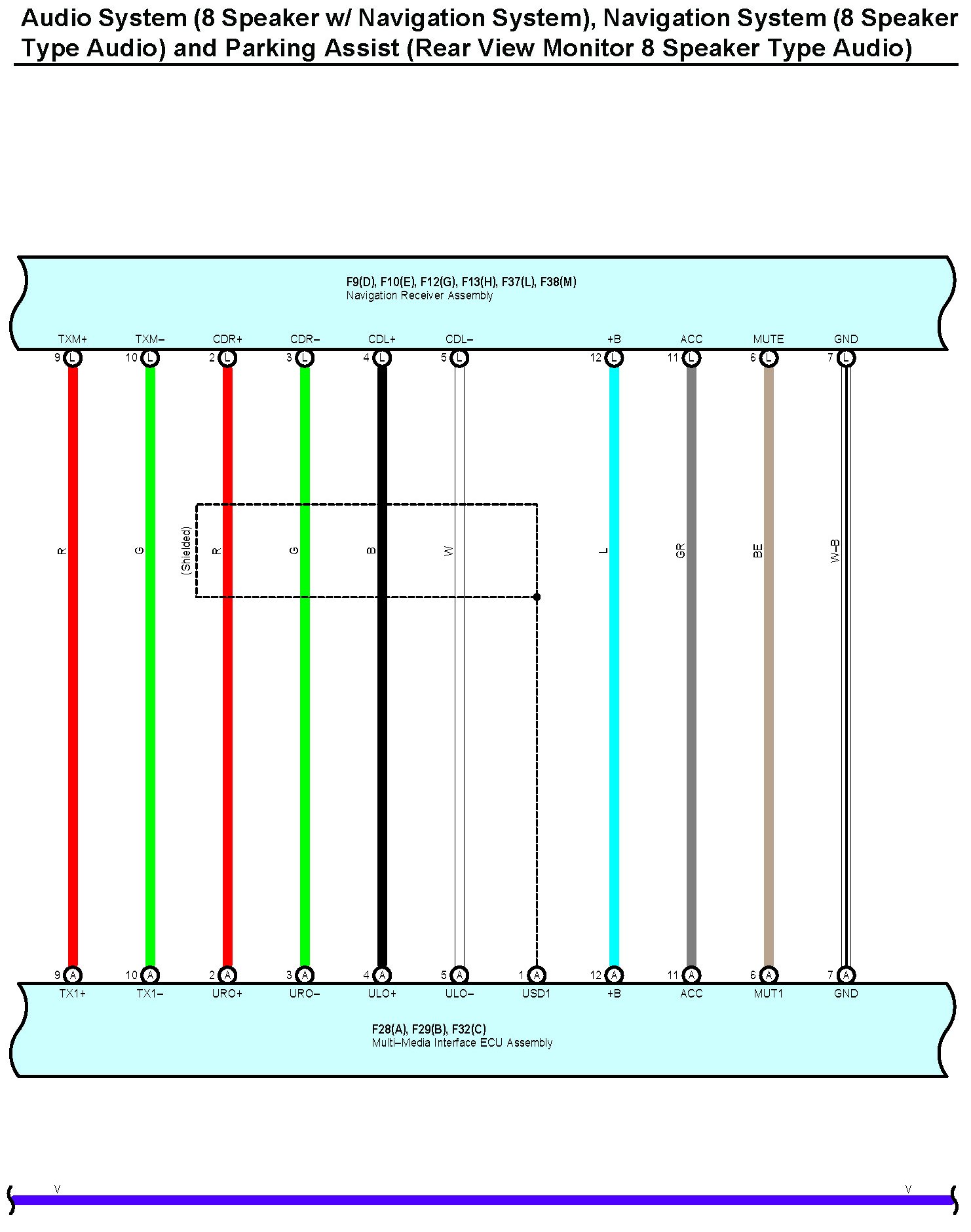

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 1:

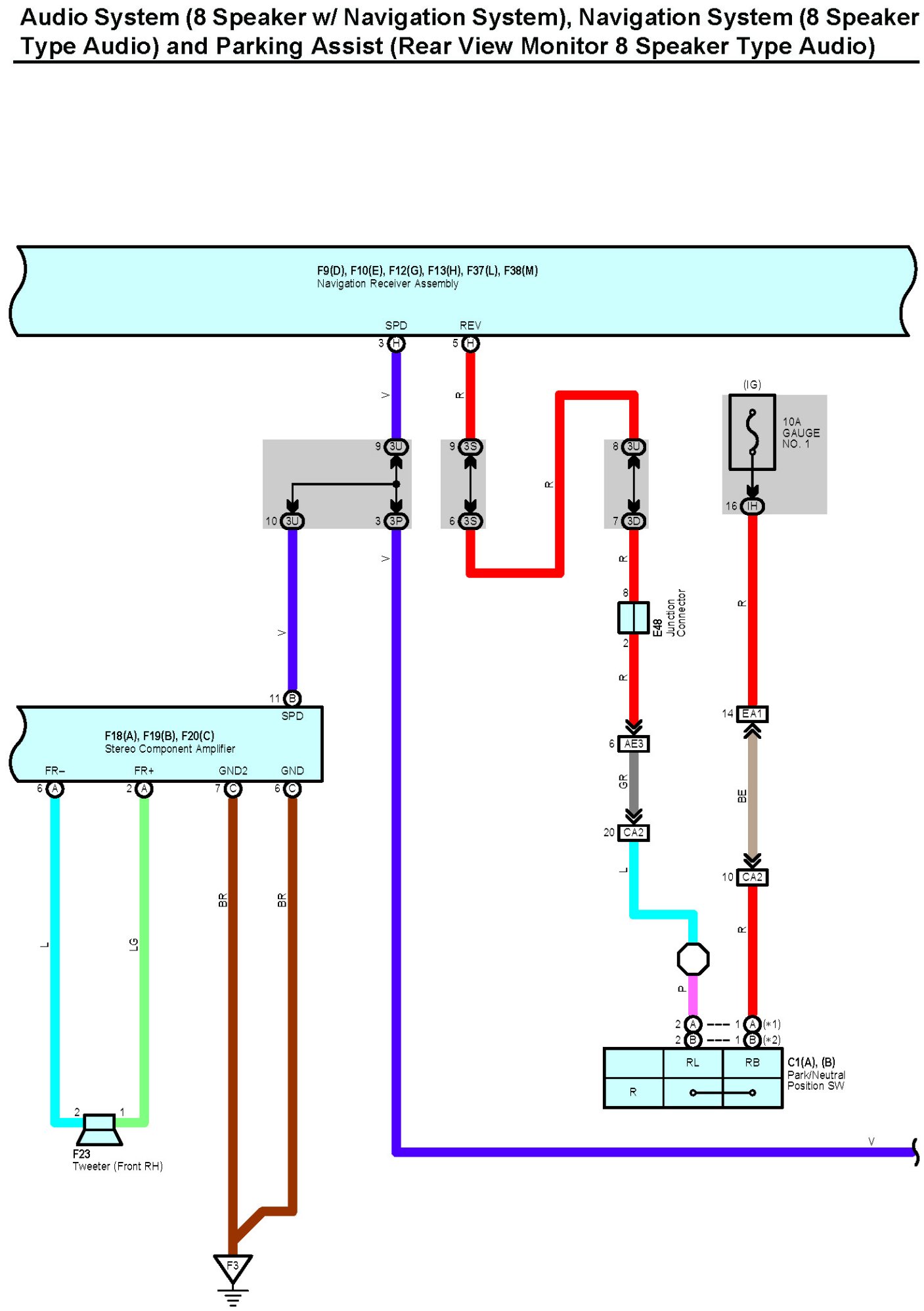

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 2:

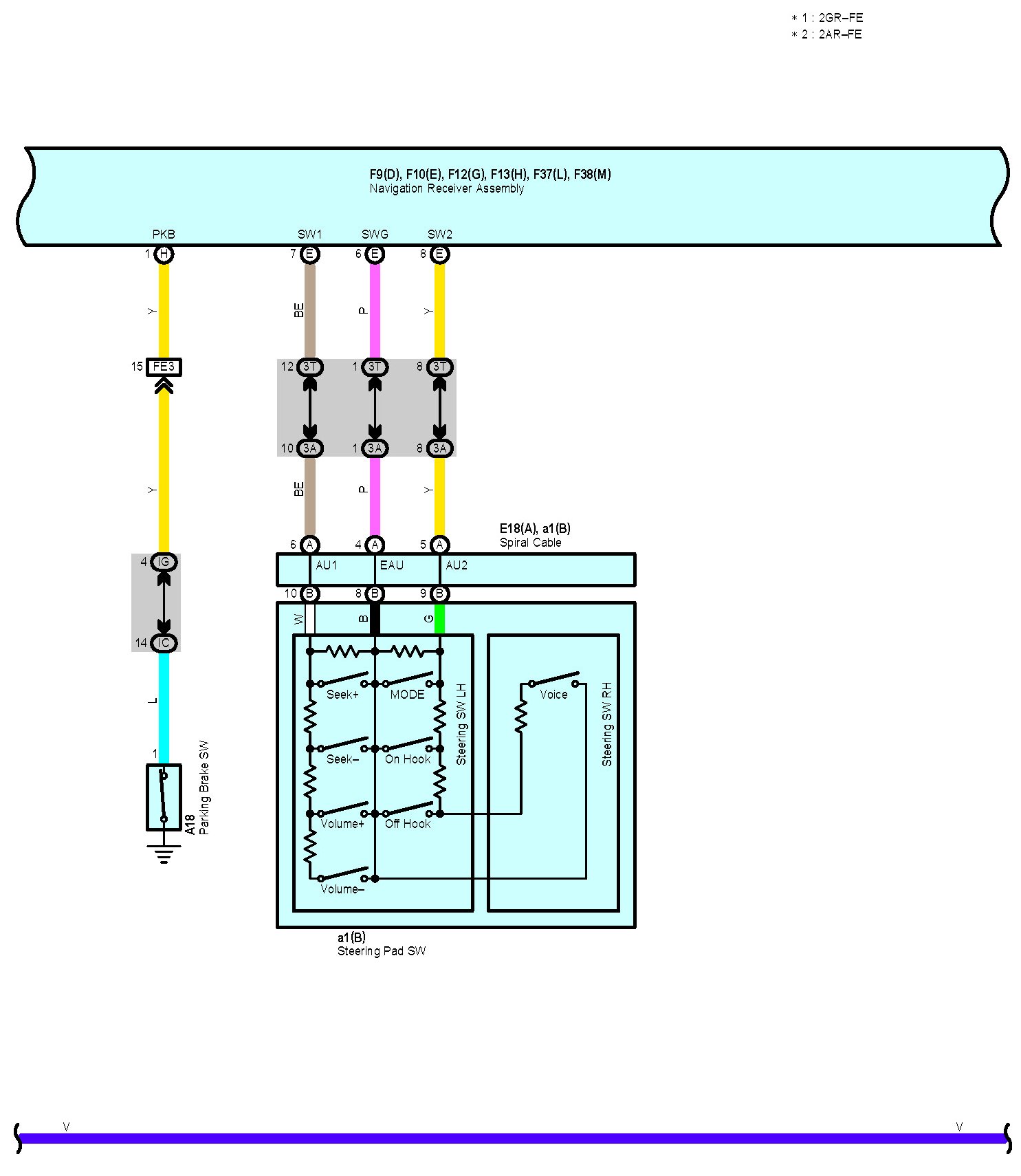

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 3:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 4:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 5:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 6:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 7:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 8:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 9:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 10:

Audio System (8 Speaker w/ Navigation System), Navigation System (8 Speaker Type Audio) and Parking Assist (Rear View Monitor 8 Speaker Type Audio) Part 11:

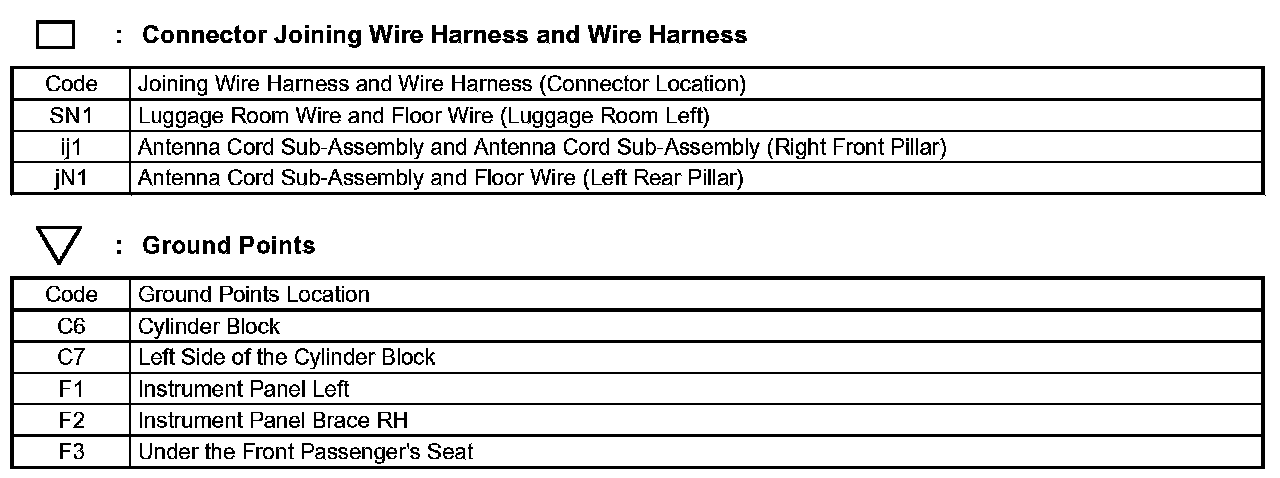

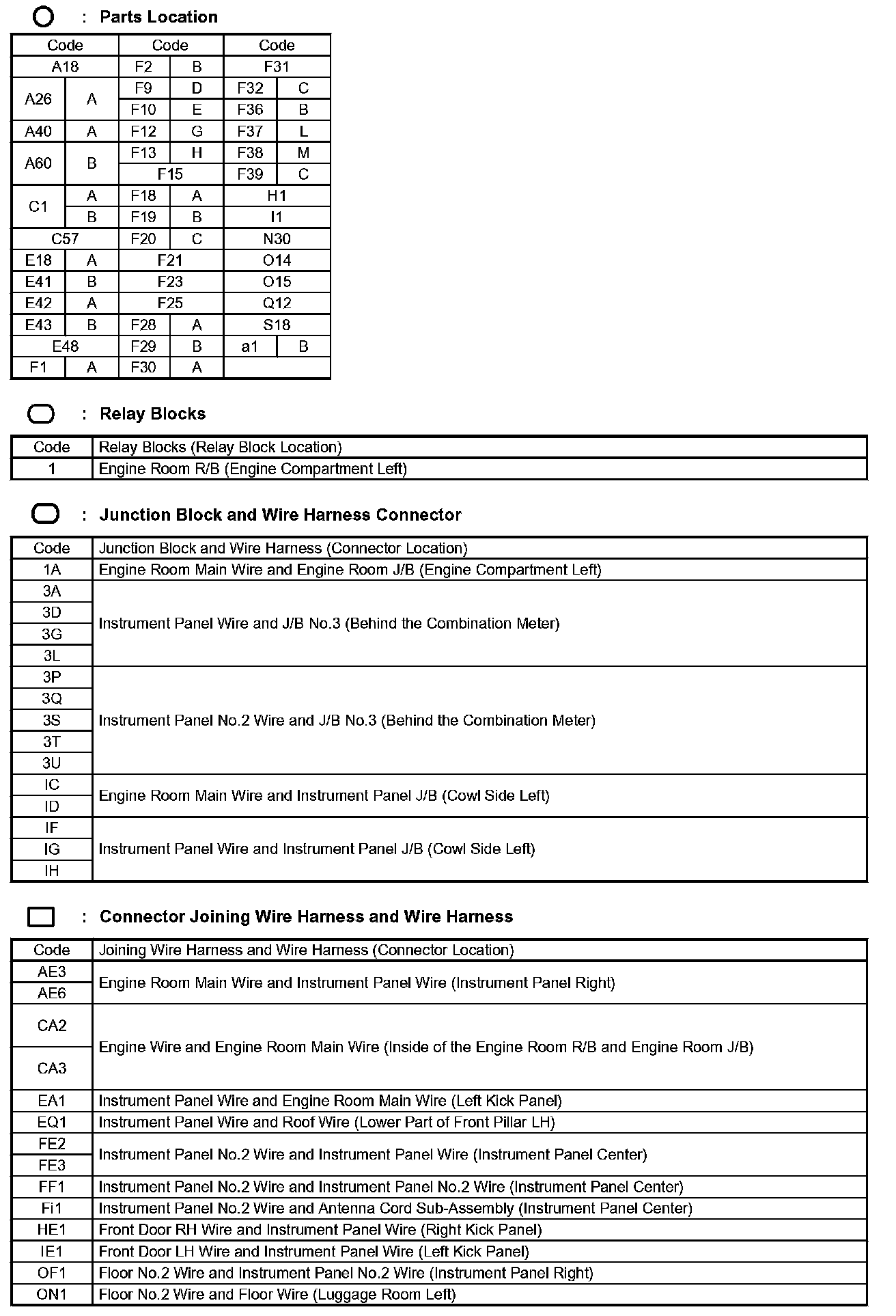

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
