ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made)

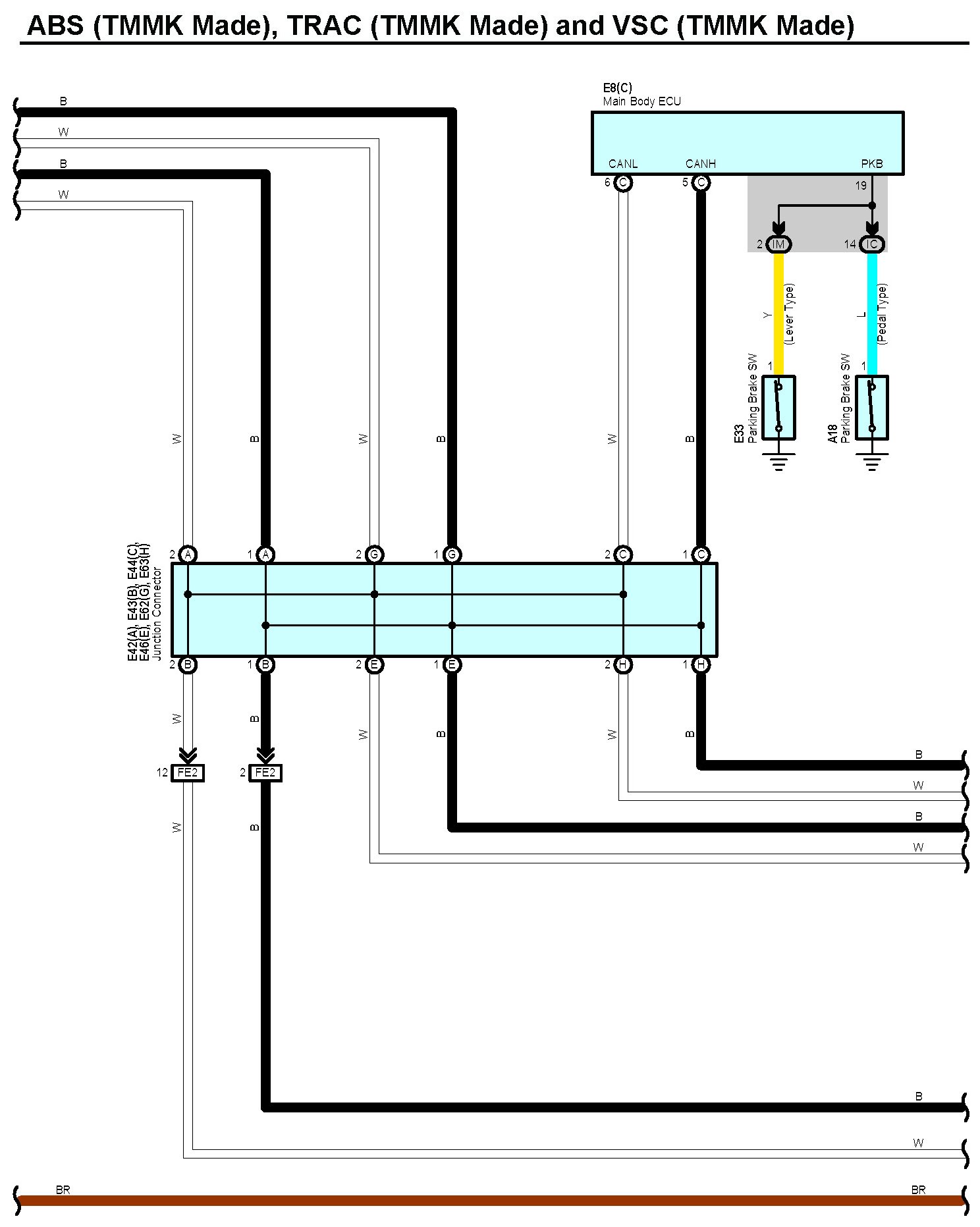

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 1:

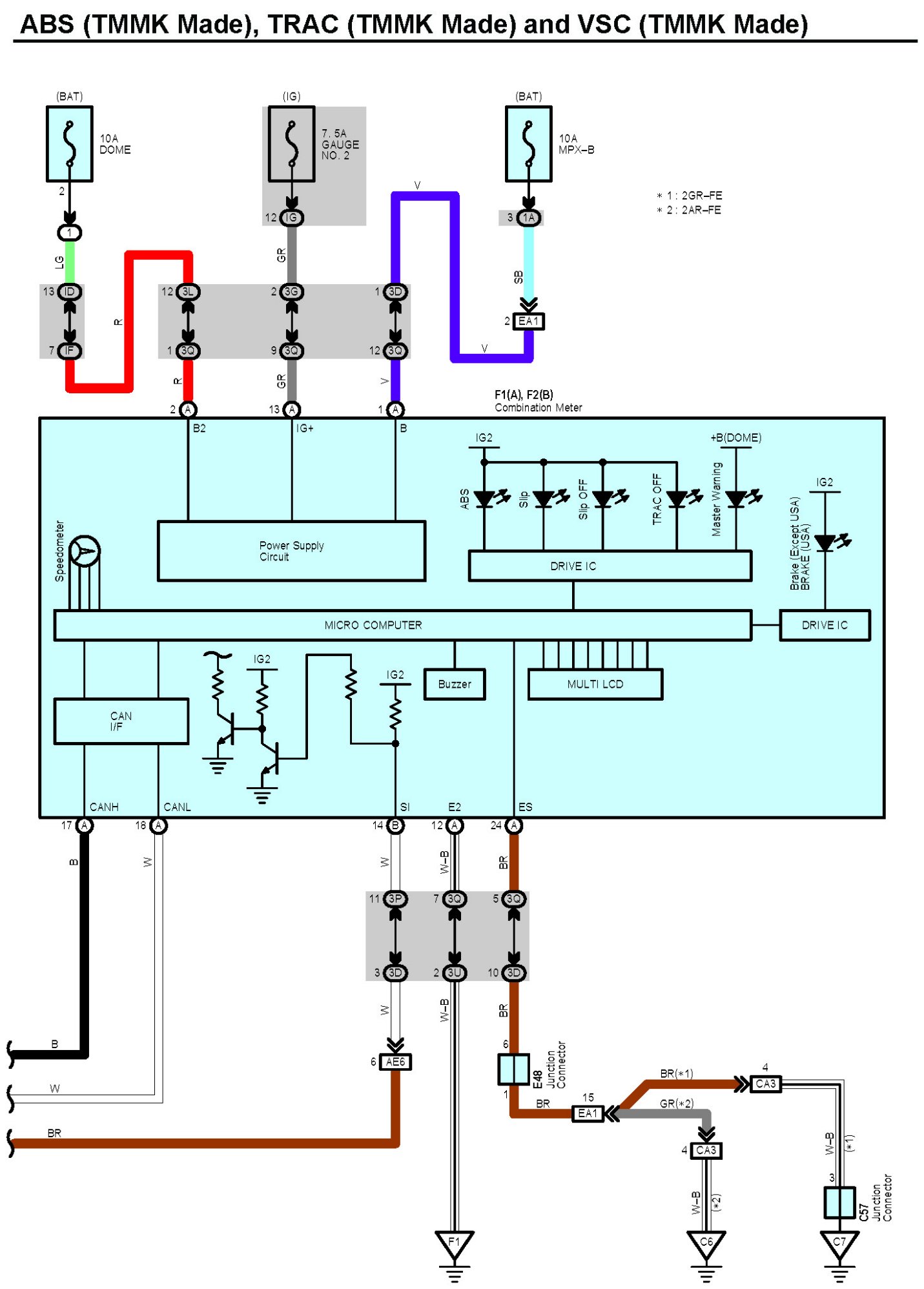

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 2:

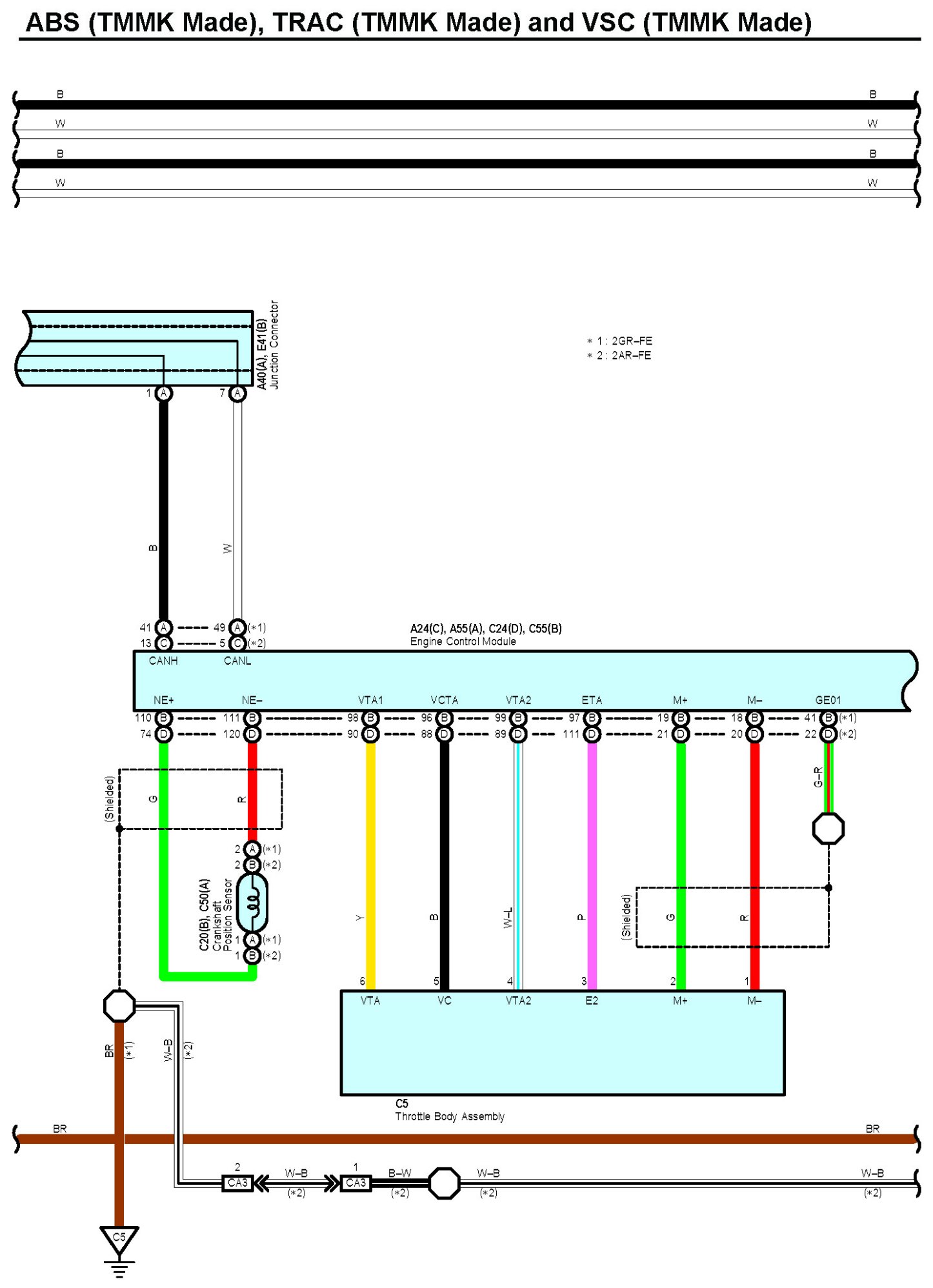

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 3:

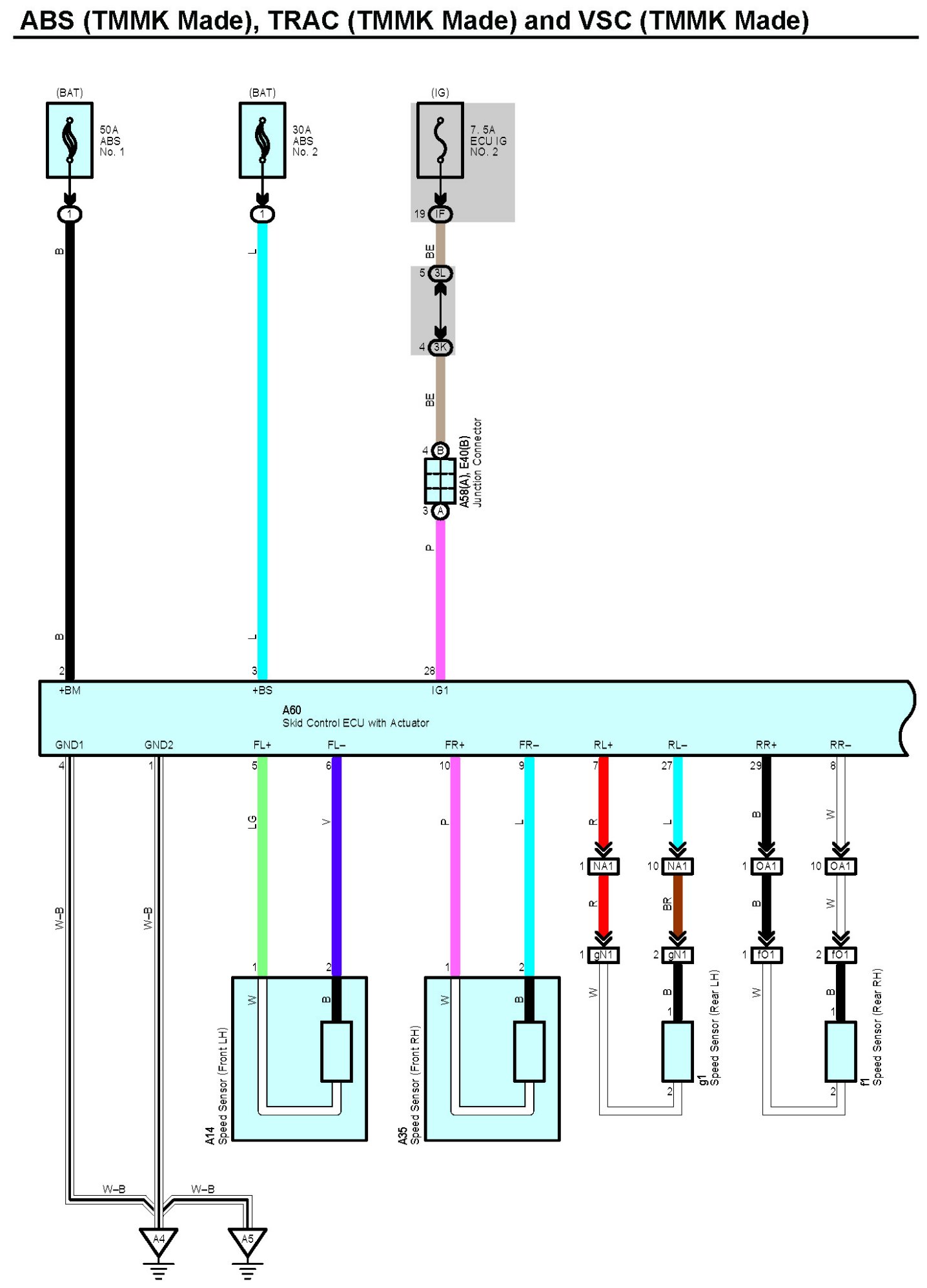

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 4:

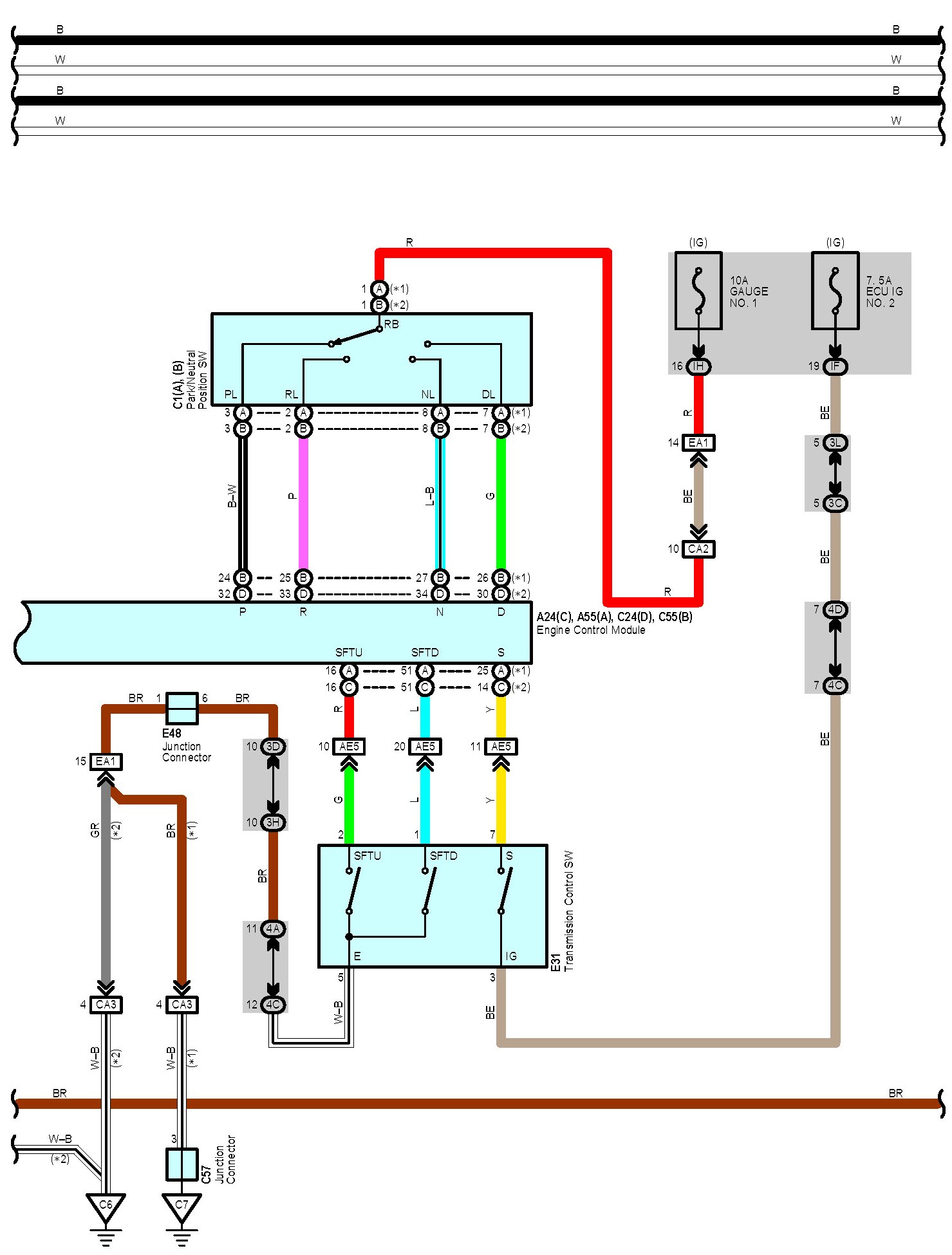

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 5:

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 6:

ABS (TMMK Made), TRAC (TMMK Made) and VSC (TMMK Made) Part 7:

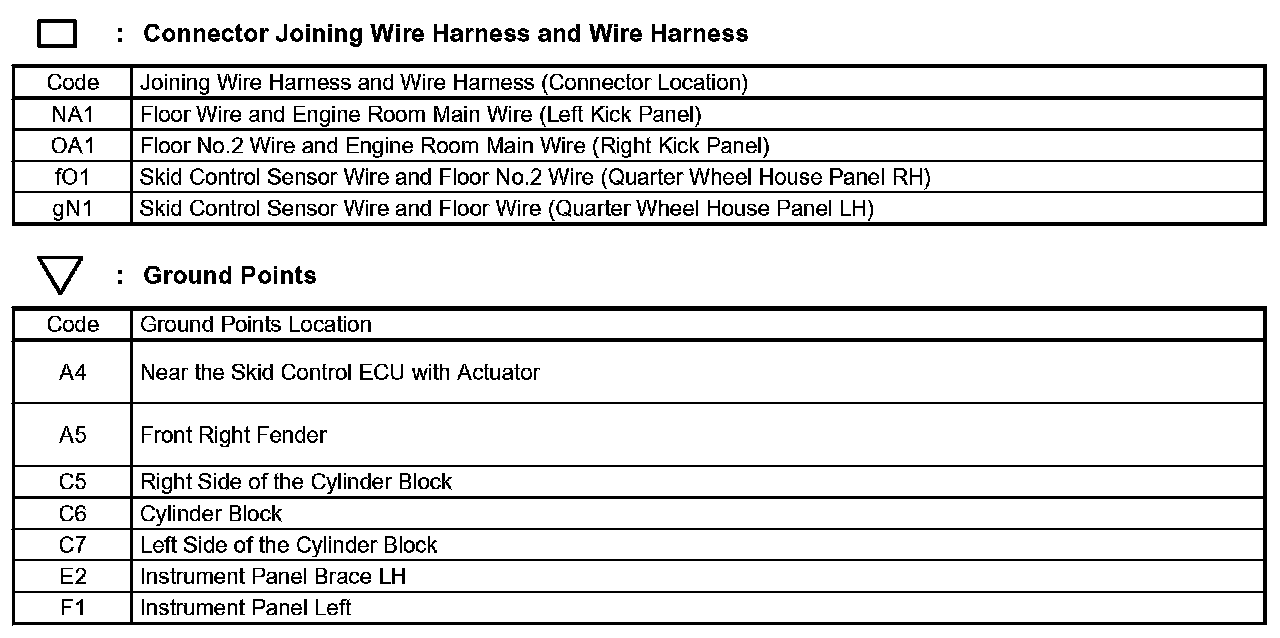

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
