ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made)

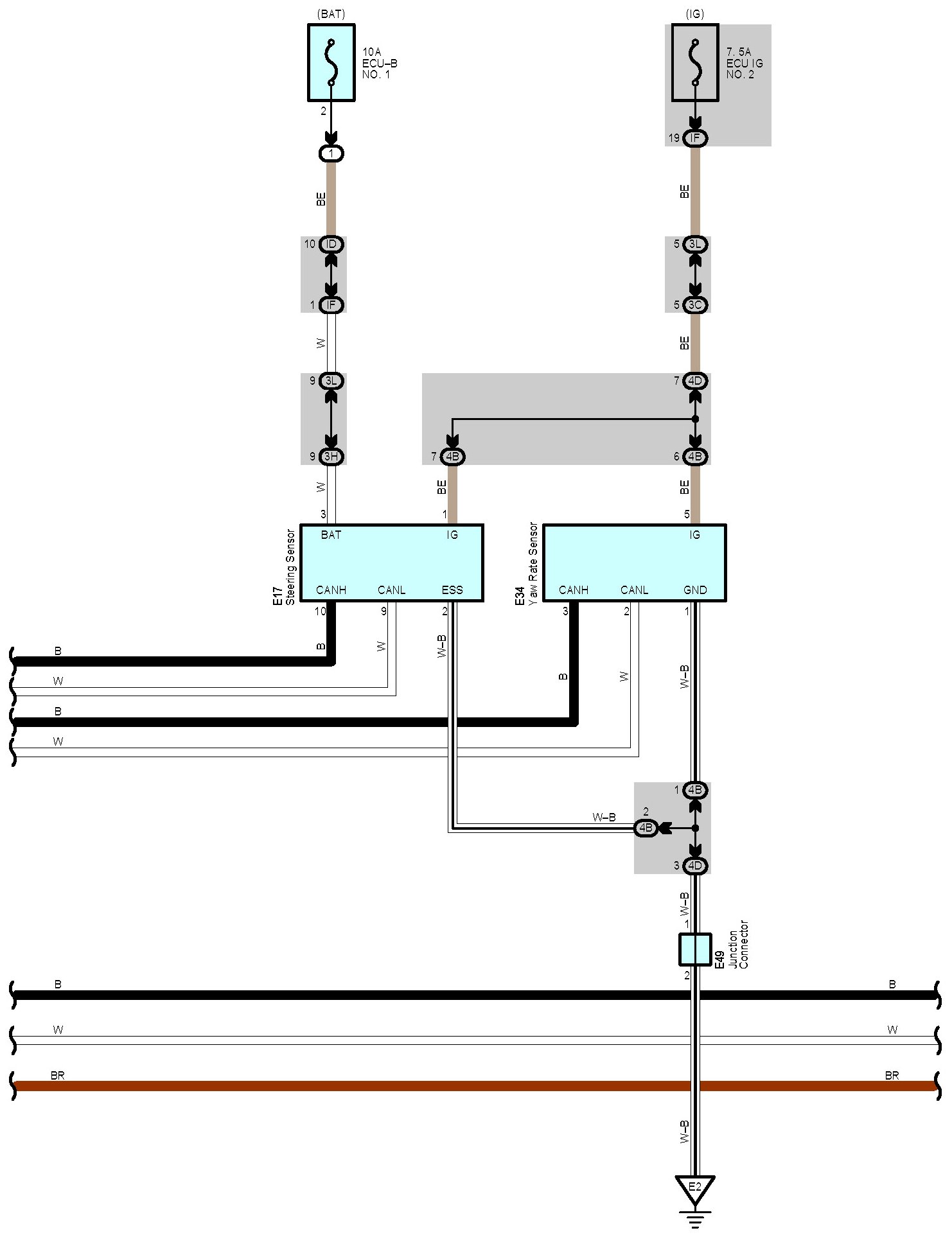

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 1:

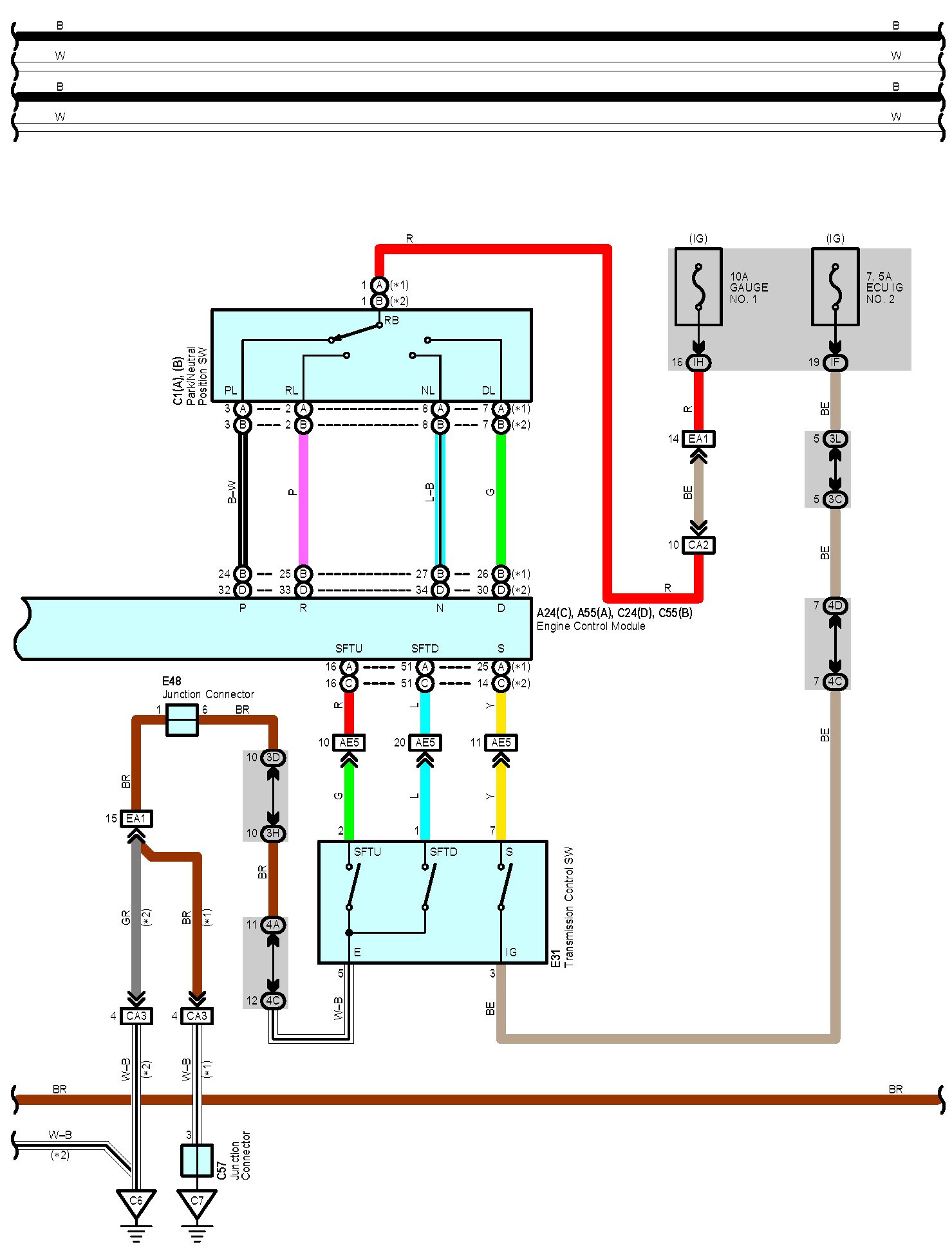

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 2:

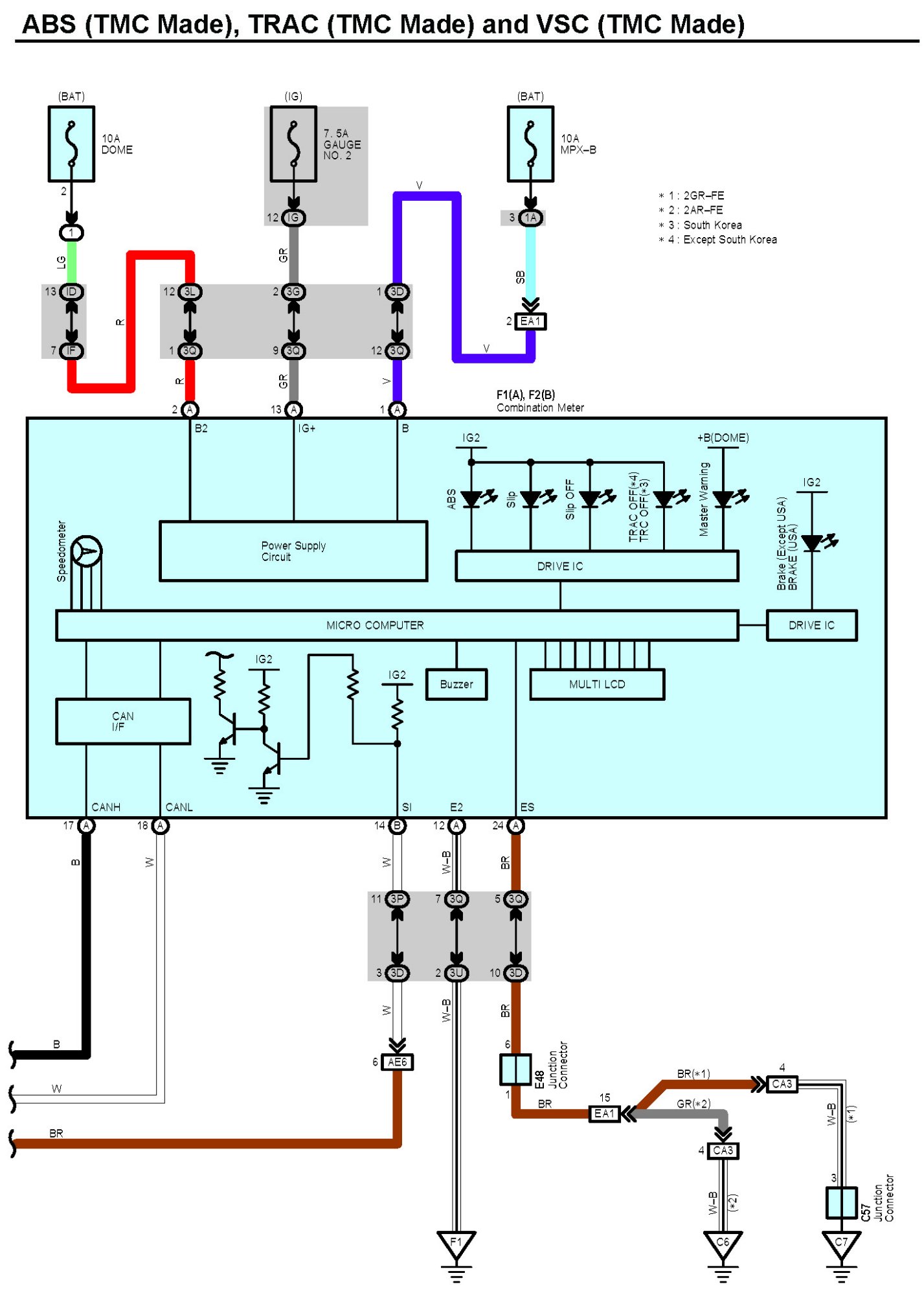

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 3:

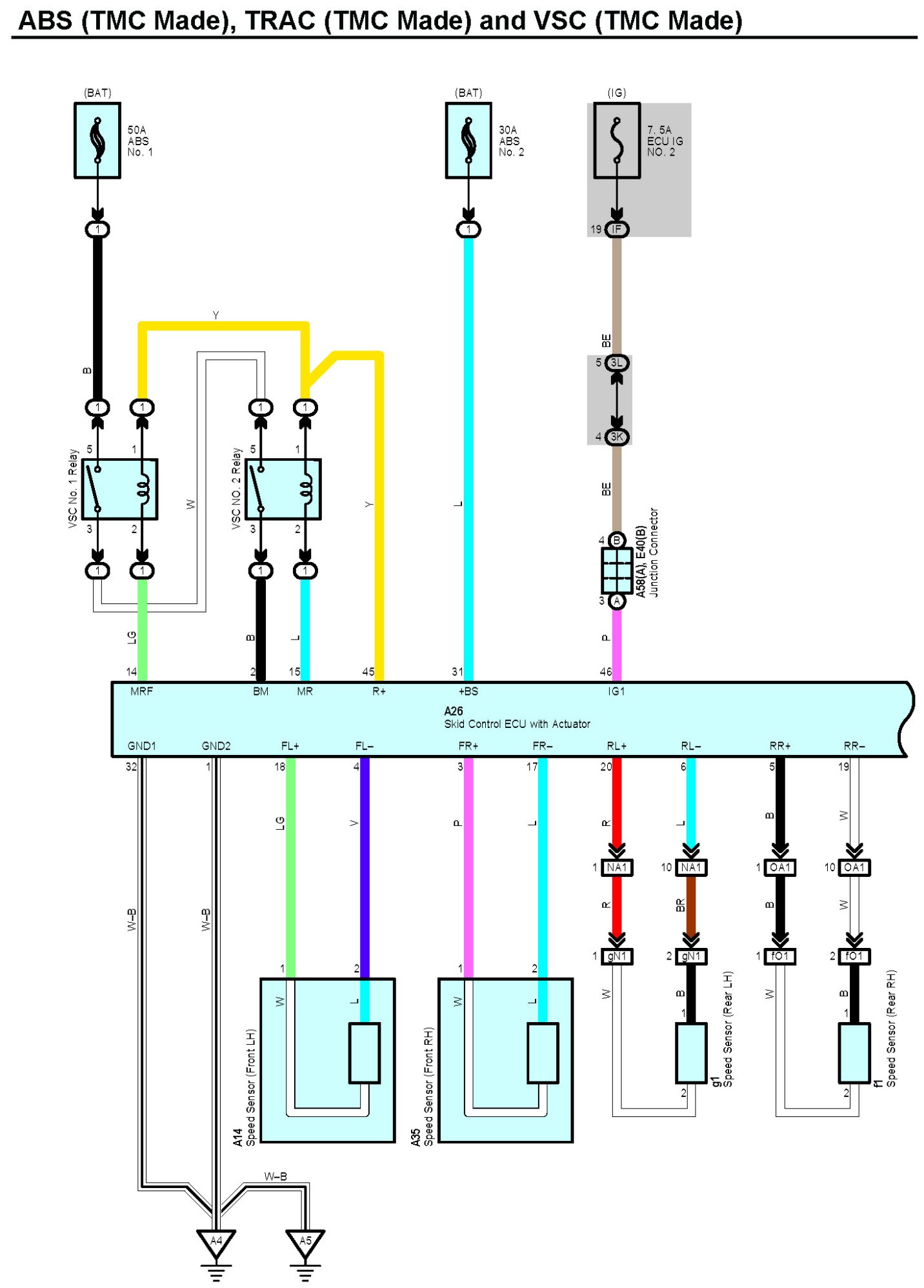

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 4:

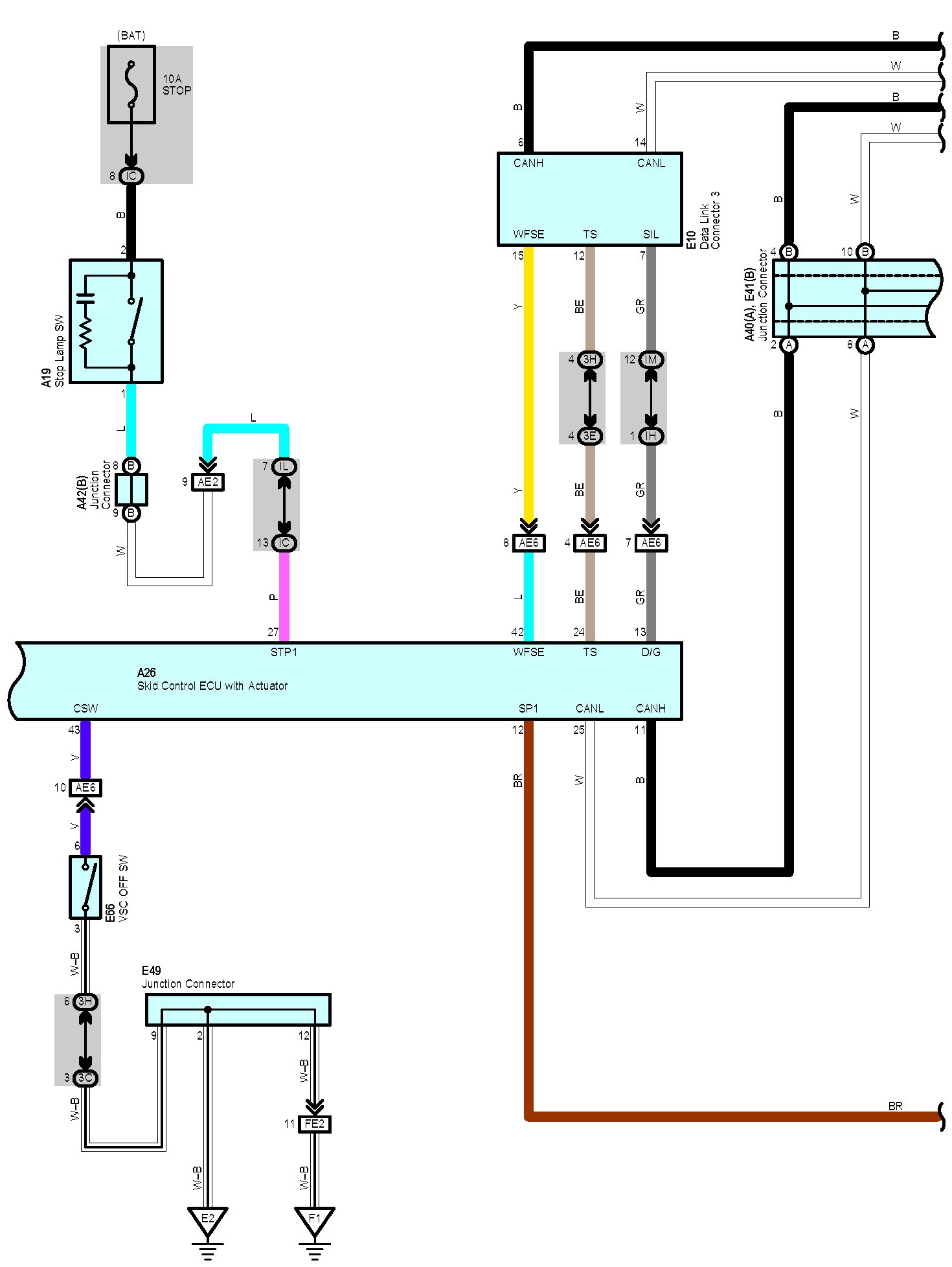

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 5:

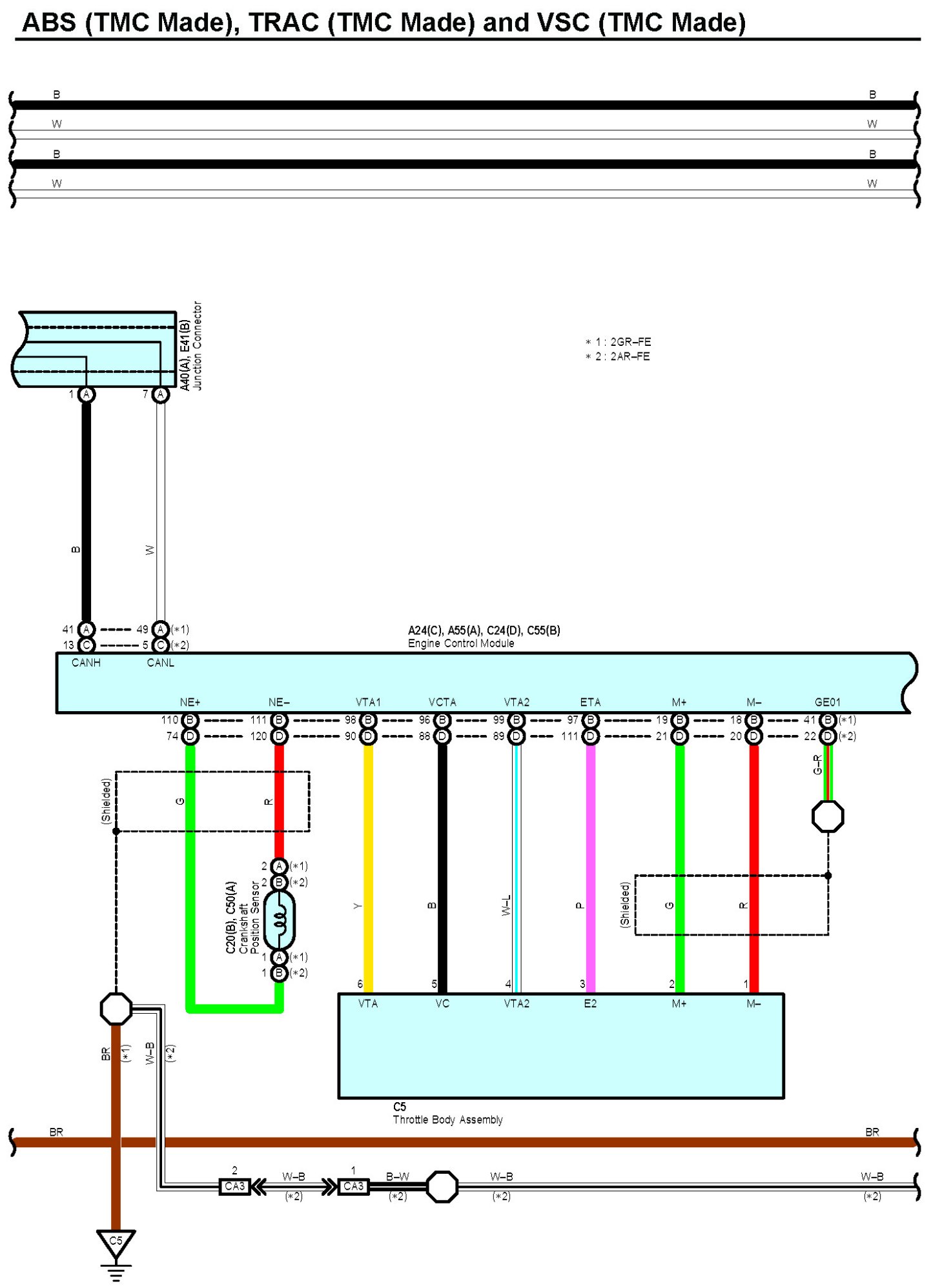

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 6:

ABS (TMC Made), TRAC (TMC Made) and VSC (TMC Made) Part 7:

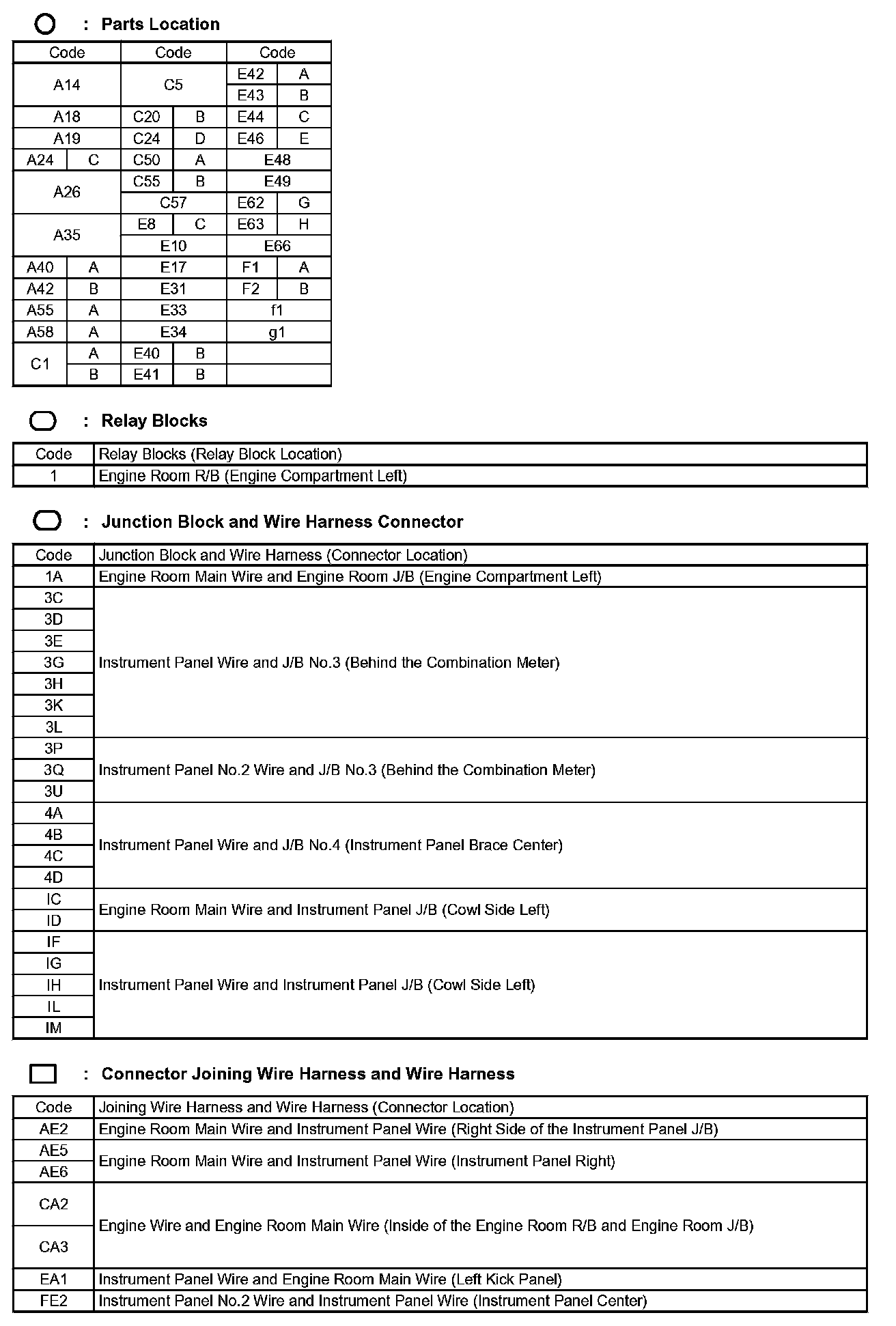

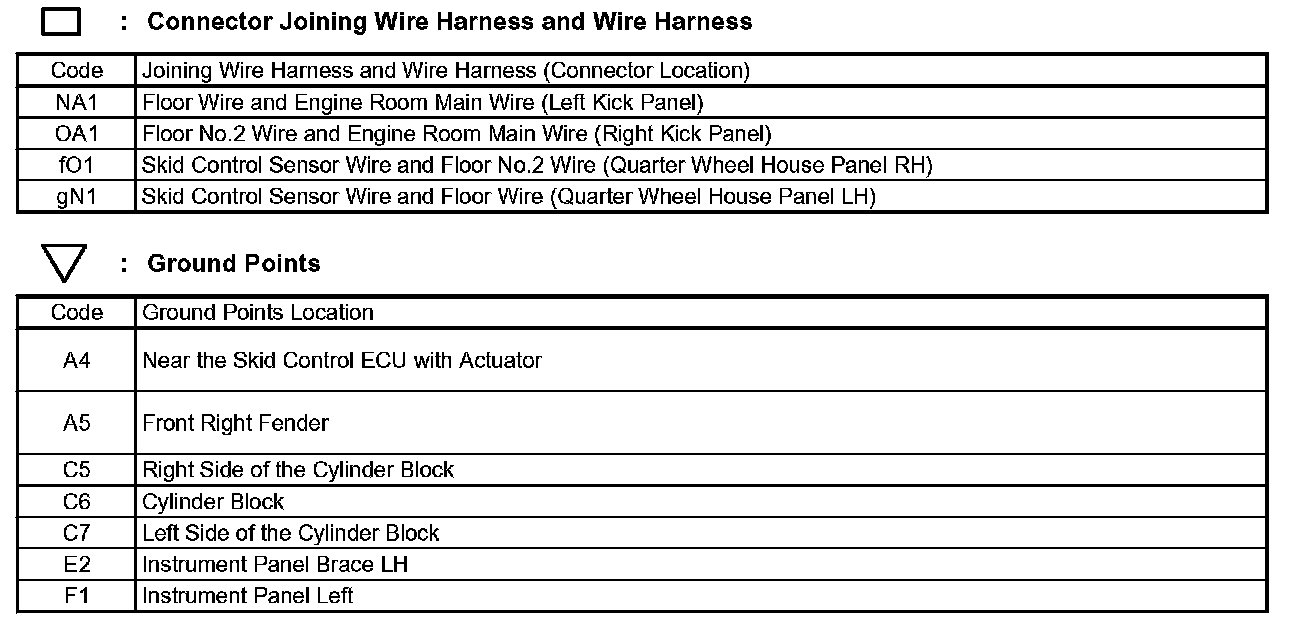

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
