Position of Parts In Engine Compartment
Position of Parts In Engine Compartment

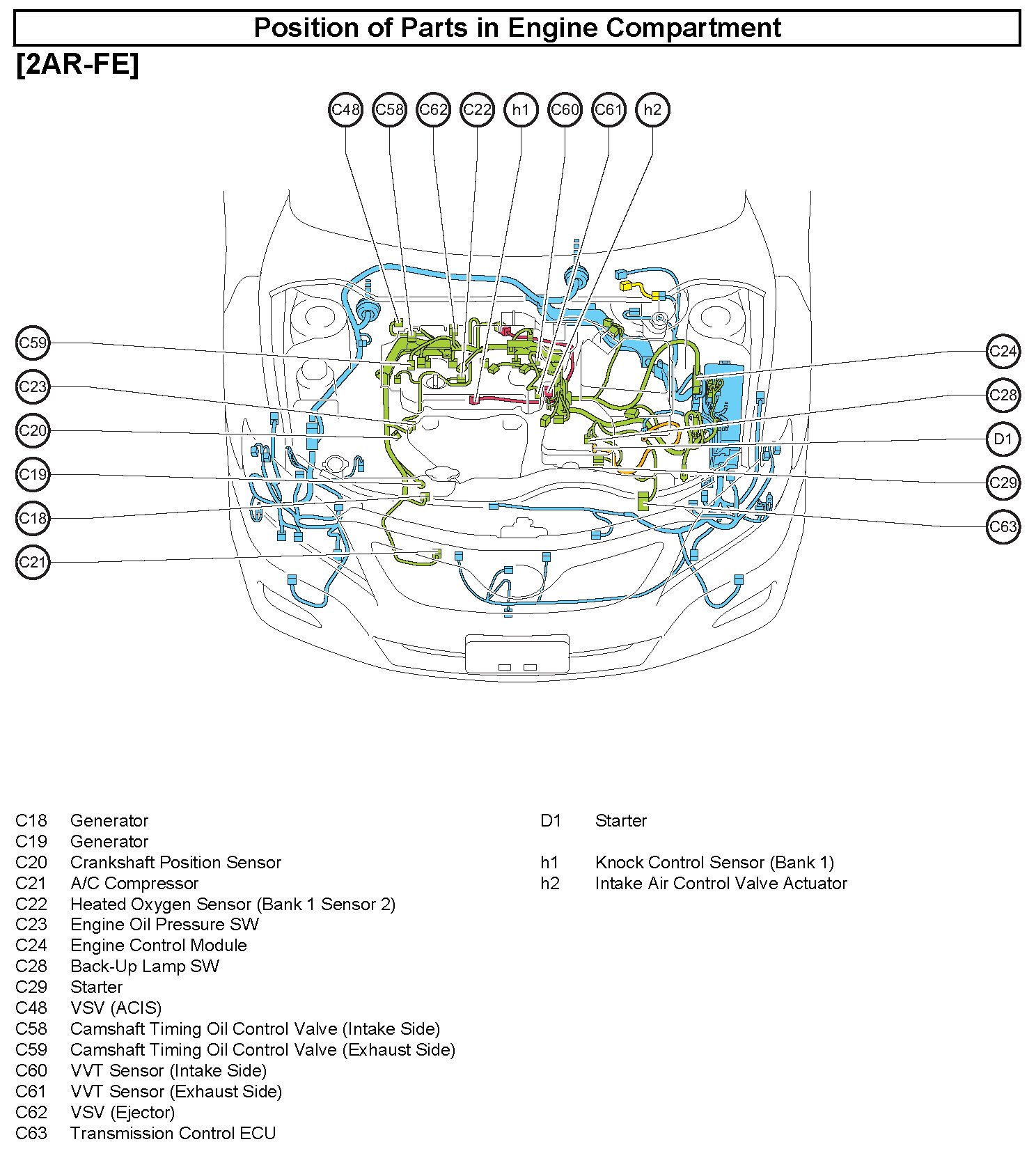

Position of Parts In Engine Compartment:

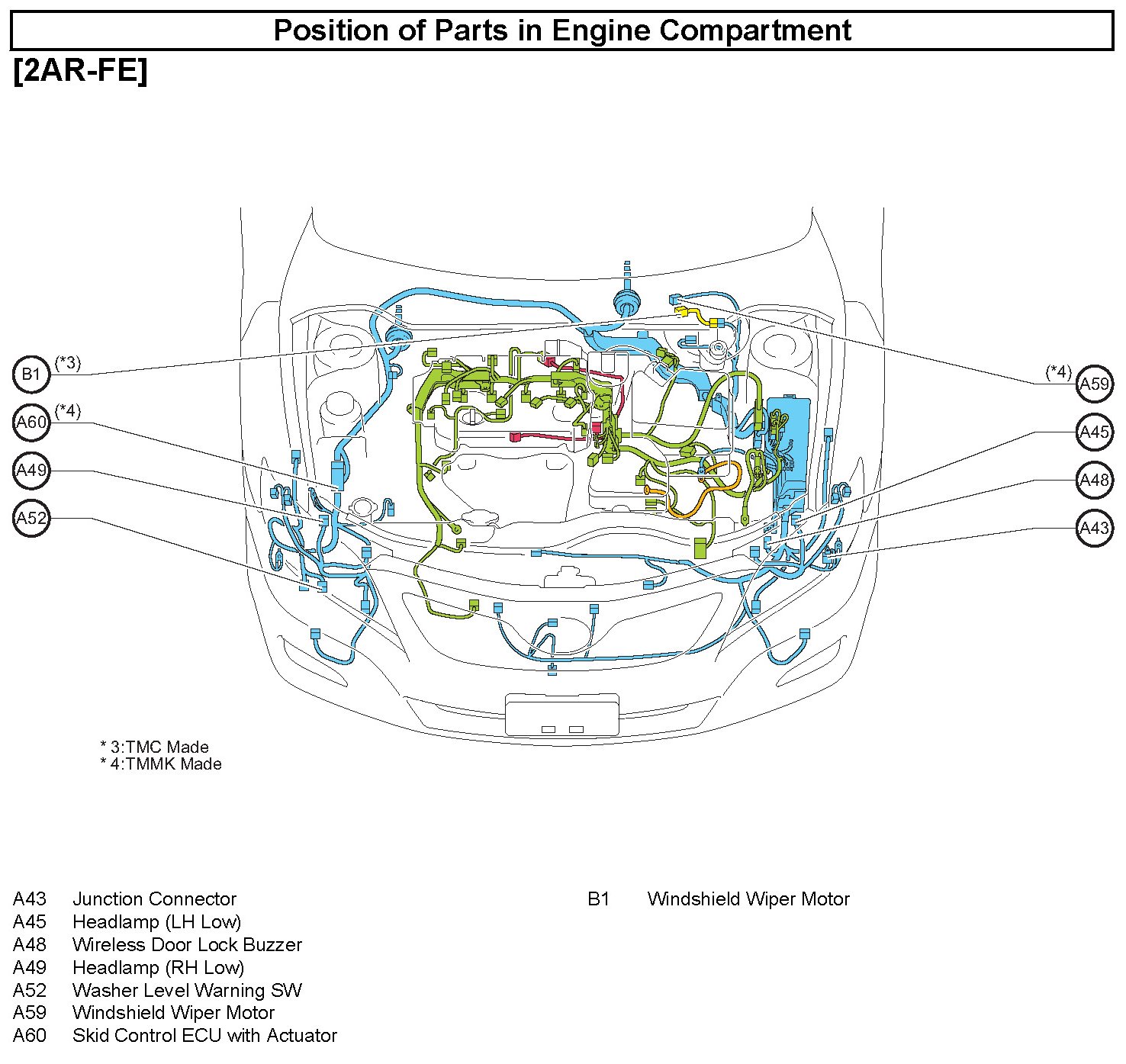

Position of Parts In Engine Compartment:

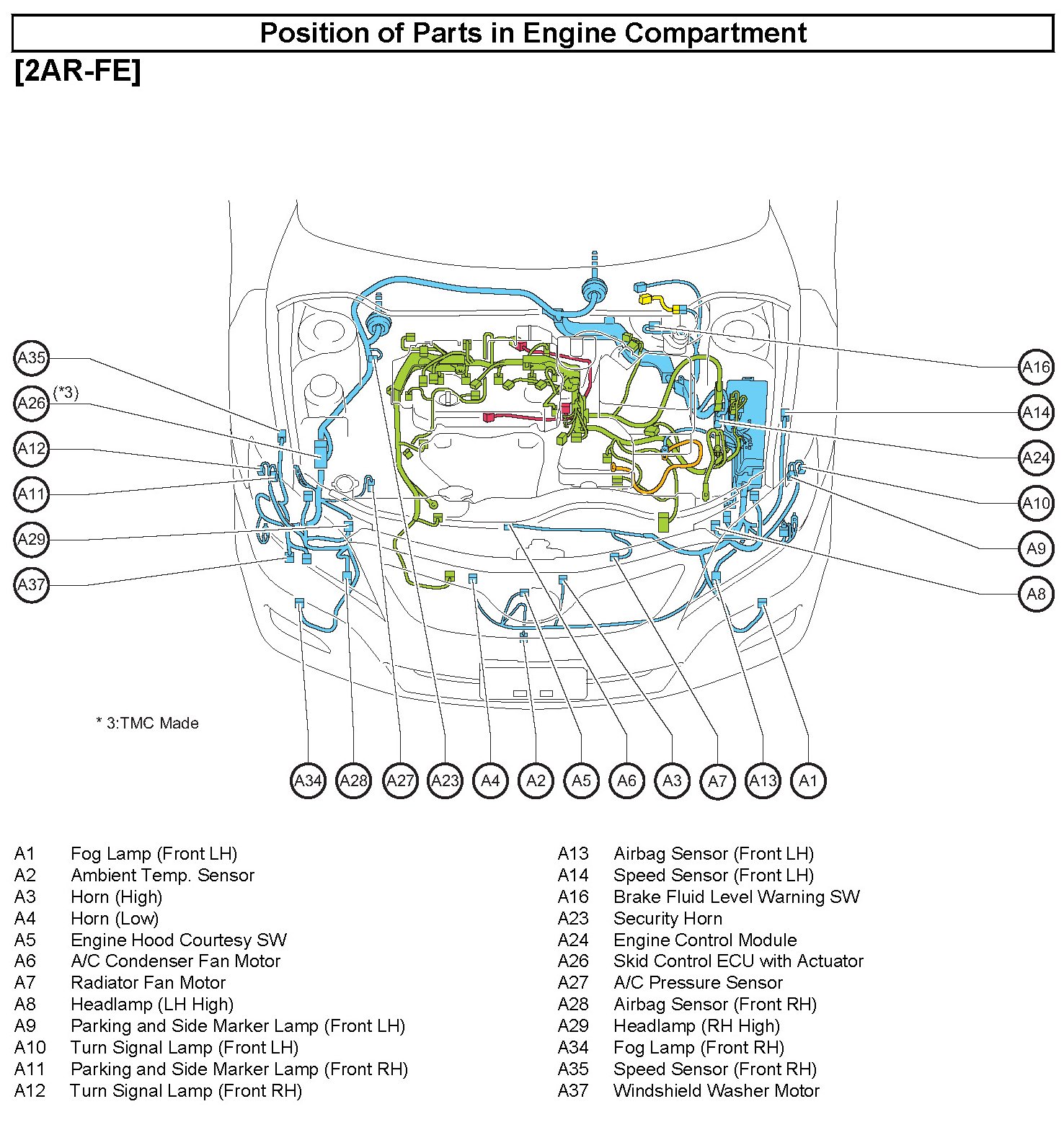

Position of Parts In Engine Compartment:

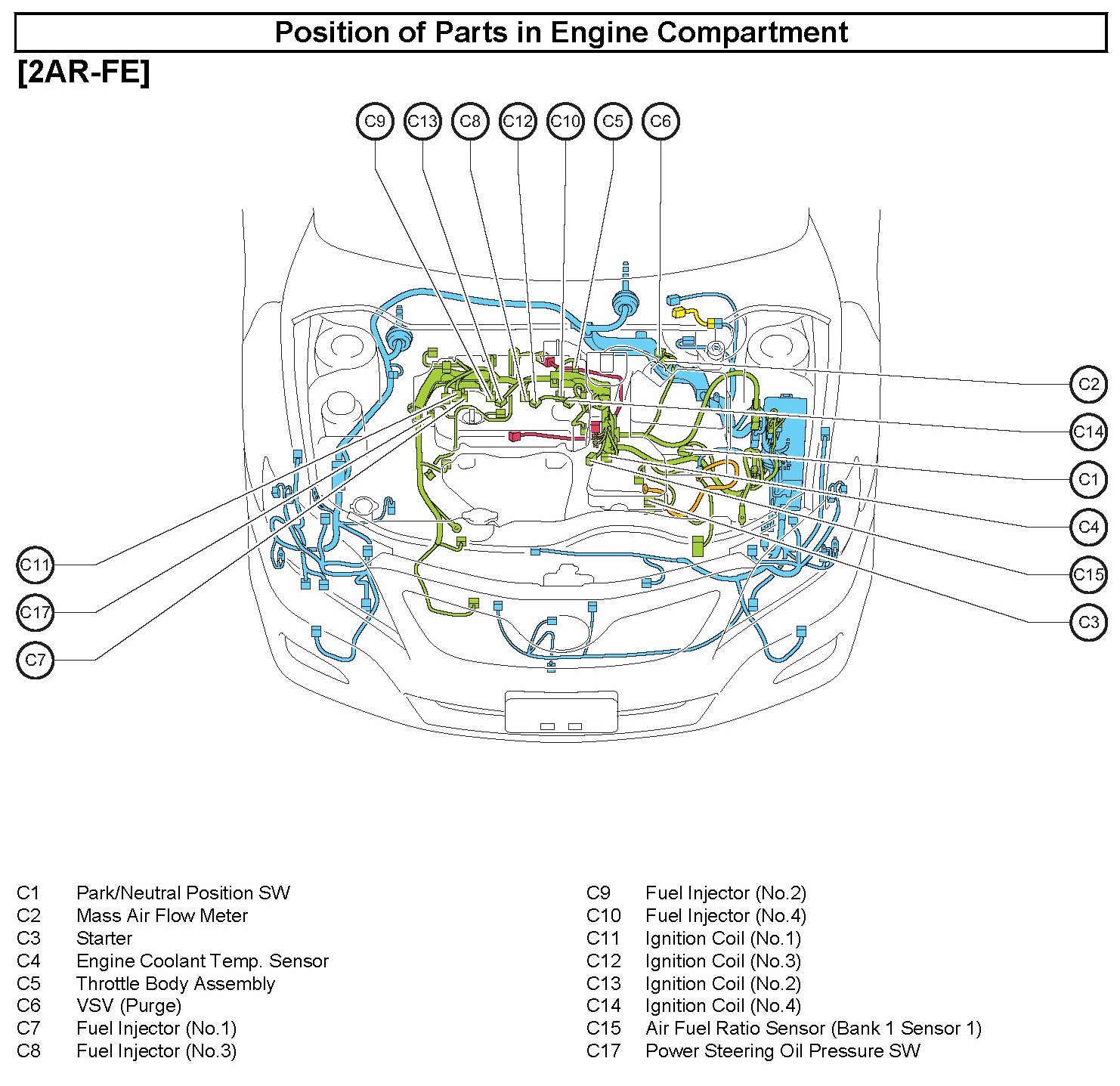

Position of Parts In Engine Compartment:
