Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters





CRUISE CONTROL: CRUISE CONTROL SYSTEM: TERMINALS OF ECM

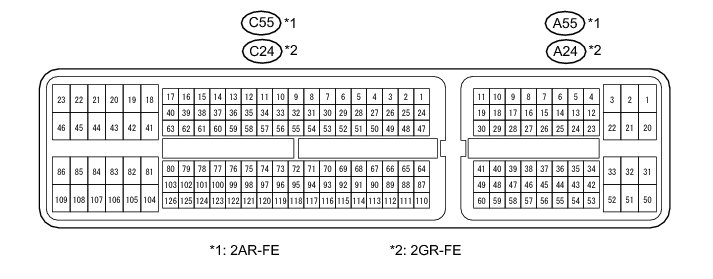

1. CHECK ECM

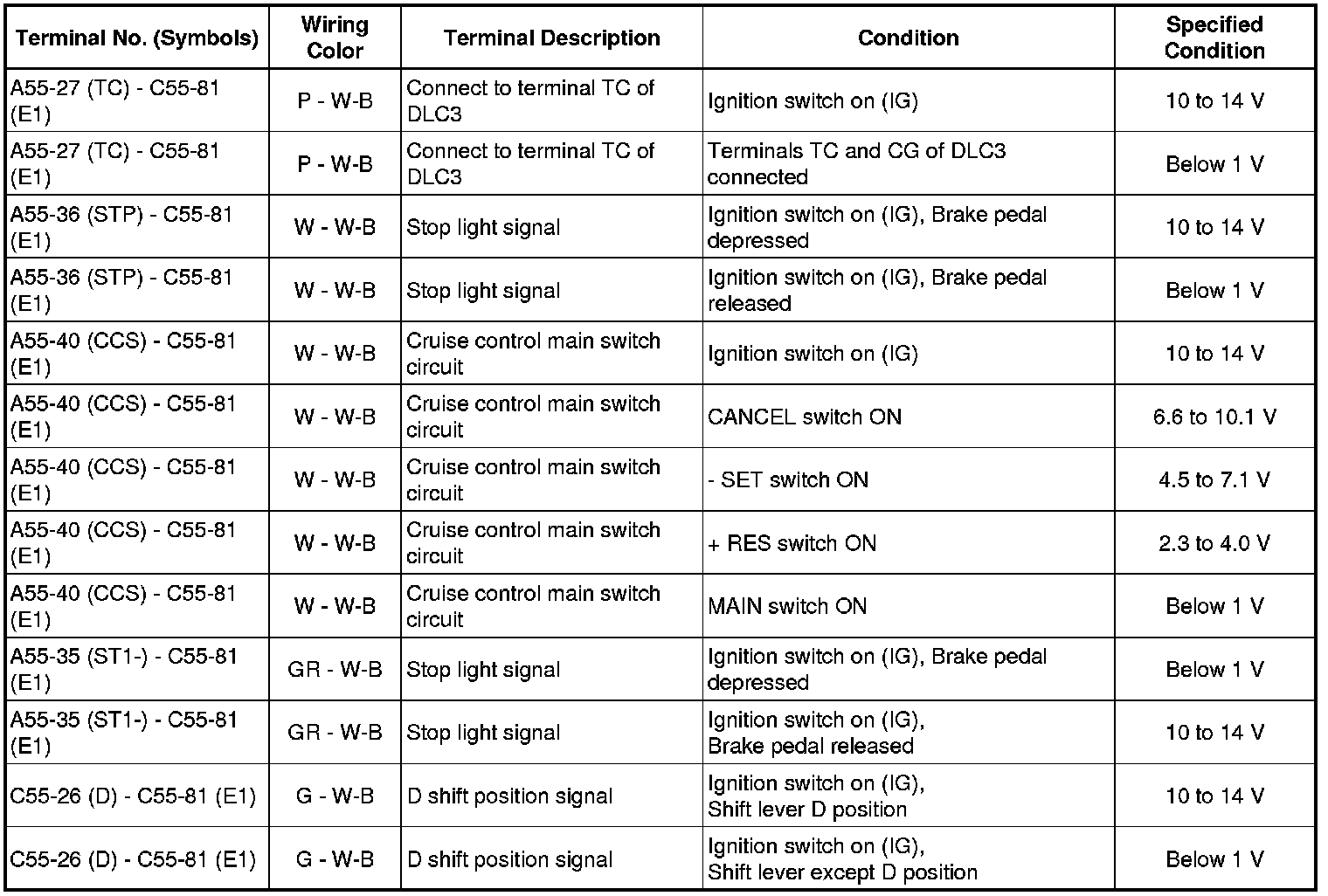

2AR-FE





HINT
* *1: For M/T
* *2: For A/T

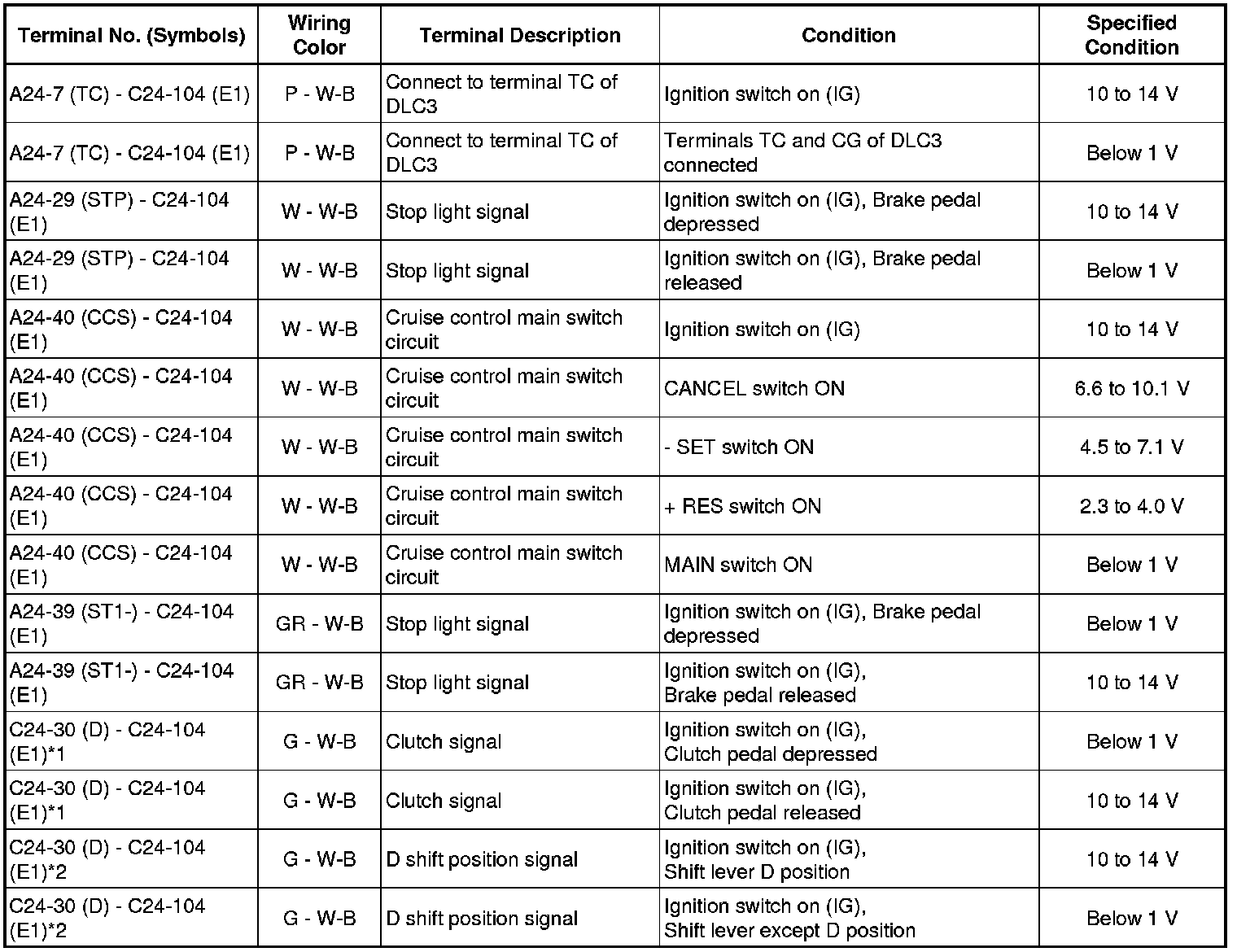

2GR-FE
