Ejector Tube

BRAKE: EJECTOR TUBE: INSPECTION

1. INSPECT EJECTOR TUBE

(a) Inspect that the ejector tube has no deformation or cracks.

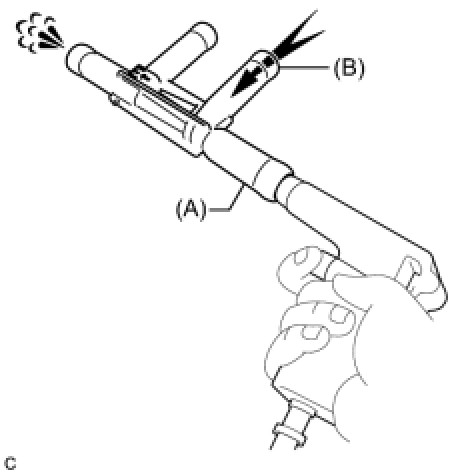

(b) Check that suction occurs at the port (B) when applying compressed air into the port (A).





If any of the defects is found, replace the ejector tube with a new one.
