Installation
PARKING BRAKE: PARKING BRAKE LEVER: INSTALLATION
1. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Install the parking brake lever sub-assembly with the 2 bolts and the clip.
for TMC made - Torque : 21 Nm (214 kgf-cm, 15 ft-lbf)
for TMMK made - Torque : 22 Nm (224 kgf-cm, 16 ft-lbf)
(b) Connect the parking brake switch connector.
2. INSTALL PARKING BRAKE EQUALIZER
(a) Install the parking brake equalizer to the No. 1 parking brake cable assembly.

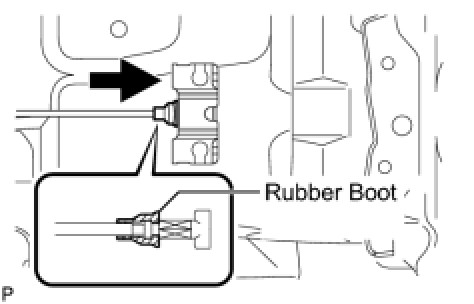

(b) Slide the rubber boot back as shown in the illustration.
3. INSTALL NO. 2 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the No. 2 parking brake cable assembly to the parking brake equalizer.
4. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the No. 3 parking brake cable assembly to the parking brake equalizer.
5. INSTALL CROSS MEMBER FLOOR NO. 4 REINFORCEMENT SUB-ASSEMBLY
(a) Install the cross member floor No. 4 reinforcement sub-assembly with the 8 bolts.
Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)
6. INSTALL FRONT FLOOR CARPET ASSEMBLY
(a) Engage the 6 clamps and the 2 claws and install the front floor carpet assembly.
7. INSTALL LUGGAGE DOOR LOCK OPEN LEVER SUB-ASSEMBLY
(a) Engage the claw and install the luggage door open lever sub-assembly with the screw.
8. INSTALL LOWER CENTER PILLAR GARNISH LH Installation
9. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH Installation
10. INSTALL REAR DOOR SCUFF PLATE LH Installation
11. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH Installation
12. INSTALL FRONT DOOR SCUFF PLATE LH Installation
13. INSTALL LOWER CENTER PILLAR GARNISH RH Installation
14. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation
15. INSTALL REAR DOOR SCUFF PLATE RH Installation
16. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation
17. INSTALL FRONT DOOR SCUFF PLATE RH Installation
18. INSTALL FLOOR CARPET BRACKET LH
19. INSTALL FLOOR CARPET BRACKET RH
20. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMC Made) Installation
21. INSTALL NO. 2 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation
22. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMC Made) Installation
23. INSTALL NO. 1 CONSOLE BOX INSERT FRONT (for TMMK Made) Installation
24. INSTALL CONSOLE BOX ASSEMBLY (for TMC Made) Installation
25. INSTALL CONSOLE BOX ASSEMBLY (for TMMK Made) Installation
26. INSTALL CONSOLE BOX CARPET Installation
27. INSTALL CONSOLE BOX POCKET Installation
28. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMC Made) Installation
29. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for TMMK Made) Installation
30. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY Installation
31. INSTALL UPPER CONSOLE PANEL Installation
32. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
33. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation
34. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation
35. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMC Made) Installation
36. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY (for TMMK Made) Installation
37. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY Installation
38. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation
39. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMC Made) Installation
40. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL LH (for TMMK Made) Installation
41. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH Installation
42. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
43. INSTALL FRONT SEAT ASSEMBLY LH (for Manual Seat)
HINT
Refer to the procedures up to "INSTALL FRONT SEAT ASSEMBLY (for Manual Seat)". Installation
44. INSTALL FRONT SEAT ASSEMBLY RH (for Manual Seat)
HINT
Use the same procedures for the RH side and the LH side.
45. INSTALL FRONT SEAT ASSEMBLY LH (for Power Seat)
HINT
Refer to the procedures up to "INSTALL FRONT SEAT ASSEMBLY (for Power Seat)". Installation
46. INSTALL FRONT SEAT ASSEMBLY RH (for Power Seat)
HINT
Use the same procedures for the RH side and the LH side.
47. INSPECT PARKING BRAKE LEVER TRAVEL Adjustments
48. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments
