Brake Actuator (for BOSCH Made)
>>
Components
Components

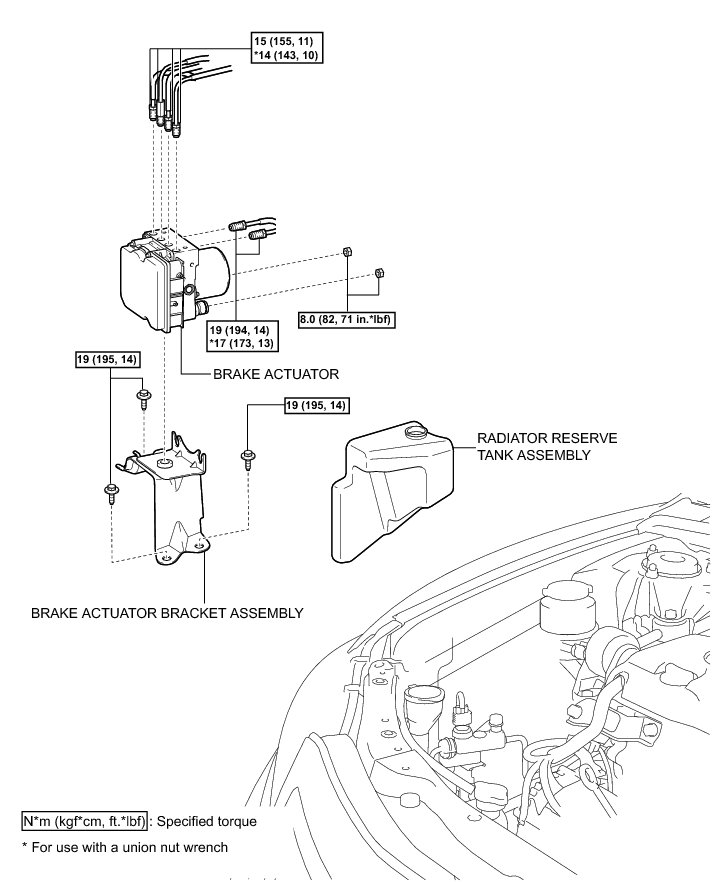

BRAKE CONTROL: BRAKE ACTUATOR (for BOSCH Made): COMPONENTS
