Removal

BRAKE: REAR BRAKE FLEXIBLE HOSE: REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. DRAIN BRAKE FLUID

2. REMOVE REAR WHEEL

3. REMOVE REAR BRAKE FLEXIBLE HOSE

(a) Remove the union bolt, the rear brake flexible hose and gasket.

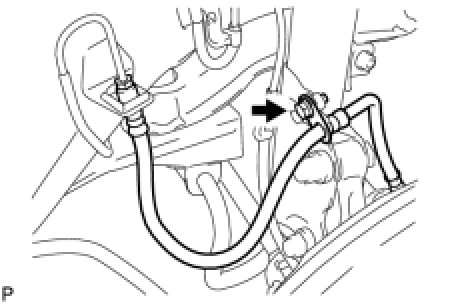

(b) Remove the bolt and separate the rear brake flexible hose.

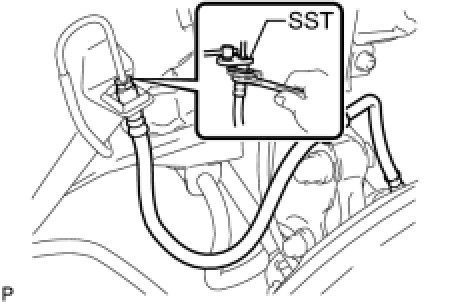

(c) Using SST, remove the brake line while holding the rear brake flexible hose with a wrench.





SST : 09023-00101

NOTICE:
* Do not bend or damage the brake line.
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

(d) Remove the clip.
