Removal

BRAKE: FRONT BRAKE FLEXIBLE HOSE: REMOVAL

HINT
* Use the same procedures for the LH side and RH side.
* The procedures listed below are for the LH side.

1. REMOVE FRONT WHEEL

2. DRAIN BRAKE FLUID

3. REMOVE FRONT BRAKE FLEXIBLE HOSE

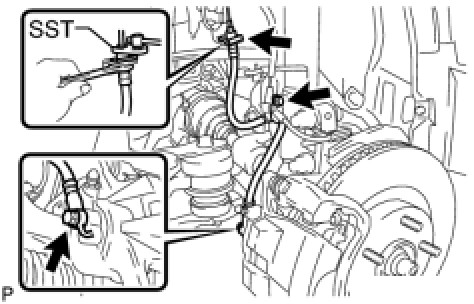

(a) Remove the clip.





(b) Remove the brake tube with SST while holding the front brake flexible hose with a wrench.

SST : 09023-00101

NOTICE:
* Do not bend or damage the brake tube.
* Do not allow any foreign matter such as dirt and dust to enter the brake tube from the connecting points.

(c) Remove the bolt, and separate the front brake flexible hose and the speed sensor from the shock absorber.

(d) Remove the union bolt, the front brake flexible hose and gasket.
