Installation

BRAKE: REAR BRAKE: INSTALLATION

HINT
* Use the same procedure for the LH side and RH side.
* The procedure listed below is for the LH side.

1. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY

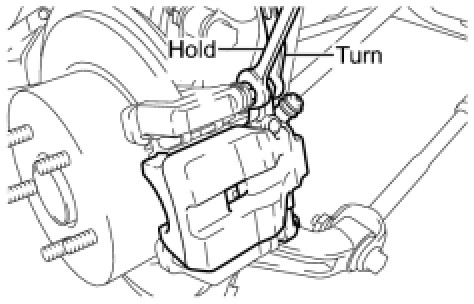

(a) Install the disc brake cylinder assembly with the 2 bolts.

Torque : 27 Nm (275 kgf-cm, 20 ft-lbf)





NOTICE:
Install the rear disc brake bushing dust boot onto the groove of the rear disc brake cylinder.

2. CONNECT REAR BRAKE FLEXIBLE HOSE

(a) Connect the flexible hose with the union bolt and a new gasket.





Torque : 33 Nm (337 kgf-cm, 24 ft-lbf)

3. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

4. BLEED BRAKE LINE Service and Repair

5. INSPECT FLUID LEVEL IN RESERVOIR Service and Repair

6. INSPECT FOR BRAKE FLUID LEAK

7. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
