Reassembly

BRAKE: BRAKE PEDAL: REASSEMBLY

1. INSTALL BRAKE PEDAL PAD

(a) Install the brake pedal pad.

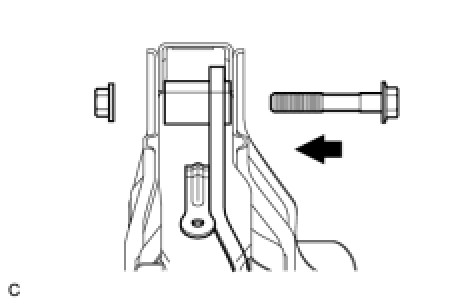

2. INSTALL BRAKE PEDAL SUB-ASSEMBLY

(a) Apply lithium soap base glycol grease to 2 new brake pedal bushings.

(b) Install the brake pedal sub-assembly, the 2 brake pedal bushings, and the brake pedal shaft collar to the brake pedal support assembly with the bolt and the nut as shown in the illustration.





Torque : 37 Nm (377 kgf-cm, 27 ft-lbf)

3. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

(a) Install the stop light switch mounting adjuster.

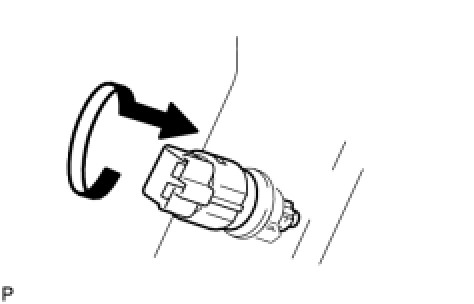

4. TEMPORARILY TIGHTEN STOP LIGHT SWITCH ASSEMBLY

(a) Temporarily tighten the stop light switch assembly as shown in the illustration.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf) or less





HINT
Completely install the stop light switch assembly after adjusting the brake pedal height.
