Slip Indicator Light Remains ON

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): Slip Indicator Light Remains ON
- Slip Indicator Light Remains ON

DESCRIPTION

The skid control ECU is connected to the combination meter via CAN communication.

If the skid control ECU stores a DTC, the SLIP indicator light will come on in the combination meter.

The SLIP indicator light blinks during VSC and/or TRAC operation.

When the system fails, the SLIP indicator light comes on to warn the driver Diagnosis System.

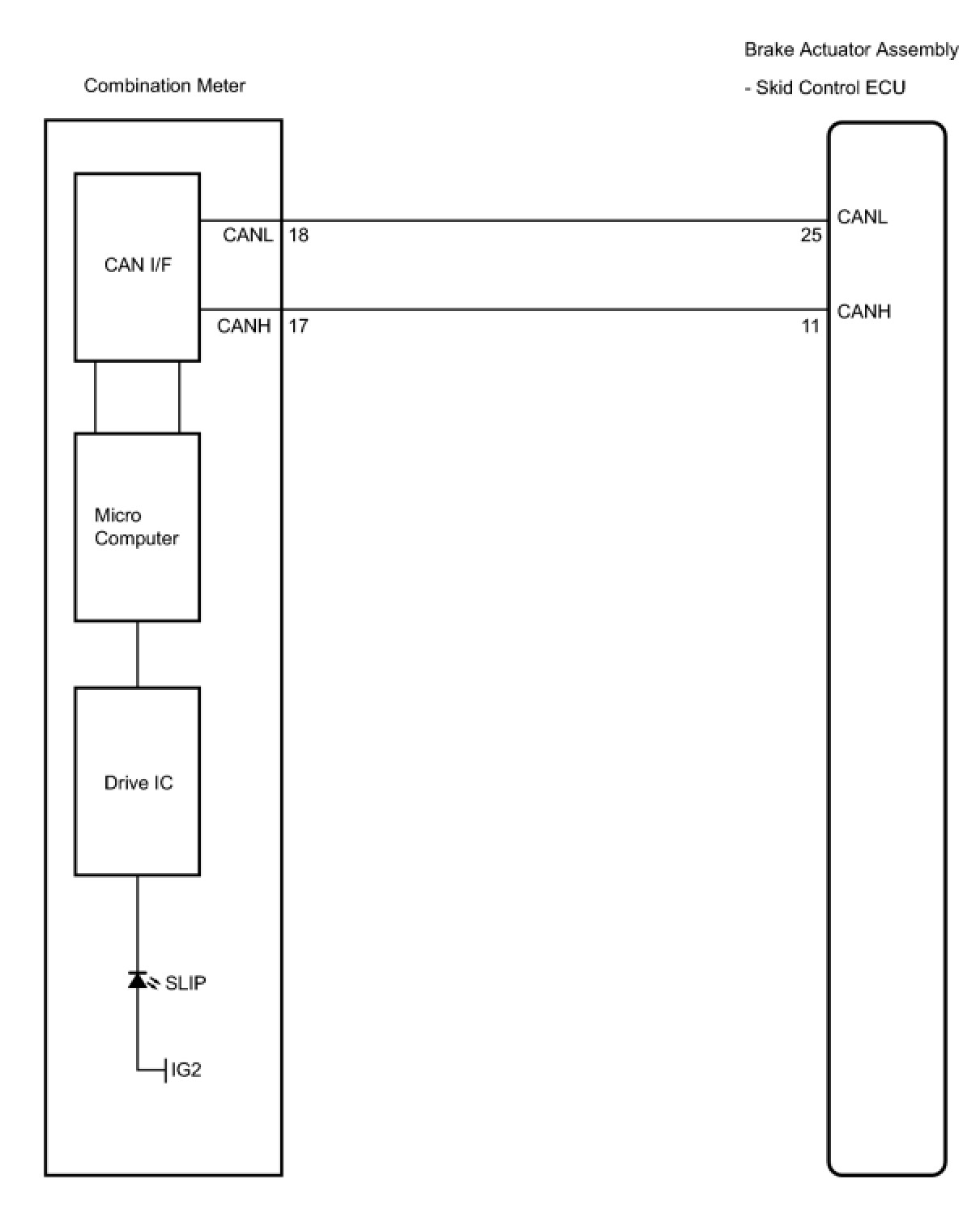

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
When replacing the brake actuator assembly, perform zero point calibration Programming and Relearning.

PROCEDURE

1. CHECK CAN COMMUNICATION SYSTEM

(a) Check if the CAN communication system DTC is output Diagnosis System.

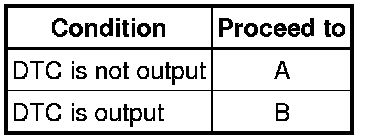

Result:





B -- INSPECT CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. CHECK IF SKID CONTROL ECU CONNECTOR IS SECURELY CONNECTED

(a) Check if the skid control ECU connector is securely connected.

OK:

The connector is securely connected.

NG -- CONNECT CONNECTOR TO ECU CORRECTLY
OK -- Continue to next step.

3. CHECK BATTERY

(a) Check the battery voltage.

Standard voltage:

11 to 14 V

NG -- CHECK AND REPLACE CHARGING SYSTEM OR BATTERY
OK -- Continue to next step.

4. INSPECT COMBINATION METER ASSEMBLY

(a) Perform Active Test of the combination meter (meter CPU) using the Techstream Meter / Gauge System.

OK:

The SLIP indicator light turns on or off in accordance with the Techstream.

HINT
If troubleshooting has been carried out according to the Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY

OK -- REPLACE BRAKE ACTUATOR ASSEMBLY
