Vehicle Stability Control System (for BOSCH Made)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for BOSCH Made): TERMINALS OF ECU

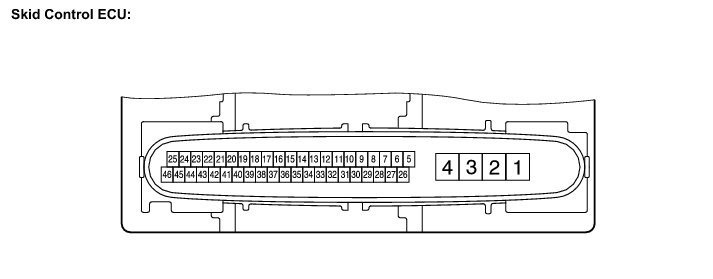

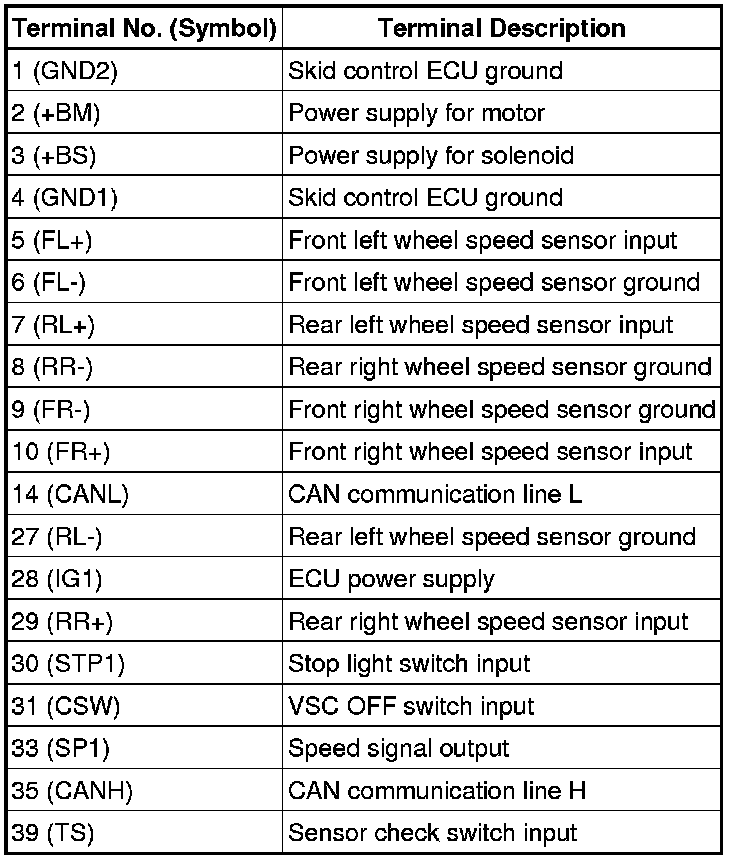

1. TERMINALS OF ECU









2. TERMINAL INSPECTION

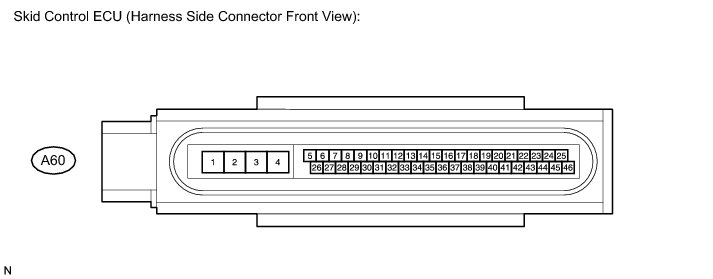

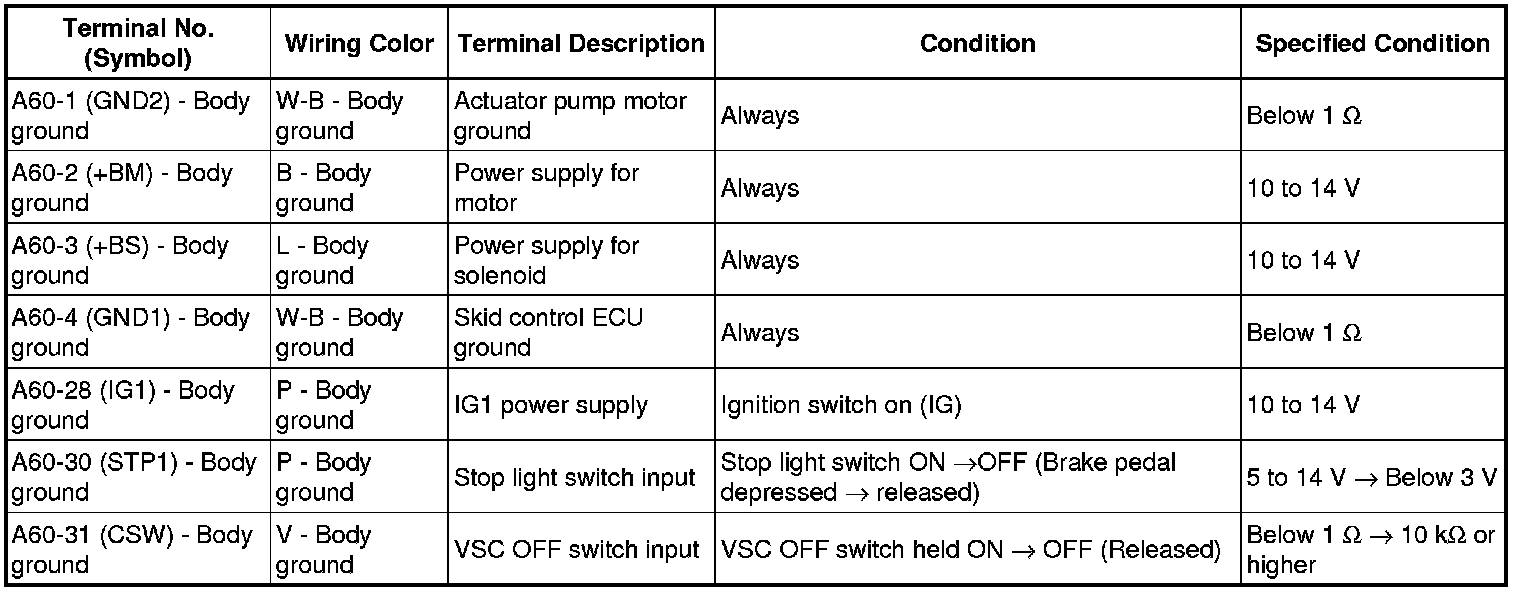

(a) Disconnect the connector and measure the voltage and resistance according to the value(s) in the table below.





HINT
Voltage cannot be measured with the connector connected to the skid control ECU, as the connector is watertight.
