Vehicle Stability Control System (for ADVICS Made)

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM (for ADVICS Made): TERMINALS OF ECU

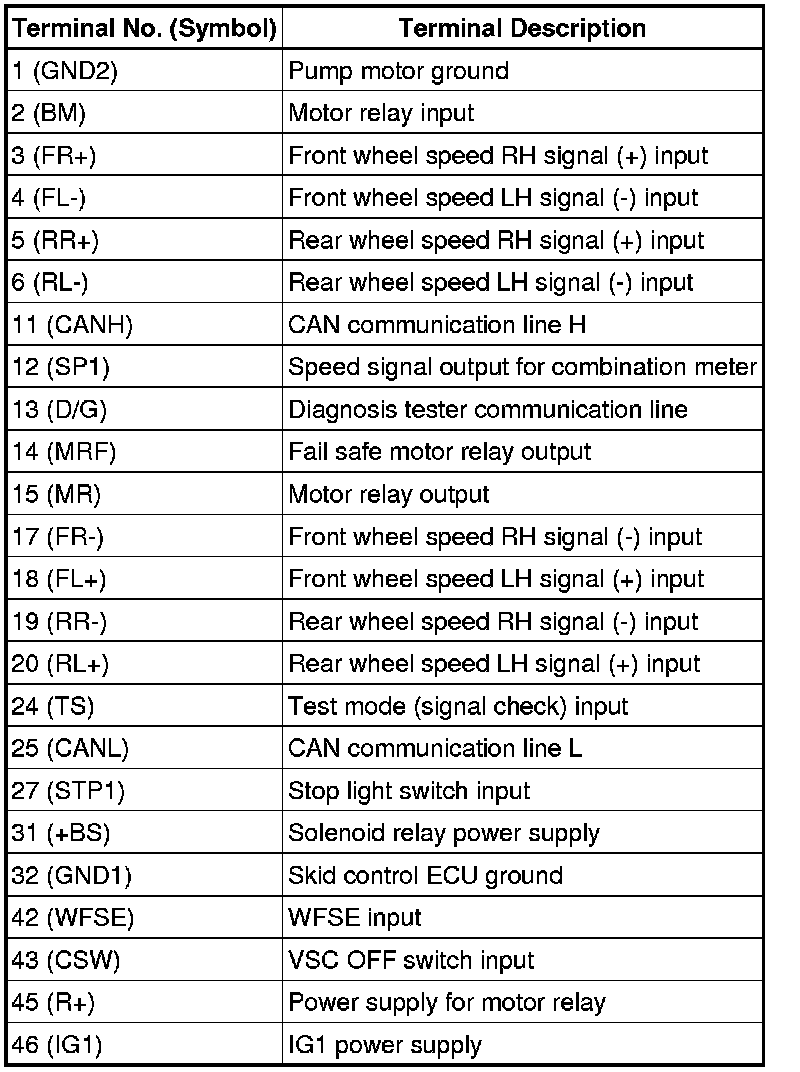

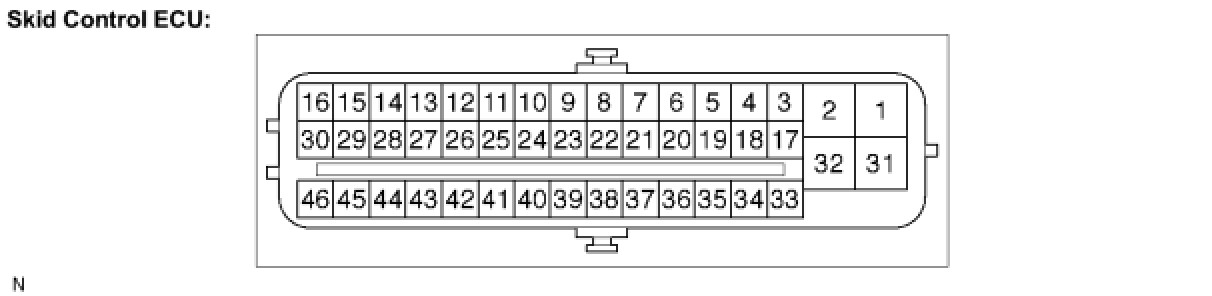

1. TERMINALS OF ECU









2. TERMINAL INSPECTION

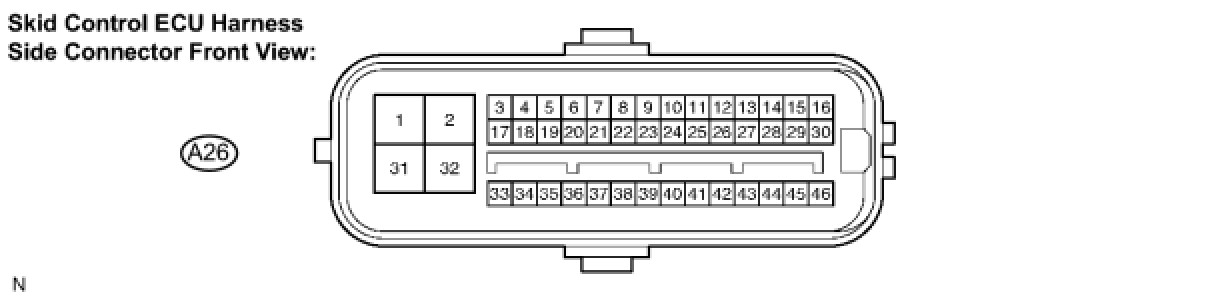

(a) Disconnect the connector and measure the voltage or resistance on the wire harness side.





HINT
Voltage cannot be measured with the connector connected to the skid control ECU because the connector is watertight.

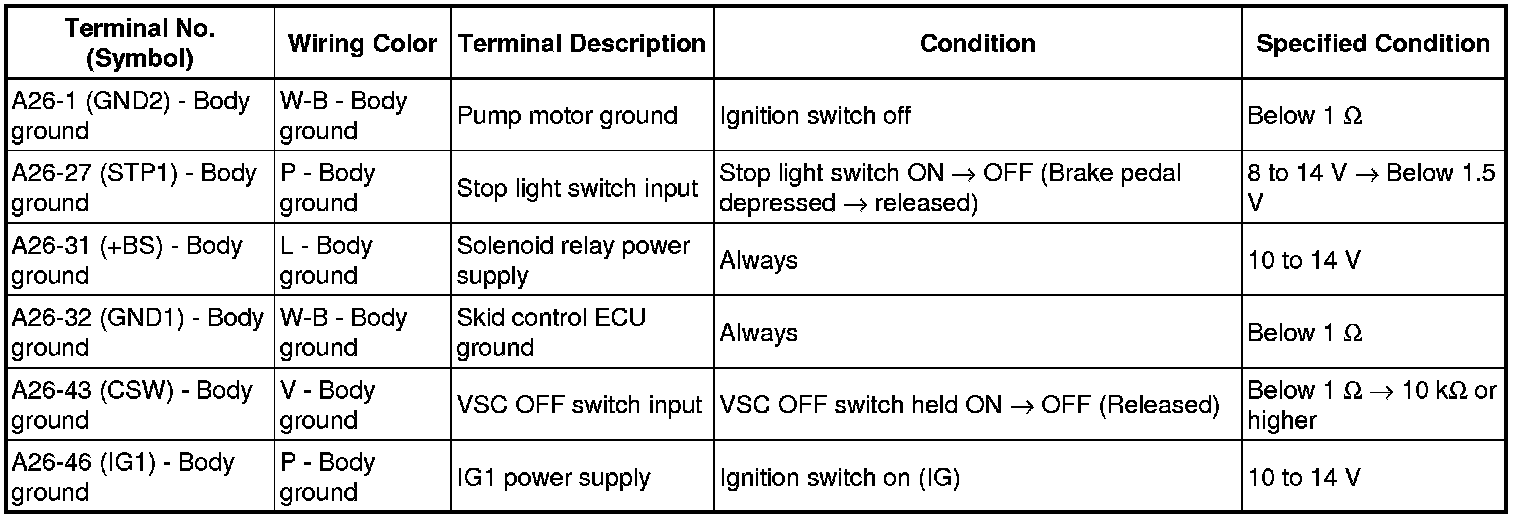

Standard:
