Unlock Warning Switch

DOOR LOCK: UNLOCK WARNING SWITCH: INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

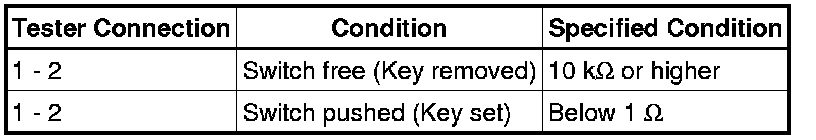

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





If the result as specified, replace the unlock warning switch assembly.
