Door Control Switch





DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

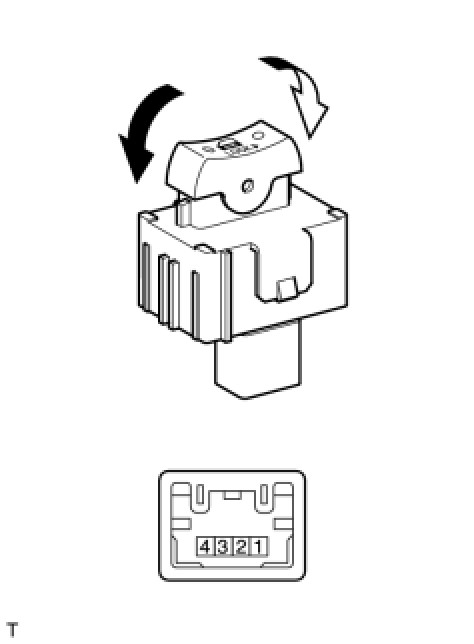

1. INSPECT DOOR CONTROL SWITCH (for Front Passenger Side)

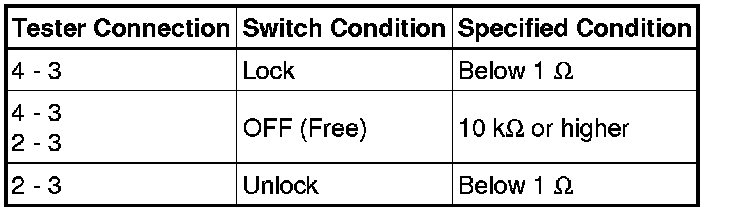

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:
