Symptom Related Diagnostic Procedures
SEAT: FRONT POWER SEAT CONTROL SYSTEM: PROBLEM SYMPTOMS TABLE
HINT
* Inspect the fuses and relays before confirming the suspected areas in the table below.
* Inspect each suspected area in numerical order for the corresponding symptom.

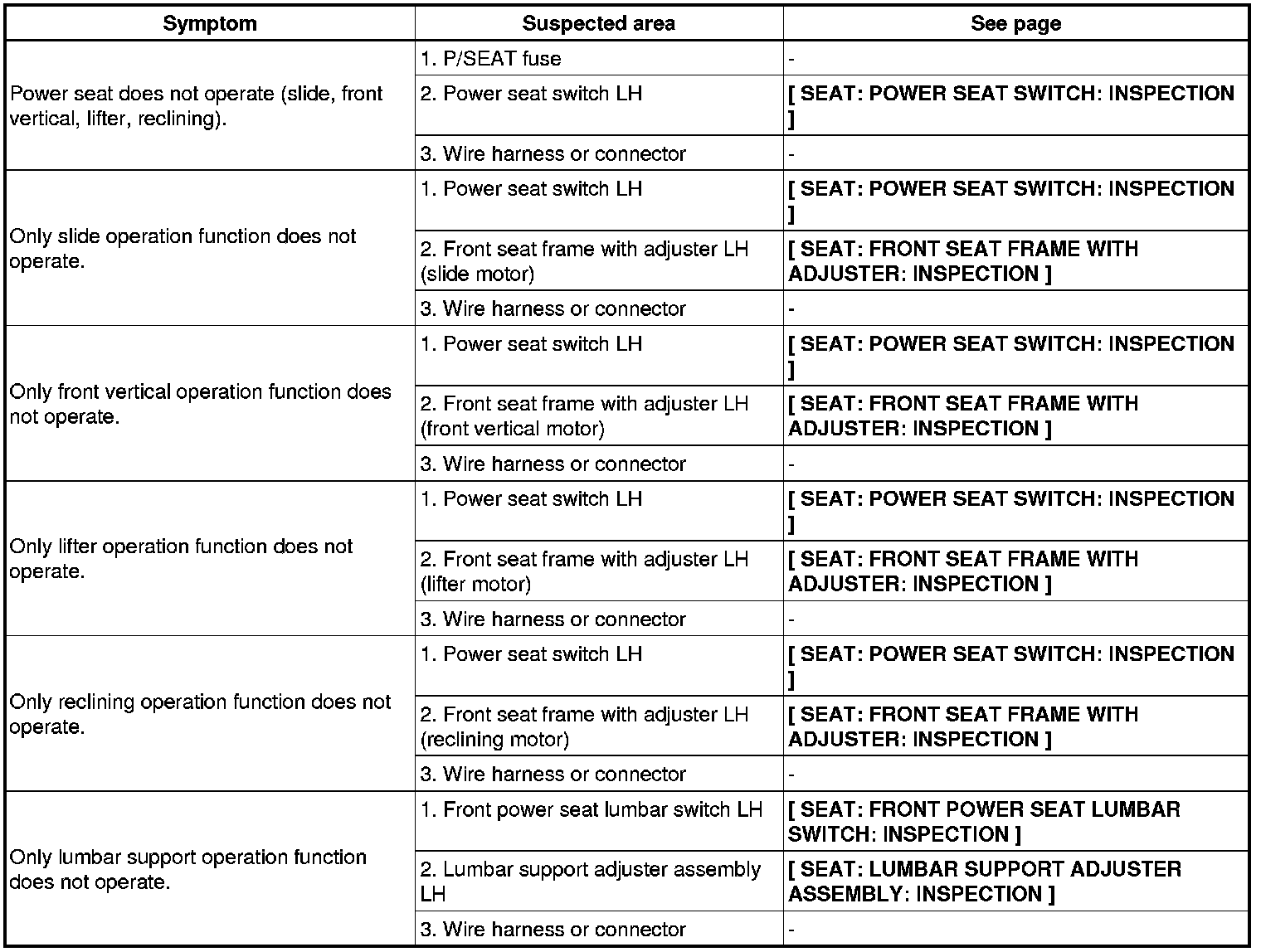

Front Power Seat Control System (Driver Side):

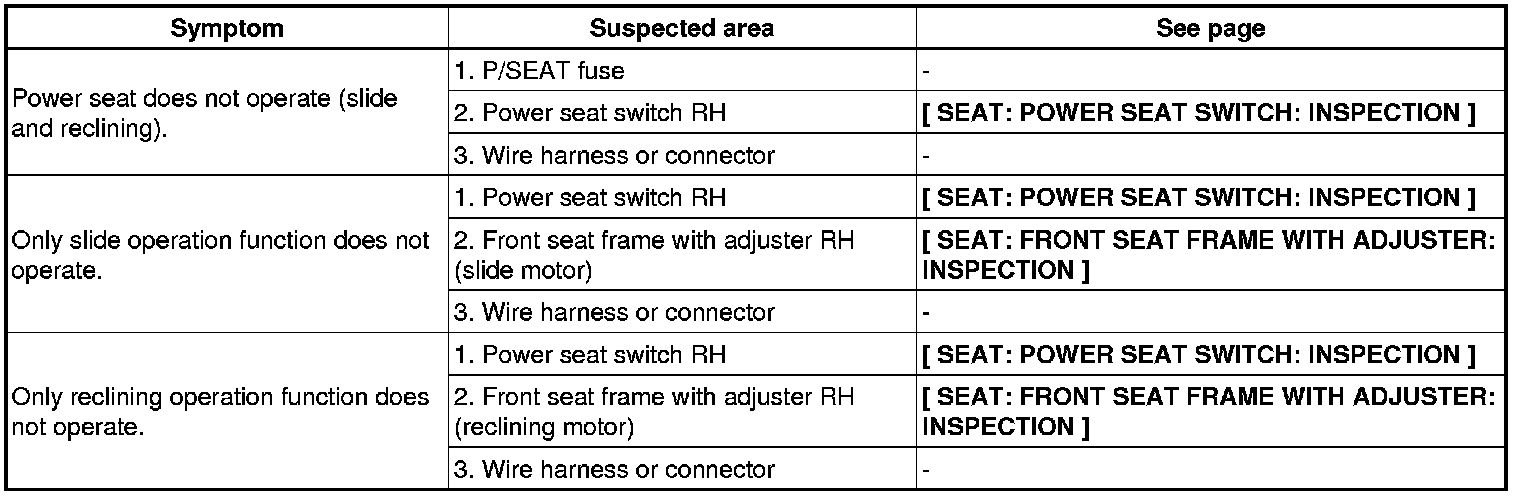

Front Power Seat Control System (Front Passenger Side):
