Reassembly

SEAT: FRONT SEAT ASSEMBLY (for Power Seat): REASSEMBLY

CAUTION:
Wear protective gloves. Sharp areas on the seat adjuster may injure your hands.

1. INSTALL FRONT SEAT WIRE

2. INSTALL SEAT POSITION SENSOR (for Driver Side) Installation

3. INSTALL FRONT LOWER SEAT CUSHION SHIELD

4. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH

5. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH

6. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER RH

7. INSTALL RECLINING ADJUSTER INSIDE COVER LH

8. INSTALL RECLINING ADJUSTER INSIDE COVER RH

9. INSTALL FRONT SEAT SIDE AIRBAG ASSEMBLY Installation

10. INSTALL LUMBAR SUPPORT ADJUSTER ASSEMBLY

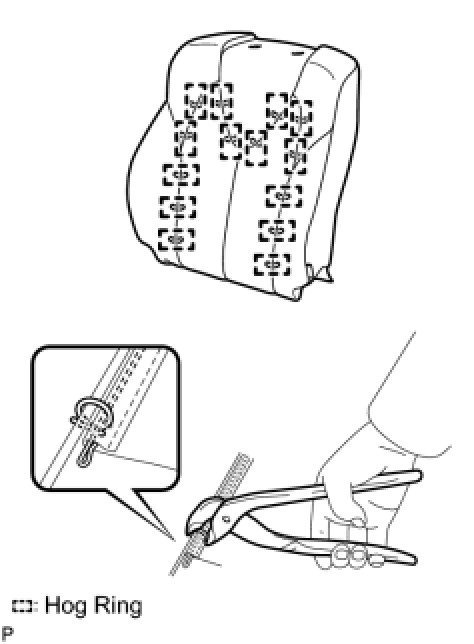

11. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER (for Except Sports Seat Type)

(a) Using hog ring pliers, install the front separate type seat back cover to the front seat back pad with 16 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

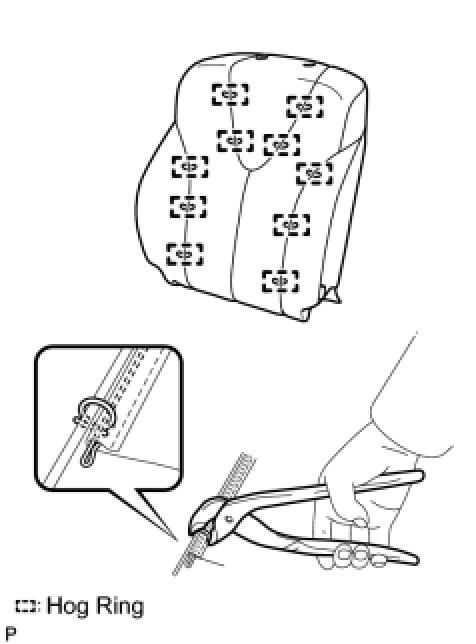

12. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER (for Sports Seat Type)

(a) Using hog ring pliers, install the front separate type seat back cover to the front seat back pad with 14 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

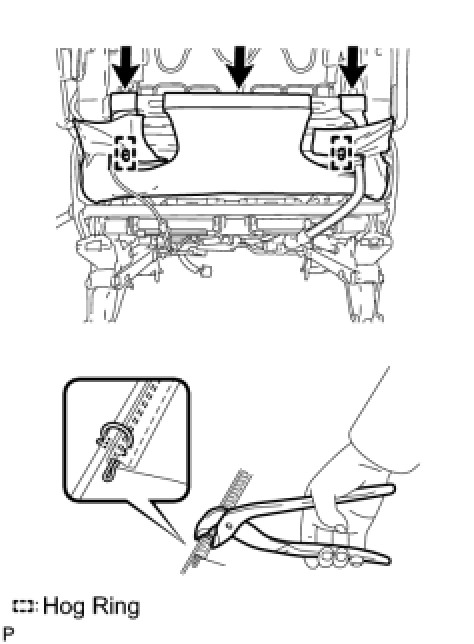

13. INSTALL FRONT SEPARATE TYPE SEAT BACK ASSEMBLY

(a) Fully cover the airbag with the 2 seat back cover brackets and tighten the nut.





Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

NOTICE:
* For vehicles with side airbags, the seat back cover must be securely installed. Otherwise, the side airbags may not deploy properly.
* Make sure that the strap is not twisted after installing the bracket.
* Install the bracket securely.

(b) Engage the 3 hooks.





(c) Using hog ring pliers, install 2 new hog rings.

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

14. INSTALL FRONT SEAT HEADREST SUPPORT

15. INSTALL FRONT SEAT BACK BOARD SUB-ASSEMBLY

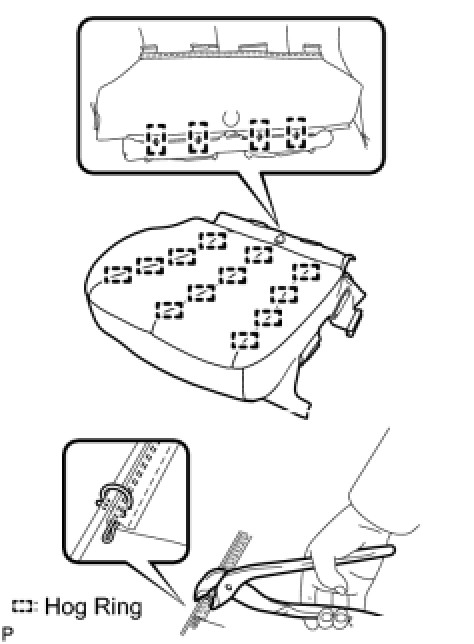

16. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Except Sports Seat Type)

(a) Using hog ring pliers, install the front separate type seat cushion cover to the front separate type seat pad with 16 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

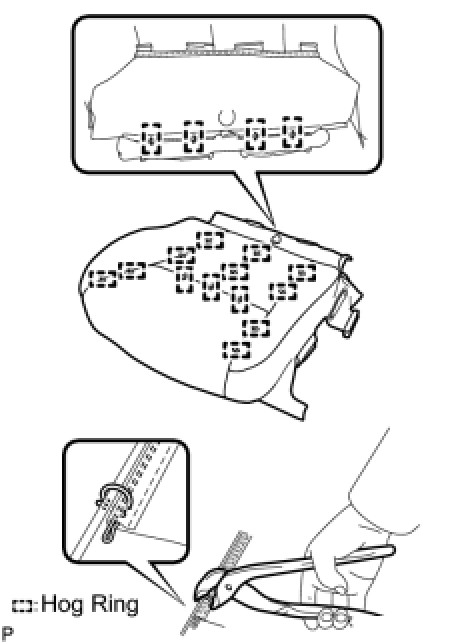

17. INSTALL FRONT SEPARATE TYPE SEAT CUSHION COVER (for Sports Seat Type)

(a) Using hog ring pliers, install the front separate type seat cushion cover to the front separate type seat pad with 17 new hog rings.





NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

18. INSTALL FRONT SEPARATE TYPE SEAT CUSHION ASSEMBLY

19. INSTALL FRONT POWER SEAT SWITCH

20. INSTALL LOWER SEAT TRACK SPACER

21. INSTALL FRONT INNER SEAT CUSHION SHIELD

22. INSTALL FRONT LUMBAR POWER SEAT SWITCH

23. INSTALL FRONT SEAT INNER BELT ASSEMBLY Installation

24. INSTALL FRONT INNER NO. 1 SEAT CUSHION SHIELD

25. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY

26. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

27. INSTALL RECLINING POWER SEAT SWITCH KNOB
