Reassembly

SEAT: FRONT SEAT ASSEMBLY (for Manual Seat): REASSEMBLY

NOTICE:
Wear protective gloves. Sharp areas on the seat frame and adjuster may injure your hands.

1. INSTALL SEAT POSITION SENSOR (for Driver Side) Installation

2. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH

3. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH

4. INSTALL RECLINING ADJUSTER INSIDE COVER LH

5. INSTALL RECLINING ADJUSTER INSIDE COVER RH

6. INSTALL RECLINING ADJUSTER INSIDE COVER LH

7. INSTALL RECLINING ADJUSTER INSIDE COVER RH

8. INSTALL FRONT SEAT SIDE AIRBAG ASSEMBLY Installation

9. INSTALL FRONT SEPARATE TYPE SEAT BACK COVER

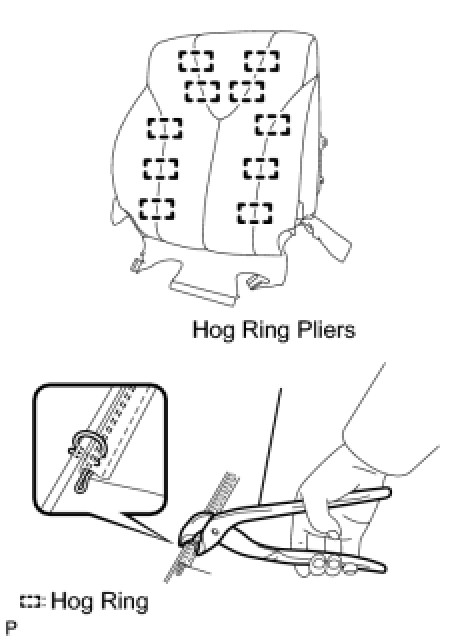

(a) Using hog ring pliers, install the front separate type seat back cover to the front separate type seat back pad with 10 new hog rings.

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

10. INSTALL FRONT SEAT BACK COVER WITH PAD

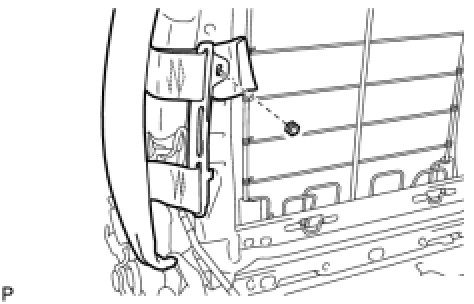

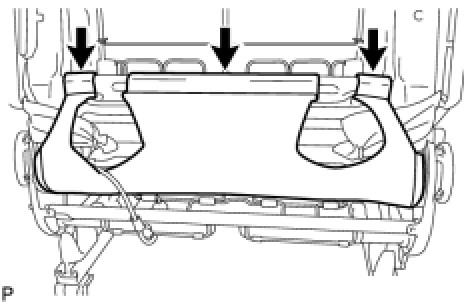

(a) Fully cover the airbag with the 2 seat back cover brackets and tighten the nut.

Torque : 5.5 Nm (56 kgf-cm, 49 in-lbf)

NOTICE:
* For vehicles with side airbags, the seat back cover must be securely installed. Otherwise, the side airbags may not deploy properly.
* Make sure that the strap is not twisted after installing the bracket.
* Install the bracket securely.

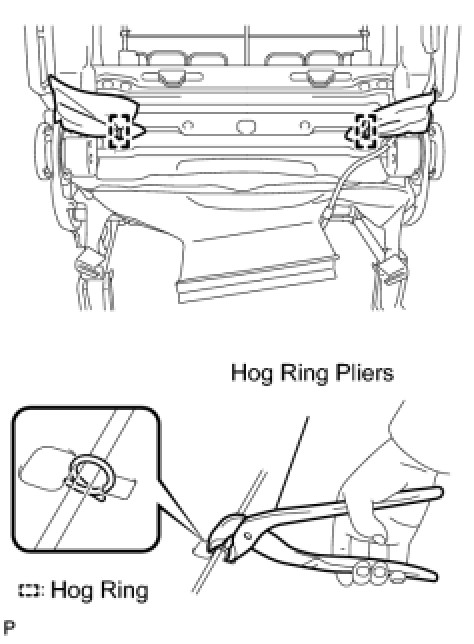

(b) Using hog ring pliers, install the seat back cover (with pad) to the seat frame with 2 new hog rings, and attach the hooks.

11. INSTALL FRONT SEAT HEADREST SUPPORT

12. INSTALL FRONT SEAT BACK BOARD SUB-ASSEMBLY

13. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER

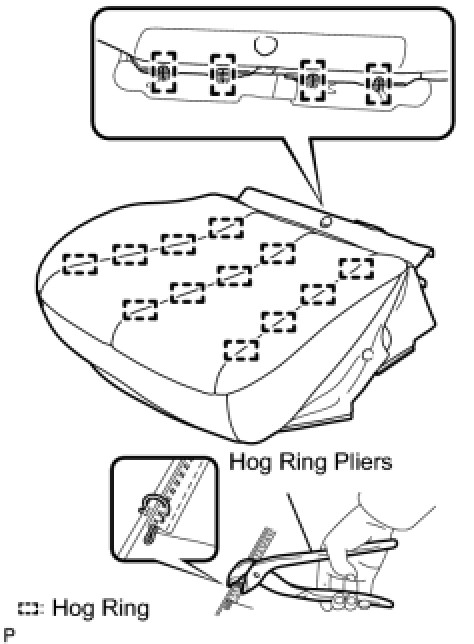

(a) Using hog ring pliers, install the separate type front seat cushion cover to the seat back pad with 16 new hog rings.

NOTICE:
* Be careful not to damage the cover.
* When installing the hog rings, take care to minimize wrinkles as much as possible.

14. INSTALL FRONT SEAT CUSHION COVER WITH PAD

15. INSTALL FRONT INNER SEAT CUSHION SHIELD

16. INSTALL FRONT SEAT INNER BELT ASSEMBLY Installation

17. INSTALL LOWER SEAT TRACK SPACER

18. INSTALL FRONT SEAT CUSHION SHIELD (for Driver Seat)

19. INSTALL RECLINING ADJUSTER RELEASE HANDLE

20. INSTALL VERTICAL ADJUSTING HANDLE NO. 2 (for Driver Seat)

21. INSTALL VERTICAL ADJUSTER COVER LH (for Driver Seat)
