Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Temperature Element >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

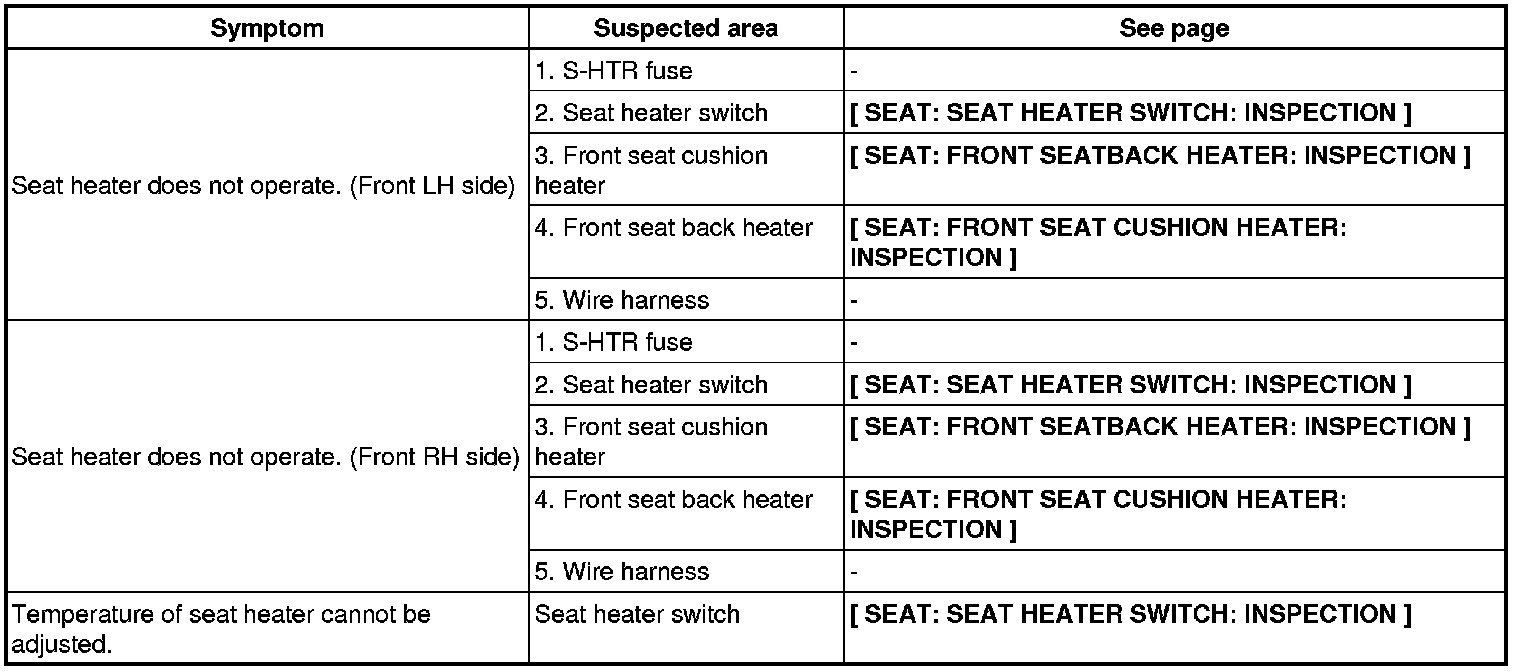

SEAT: SEAT HEATER SYSTEM: PROBLEM SYMPTOMS TABLE

SEAT HEATER SYSTEM:
