Seats: Description and Operation

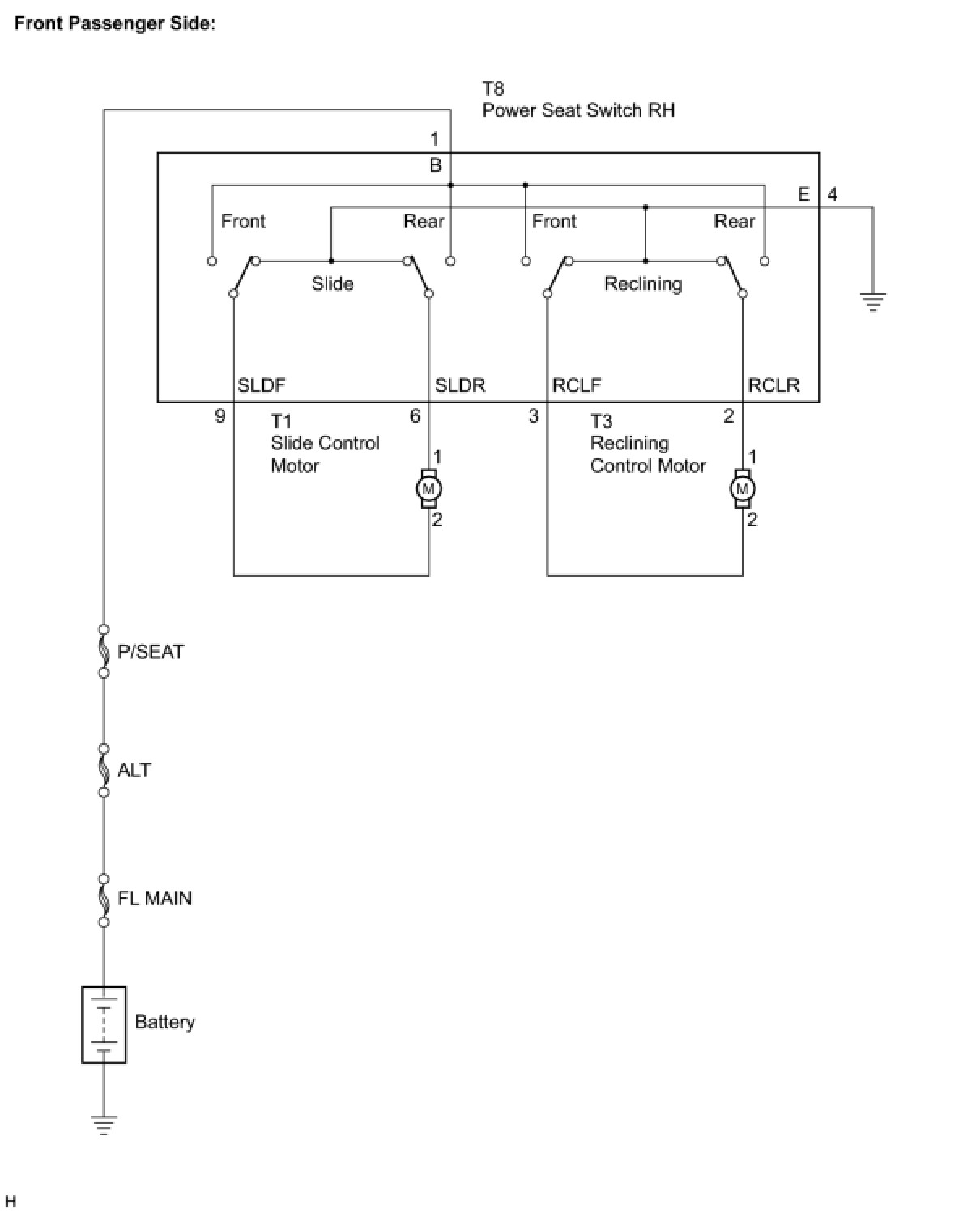

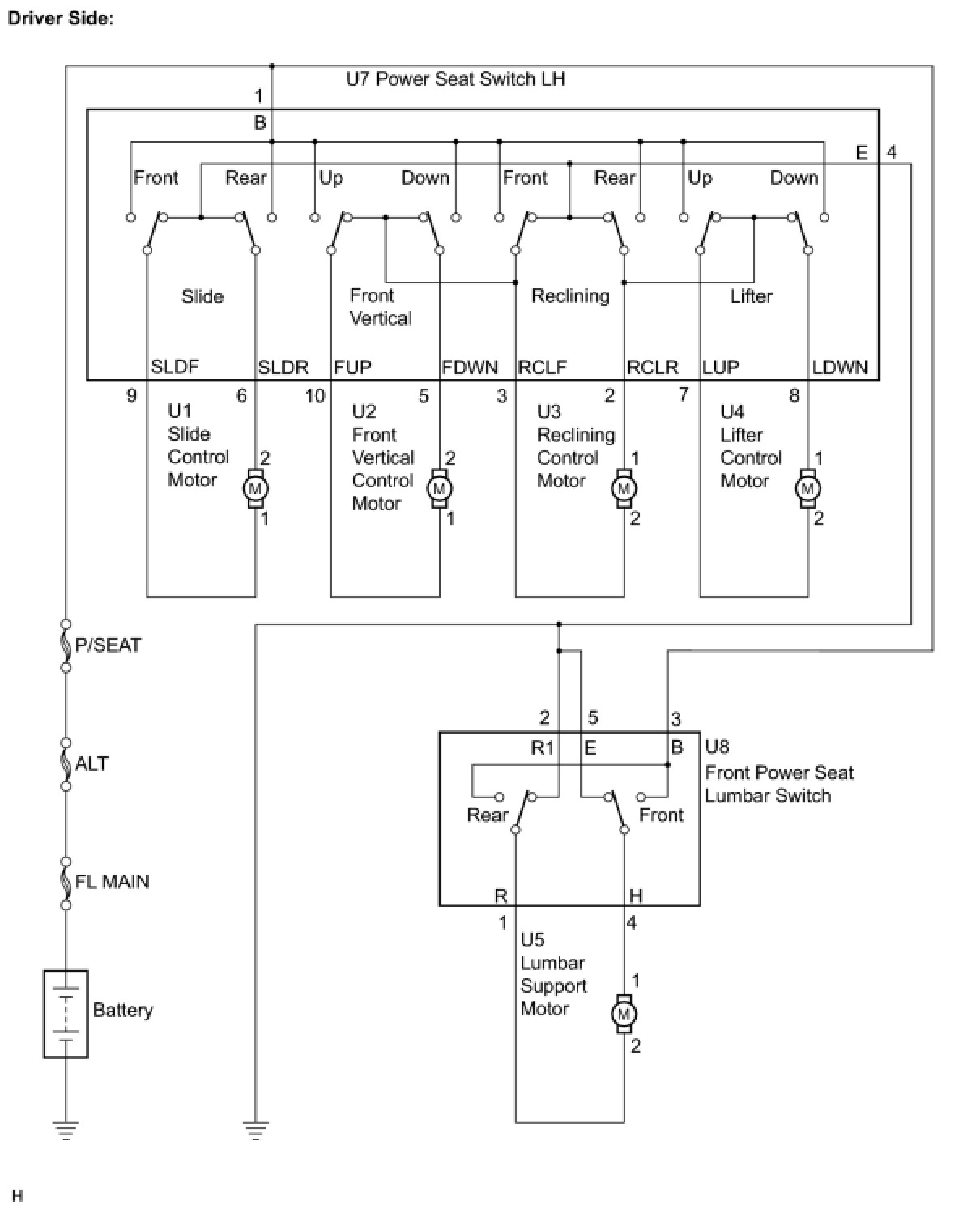

SEAT: FRONT POWER SEAT CONTROL SYSTEM: SYSTEM DIAGRAM










1. FRONT POWER SEAT CONTROL SYSTEM DESCRIPTION

The driver seat and front passenger seat are equipped with slide, reclining, lifter, front vertical, and lumbar support adjustment functions.

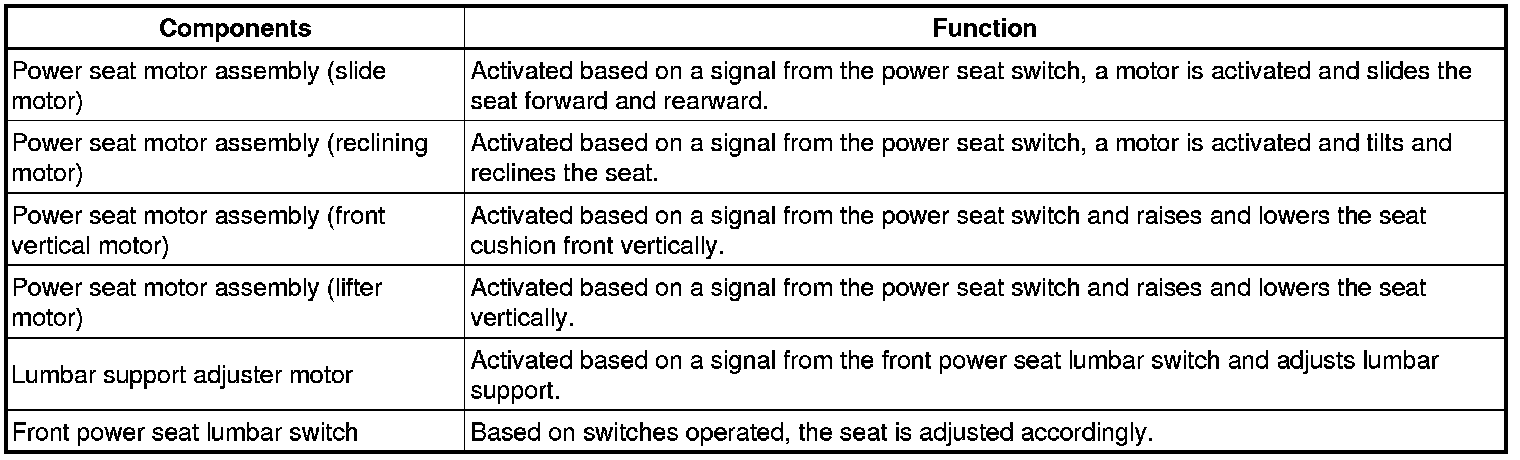

2. FUNCTION OF MAIN COMPONENTS

The following functions are available:
