Reassembly

SLIDING ROOF: SLIDING ROOF HOUSING: REASSEMBLY

1. INSTALL ROOF WIND DEFLECTOR PANEL SUB-ASSEMBLY

(a) Engage the 2 pins to install the roof wind deflector panel sub-assembly.





2. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY

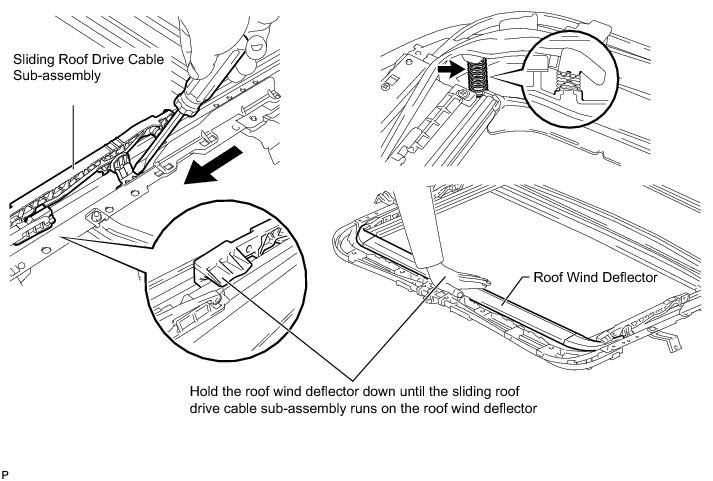

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.





NOTICE:
Make sure that the spring indicated by the arrow in the illustration is securely installed.

HINT
Hold the roof wind deflector down, as shown in the illustration, until the sliding roof drive cable sub-assembly runs on the roof wind deflector.

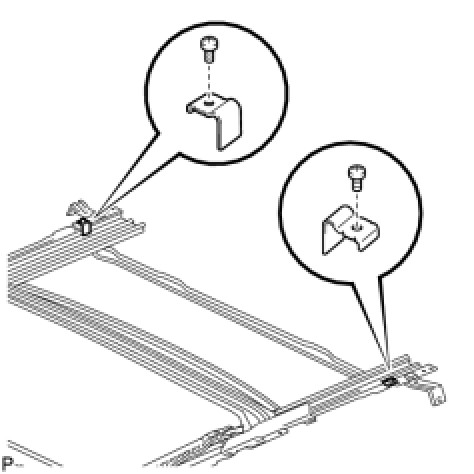

(b) Install the 2 sliding roof side stoppers with the 2 screws.





Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

3. INSTALL REAR ROOF DRIP CHANNEL





(a) Move the rear roof drip channel forward from the rear side of the sliding roof housing, and install the rear roof drip channel to the sliding roof housing.

(b) Engage the 2 claws and install the rear roof drip channel.

4. ADJUST FULLY CLOSED POSITION

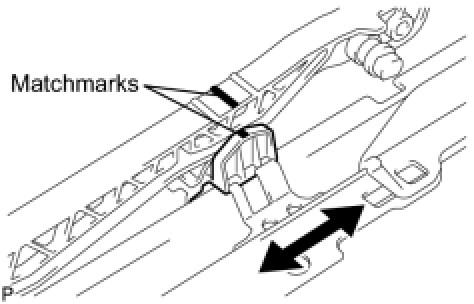

(a) Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.





HINT
Tape the screwdriver tip before use.

5. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

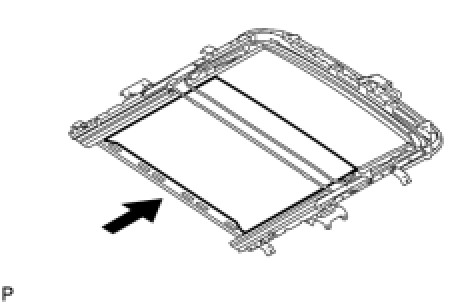

(a) Insert the sunshade trim into the sliding roof housing sub-assembly.

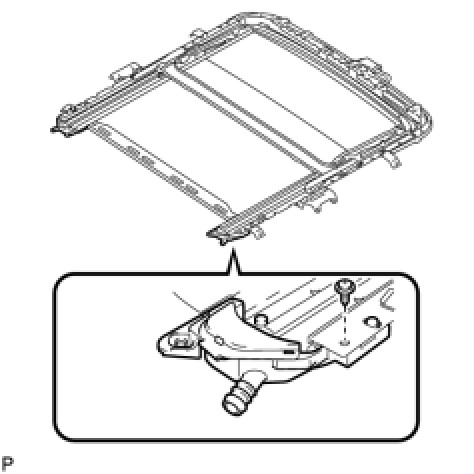

(b) Install the sliding roof piece sub-assemblies LH and RH with the 2 screws.





Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

6. INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY

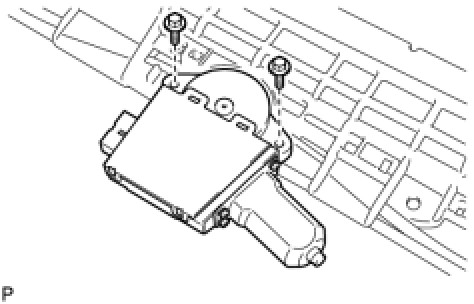

(a) Install the sliding roof drive gear sub-assembly with the 2 bolts.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(b) Engage the claw and install the sliding roof room light bracket.
