Sunroof / Moonroof: Description and Operation

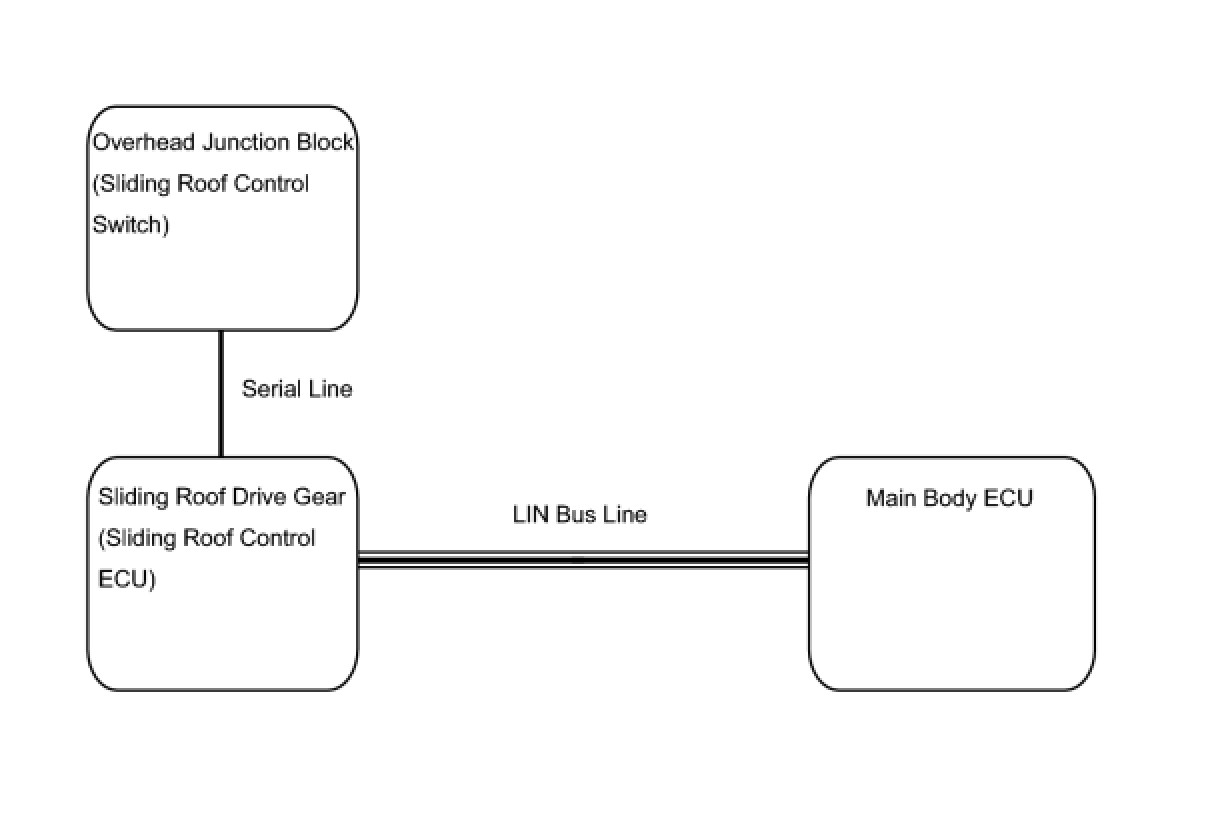

SLIDING ROOF: SLIDING ROOF SYSTEM: SYSTEM DIAGRAM





Communication table






1. GENERAL

This system has the following functions: manual slide open and close; auto slide open and close; manual tilt up and down; auto tilt up and down; jam protection; and key off operation.

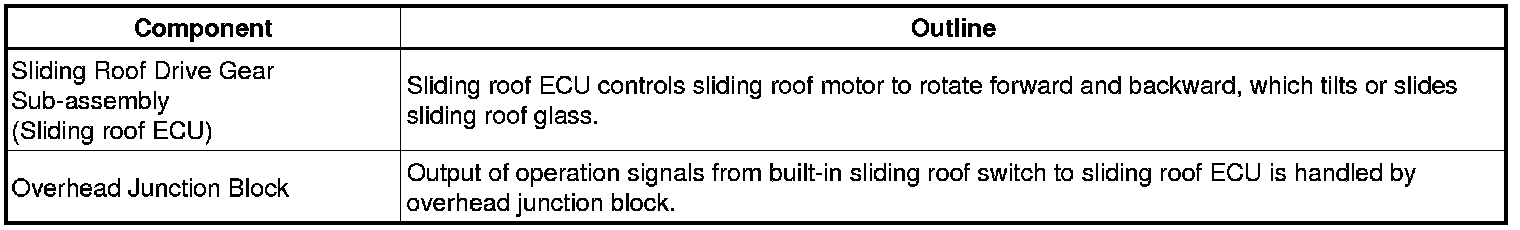

2. FUNCTION OF MAIN COMPONENT





3. SYSTEM OPERATION

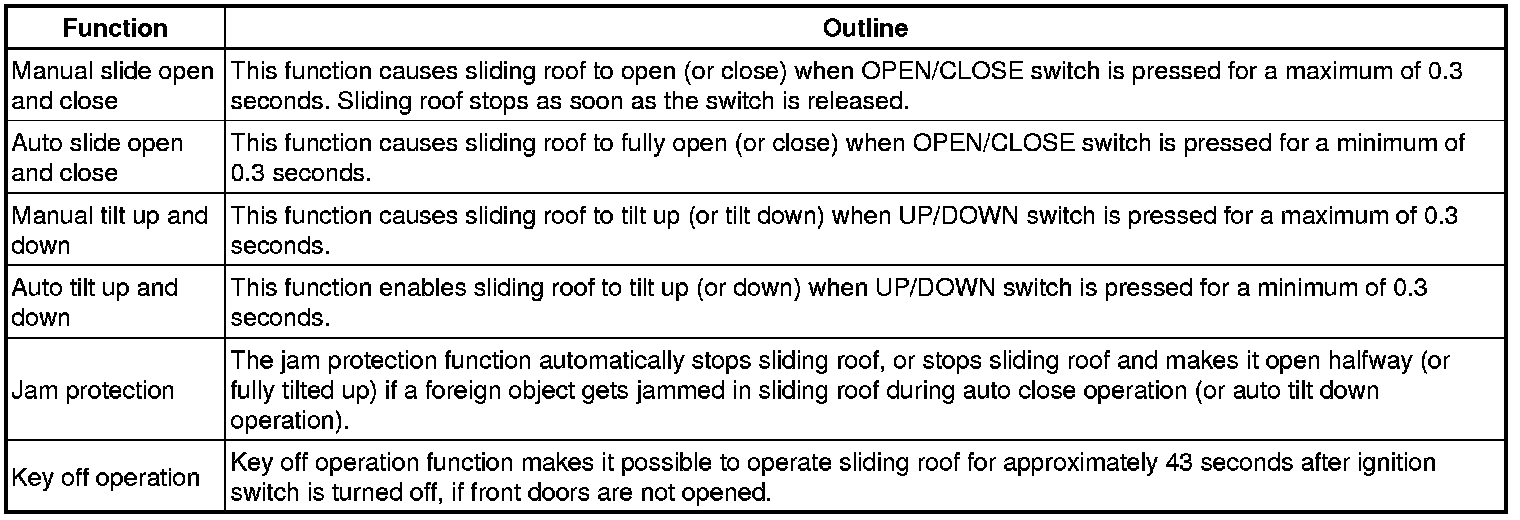

The sliding roof has the following features:
