Replacement

MIRROR: OUTER REAR VIEW MIRROR GLASS: REPLACEMENT

1. REMOVE OUTER REAR VIEW MIRROR GLASS (for TMC Made)

(a) Push the upper part of the mirror surface and tilt it.

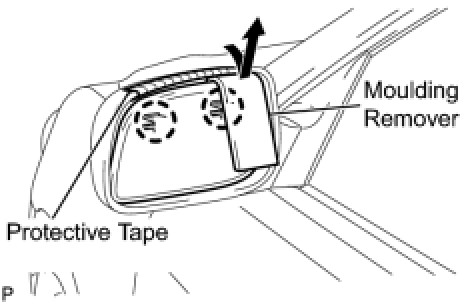

(b) Using a moulding remover, disengage the 2 claws at the lower part of the outer rear view mirror, and remove the outer rear view mirror glass.

(c) with Mirror Heater:

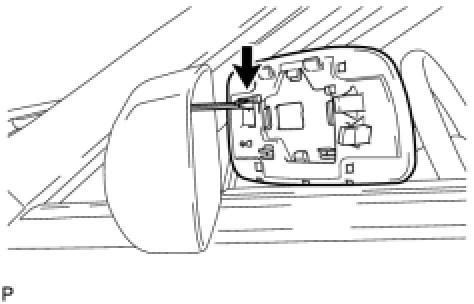

(1) Disconnect the connector and remove the outer rear view mirror glass.





2. REMOVE OUTER REAR VIEW MIRROR GLASS (for TMMK Made)

(a) Push the lower part of the mirror surface and tilt it.

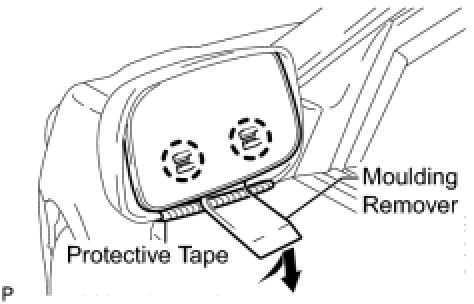

(b) Using a moulding remover, disengage the 2 claws at the upper part of the outer rear view mirror, and remove the outer rear view mirror glass.

(c) with Mirror Heater:

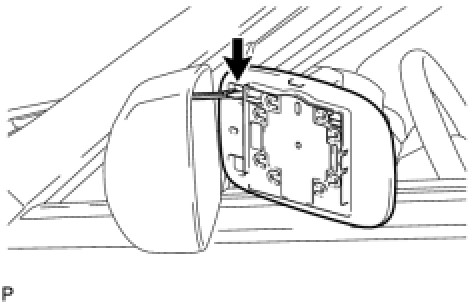

(1) Disconnect the connector and remove the outer rear view mirror glass.





3. INSTALL OUTER REAR VIEW MIRROR GLASS (for TMC Made)

(a) with Mirror Heater:

(1) Connect the connector.





(b) Engage the 2 claws on the upper part of the outer rear view mirror glass to the outer rear view mirror.

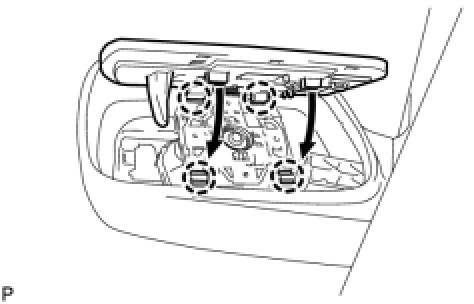

(c) Engage the 2 claws on the lower part of the outer rear view mirror glass to the outer rear view mirror as shown in the illustration.

4. INSTALL OUTER REAR VIEW MIRROR GLASS (for TMMK Made)

(a) with Mirror Heater:

(1) Connect the connector.





(b) Engage the 2 claws on the lower part of the outer rear view mirror glass to the outer rear view mirror.

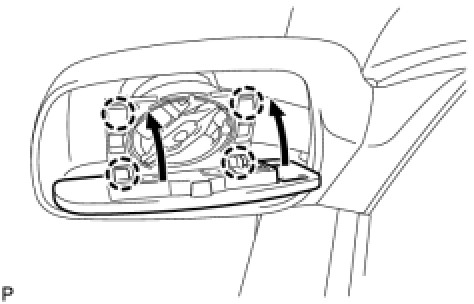

(c) Engage the 2 claws on the upper part of the outer rear view mirror glass to the outer rear view mirror as shown in the illustration.
