Power Locks: Description and Operation

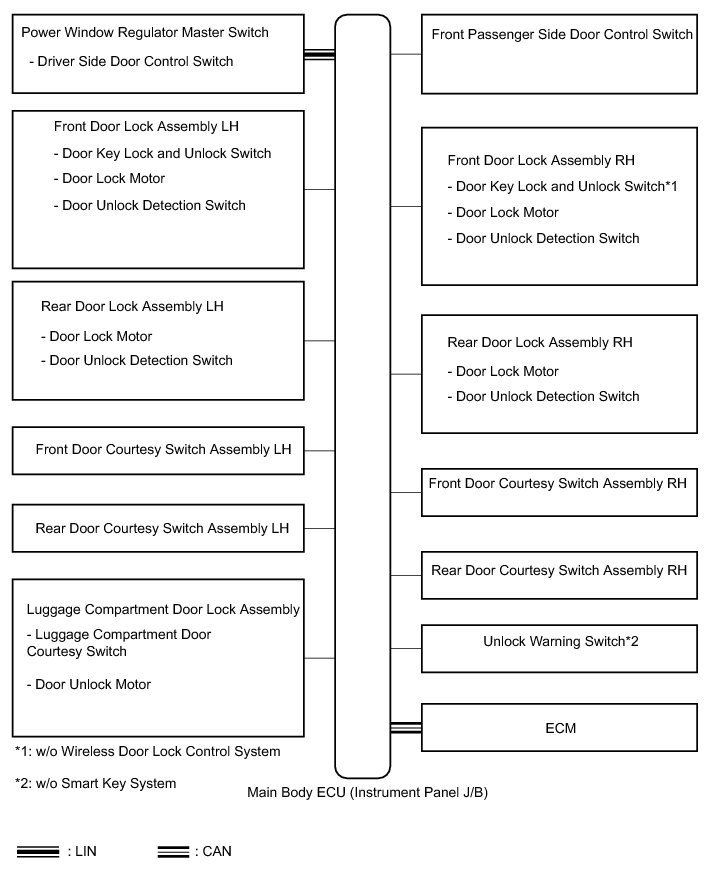

DOOR LOCK: POWER DOOR LOCK CONTROL SYSTEM: SYSTEM DIAGRAM










1. POWER DOOR LOCK CONTROL SYSTEM DESCRIPTION

(a) The power door lock system locks/unlocks all the doors.

The master switch and the door control switch on the front passenger door send lock/unlock request signals to the main body ECU. Then, the main body ECU sends these request signals to the lock motors in each door to lock/unlock all the doors at once in response to the inputs.

Operating the driver door lock using a mechanical key sends request signals to lock/unlock the doors to the main body ECU. "2-step unlock function" is optional for unlocking procedure of the key-linked lock for the driver door.

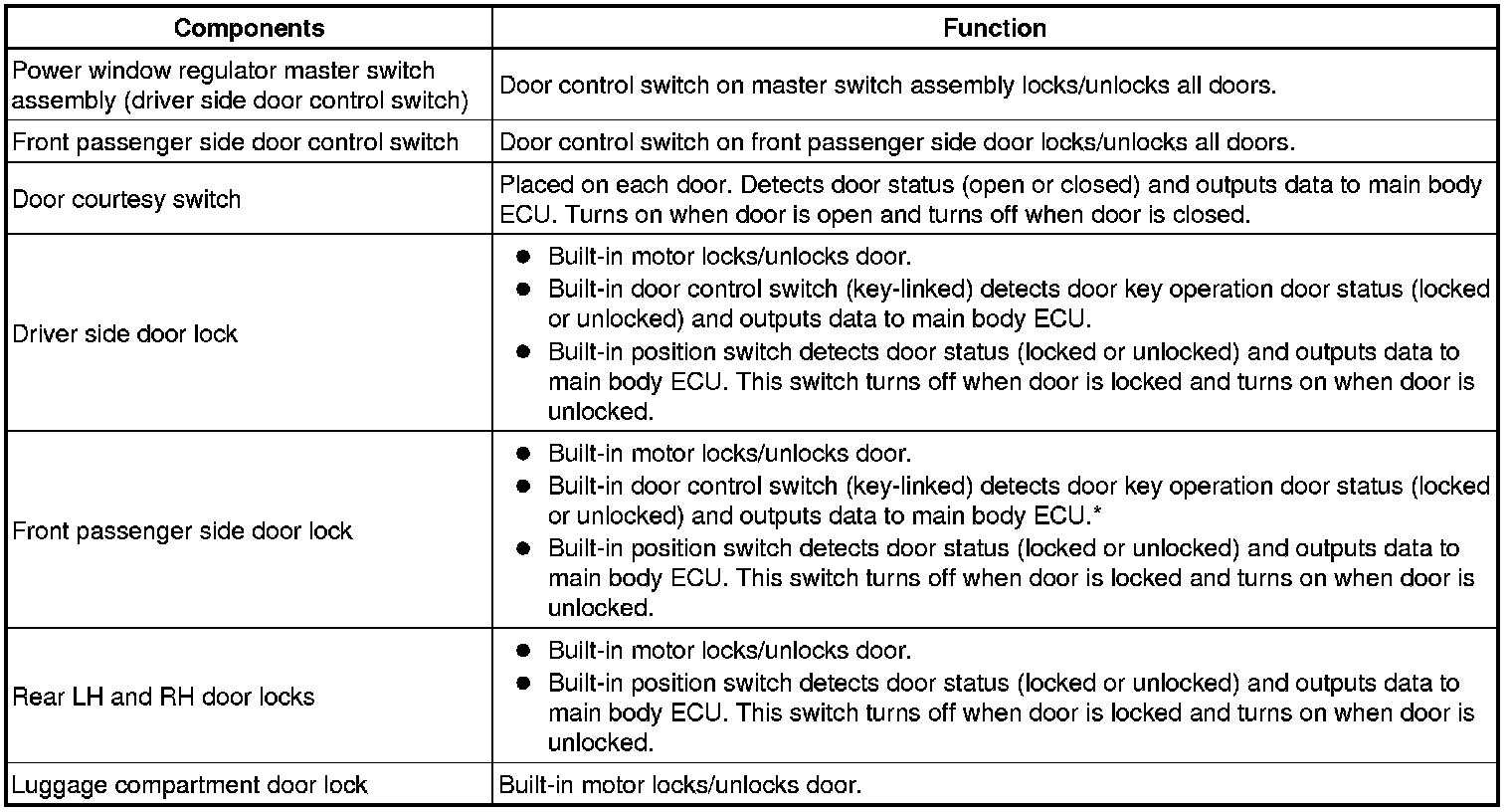

2. FUNCTION OF MAIN COMPONENT





*: w/o Wireless Door Lock Control System

3. SYSTEM FUNCTION

HINT
The following functions default settings are ON. Some of these functions can be customized Programming and Relearning.

(a) This system is controlled by the main body ECU. The main body ECU outputs signals to each door lock motor. The power door lock control system has the following functions:





*1: w/ Smart Key System

*2: w/o Smart Key System

*3: The default setting for Korea is OFF.

*4: The default setting except for Korea is OFF.
