Wireless Door Lock Control System (w/ Smart Key System)

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): TERMINALS OF ECU

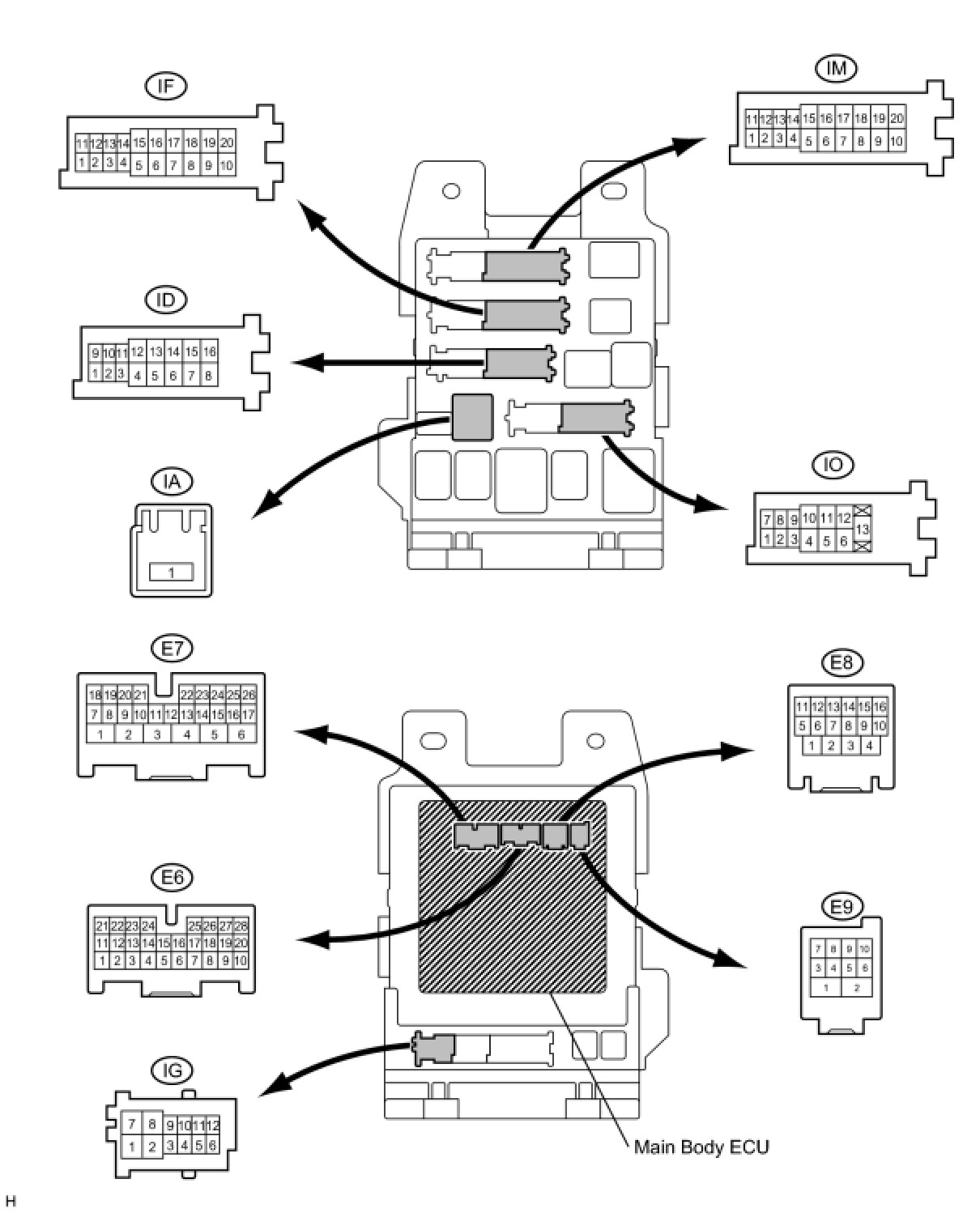

1. CHECK MAIN BODY ECU (INSTRUMENT PANEL J/B)

(a) Disconnect the main body ECU (instrument panel J/B) connectors.

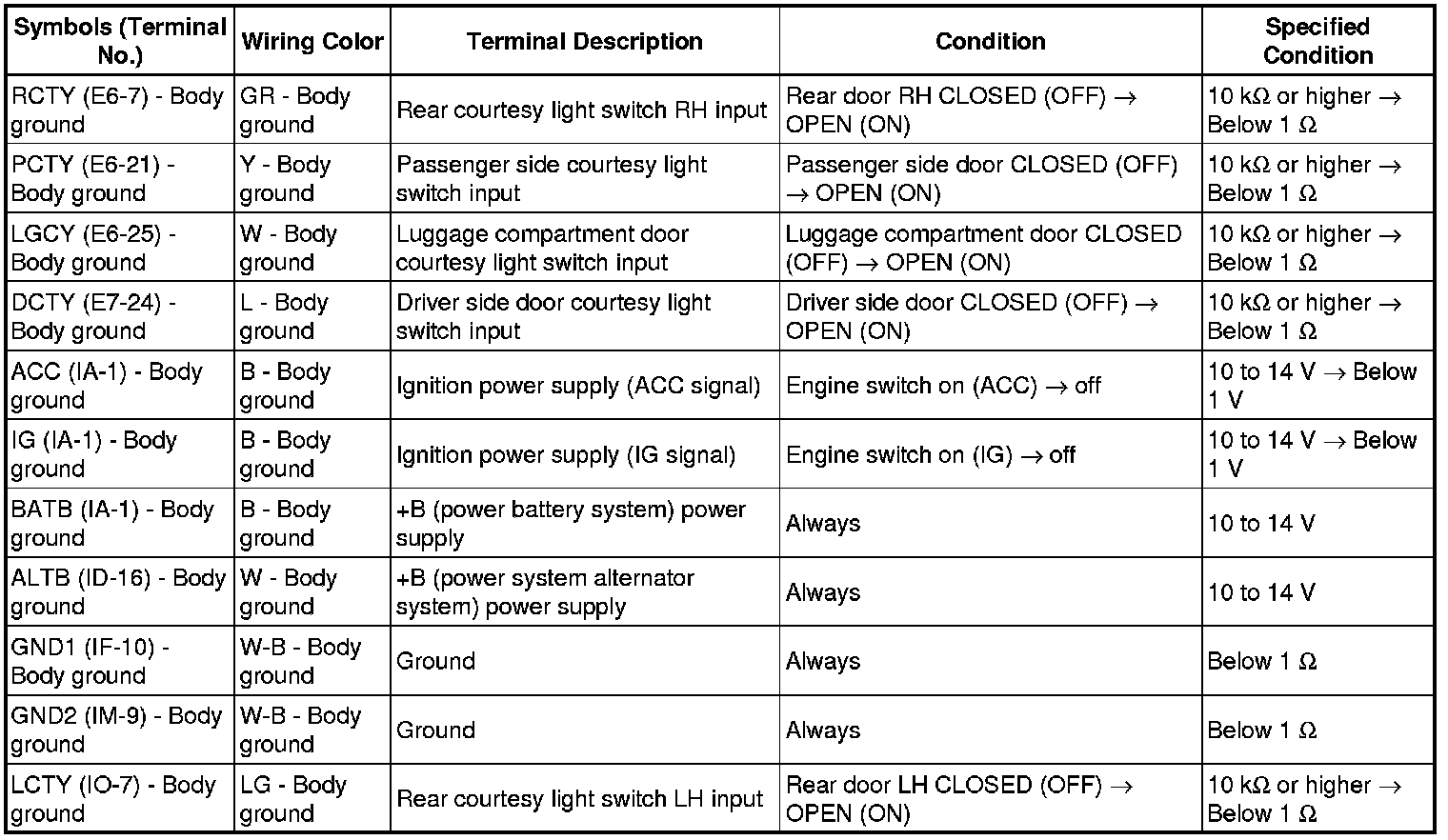

(b) Measure the resistance and voltage between each terminal of the wire harness side connectors and body ground.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the main body (instrument panel J/B) connectors.

(d) Measure the voltage between each terminal of the wire harness side connectors and body ground.





HINT
* *1: When operating the motor.
* *2: When operating the answer back function.

2. CHECK CERTIFICATION ECU ASSEMBLY

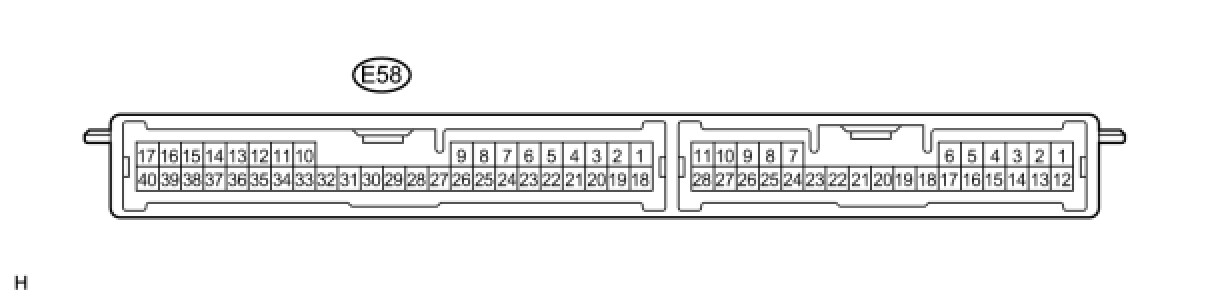

(a) Disconnect the E58 ECU connector.

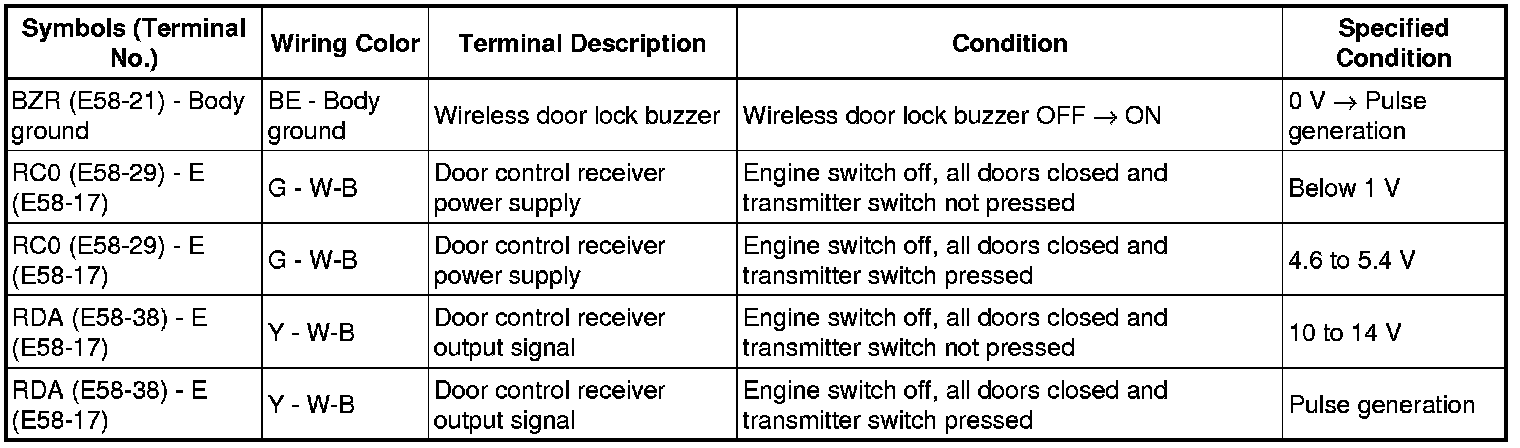

(b) Measure the voltage and resistance of the wire harness side connector.





* If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the E58 ECU connector.

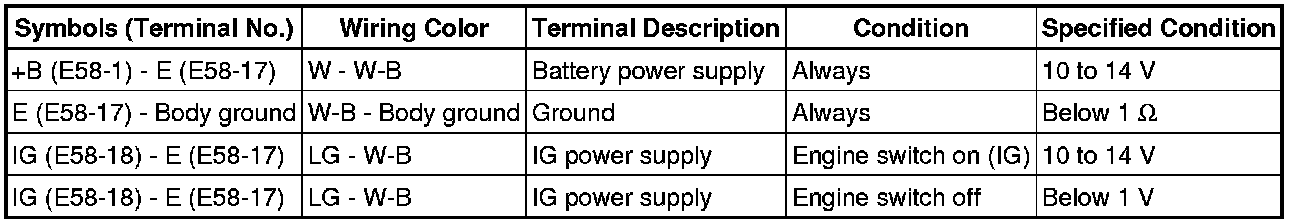

(d) Measure the voltage of the connector.





* If the result is not as specified, the ECU may have a malfunction.
