Power Source Circuit

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): Power Source Circuit
- Power Source Circuit

DESCRIPTION

The certification ECU provides power for the door control receiver operation.

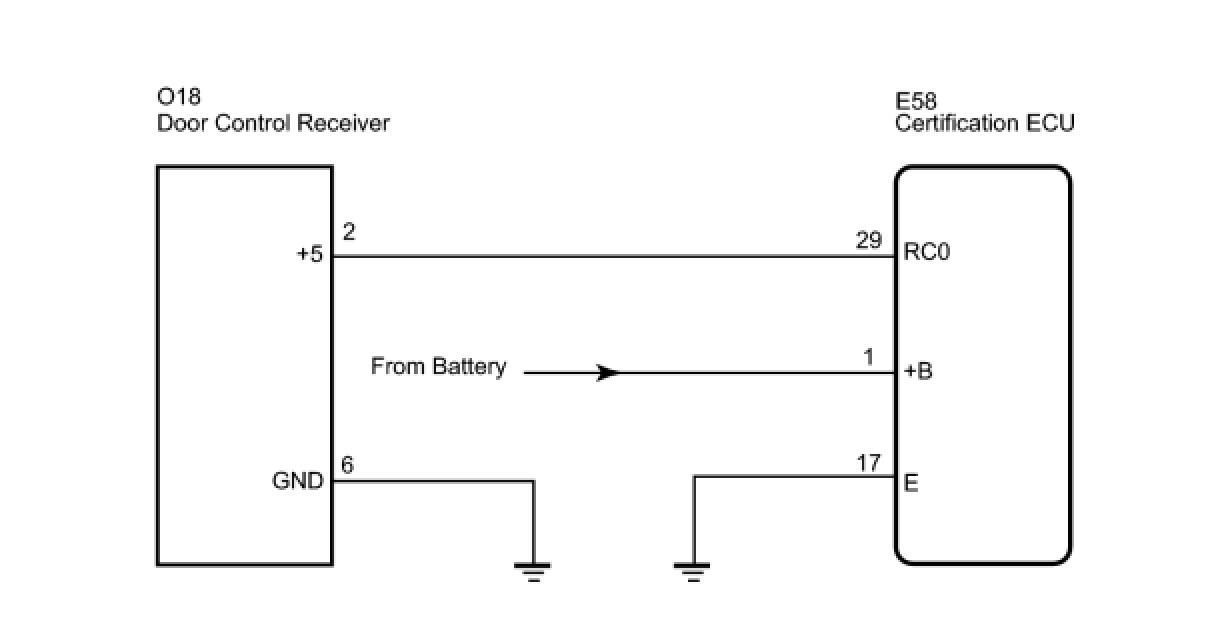

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

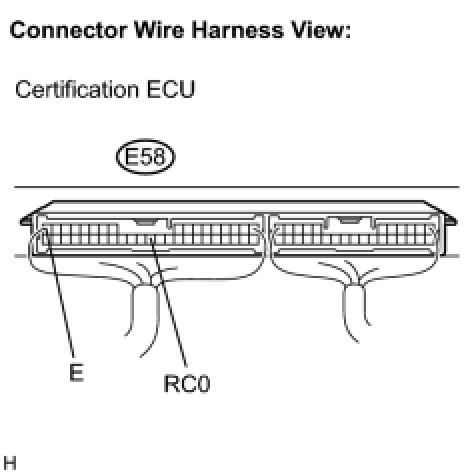

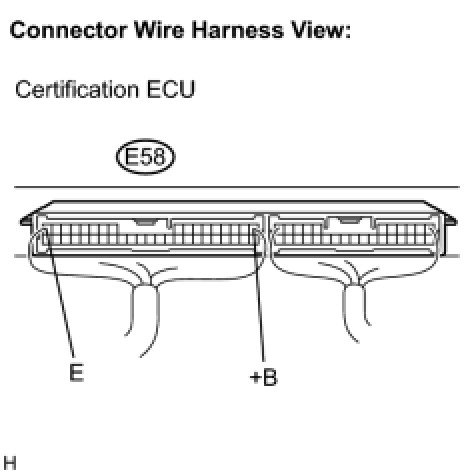

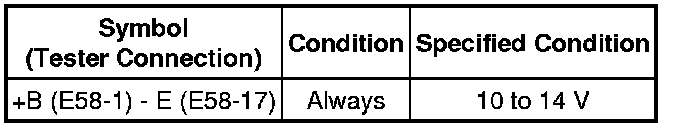

1. INSPECT CERTIFICATION ECU (+B TERMINAL)

(a) Measure the voltage according to value(s) in the table below.





Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

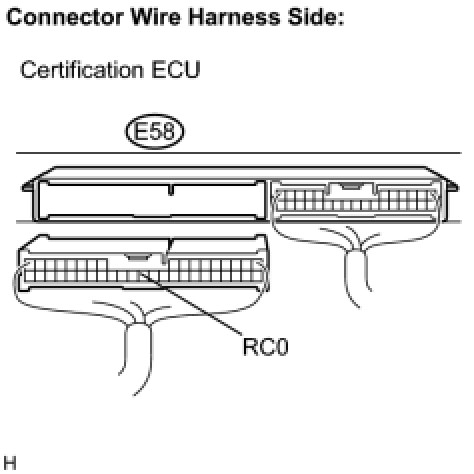

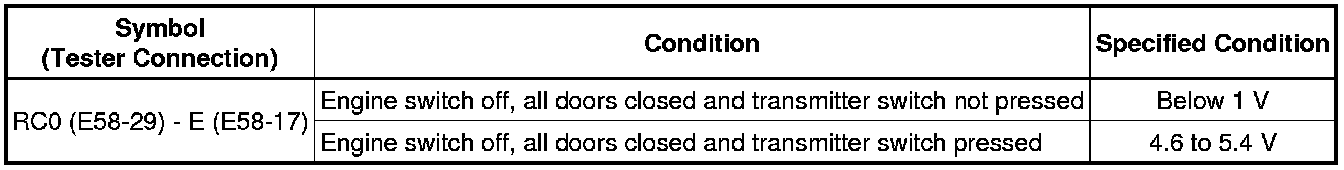

2. INSPECT CERTIFICATION ECU (RC0 TERMINAL)

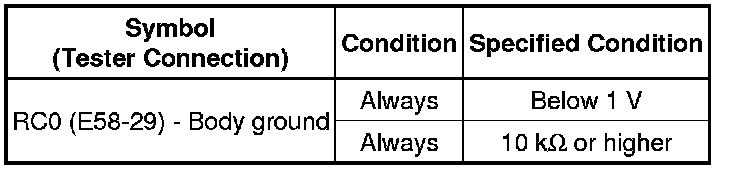

(a) Measure the voltage according to value(s) in the table below.





Standard voltage:





OK -- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - DOOR CONTROL RECEIVER)
NG -- Continue to next step.

3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY - BODY GROUND)

(a) Disconnect the E58 certification ECU connector.

(b) Measure the voltage and resistance according to value(s) in the table below.





Standard:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE CERTIFICATION ECU

4. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - DOOR CONTROL RECEIVER)

(a) Disconnect the O18 door control receiver connector.

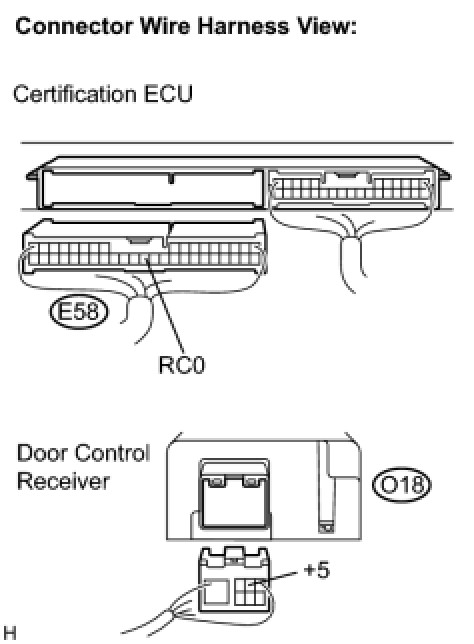

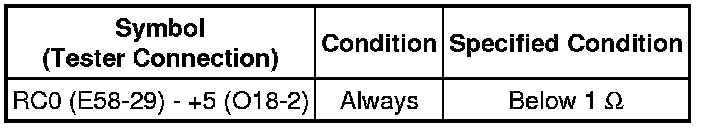

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

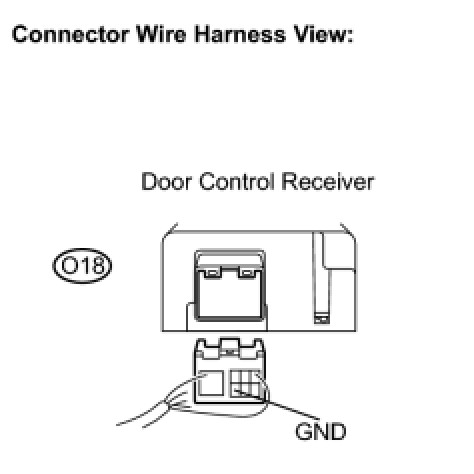

5. CHECK HARNESS AND CONNECTOR (BODY GROUND)

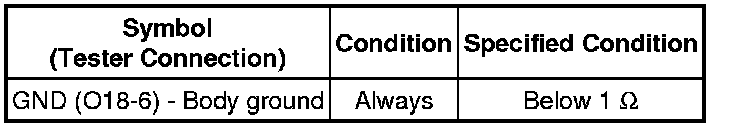

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE Wireless Door Lock Control System (w/ Smart Key System)
