Installation

INTERIOR: REAR CONSOLE BOX: INSTALLATION

1. INSTALL CONSOLE BOX ASSEMBLY

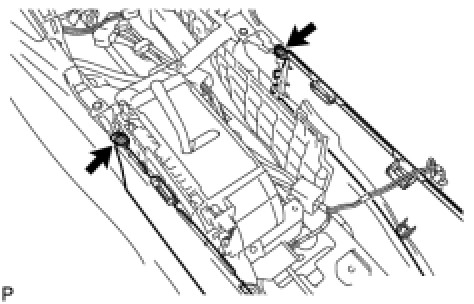

(a) Install the 2 screws.

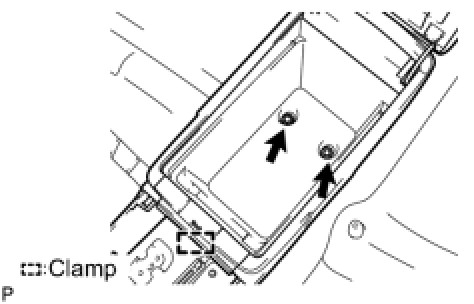

(b) Install the console box assembly with the 2 bolts.





(c) Engage the clamp.

2. INSTALL CONSOLE BOX CARPET Installation

3. INSTALL CONSOLE BOX POCKET Installation

4. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Automatic Transaxle) Installation

5. INSTALL UPPER CONSOLE REAR PANEL SUB-ASSEMBLY (for Manual Transaxle) Installation

6. INSTALL FLOOR SHIFT POSITION INDICATOR HOUSING SUB-ASSEMBLY Installation

7. INSTALL UPPER CONSOLE PANEL (for Manual Transaxle) Installation

8. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

9. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL GARNISH Installation

10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle) Installation

11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
