Canada - Interior - Floor Mat Installation/Precautions

Bulletin
TSB3360R

Issue Date
February 4, 2010

Market
Canada

Title
FLOOR MAT INSTALLATION DURING PDS

Component
GENERAL INFORMATION

Models
'11 Applicable Toyota Models

TSB REVISION NOTICE:
- April 5, 2010: The information contained in this TSB supersedes all previous versions.
Previous versions of this TSB should be discarded.

INTRODUCTION:
2011 model year vehicles are equipped with driver's side floor mat retaining clips to secure the floor mat in the correct position. In addition, some models may utilize retaining clips for passenger's side floor mats as well. Attach the driver's side and passenger's side (if applicable) floor mat to the vehicle carpet using the floor mat retaining clips during Pre-Delivery Service (PDS).

CAUTION:
- Always verify the floor mat to assure it is designed specifically for the model and model year it is being installed in.
- ONLY use a floor mat that can be retained using the retaining clips. All OEM Toyota floor mats are specifically designed to fit correctly and be retained using the retaining clips.
- Make sure the driver's side floor mat is properly placed on the vehicle carpet and secured with the retaining clips. If the floor mat is NOT properly placed and secured, it could slip and interfere with the movement of the pedals during driving and may cause an accident.
- Verify the operation of the accelerator, brake, and clutch (if equipped) pedals and clearance to the mat.
- NEVER install more than one floor mat at a time in the driver's seating position.
- If applicable, any secondary set of floor mats (based upon customer preference, such as the all weather floor mats or other floor mats) MUST be placed in the trunk/cargo area with all the packaging material intact. DO NOT install the secondary mat on top of the primary floor mat already installed in the driver's seating position.

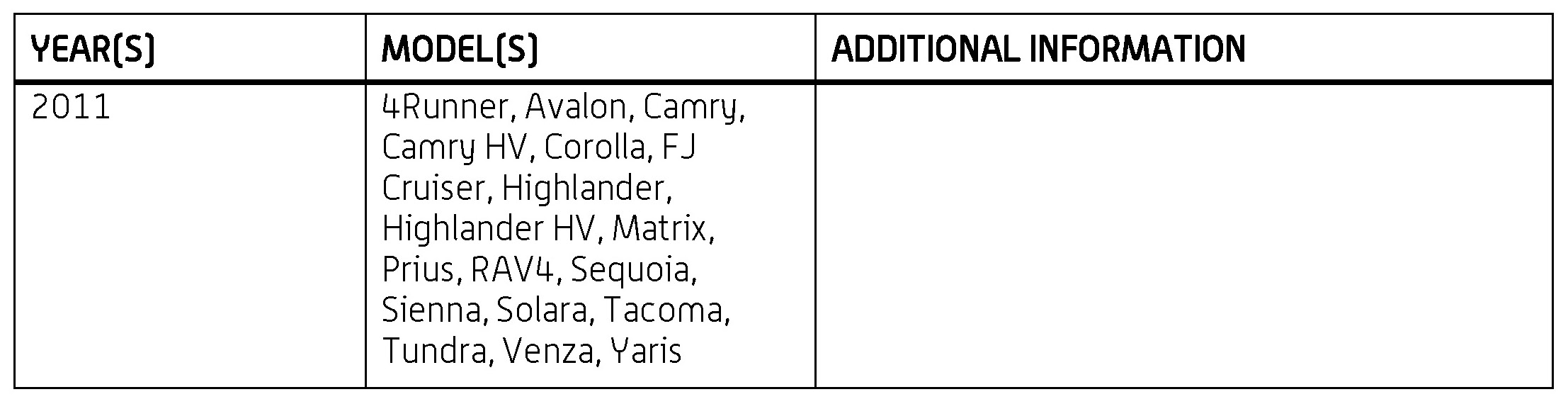

APPLICABLE VEHICLES:

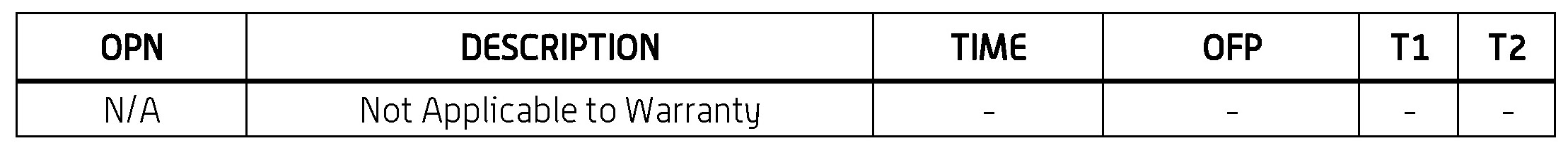

WARRANTY INFORMATION:

REPAIR PROCEDURE:
1. Verify that the driver and passenger side (if applicable) floor mats are for the correct model and model year they are being installed in.

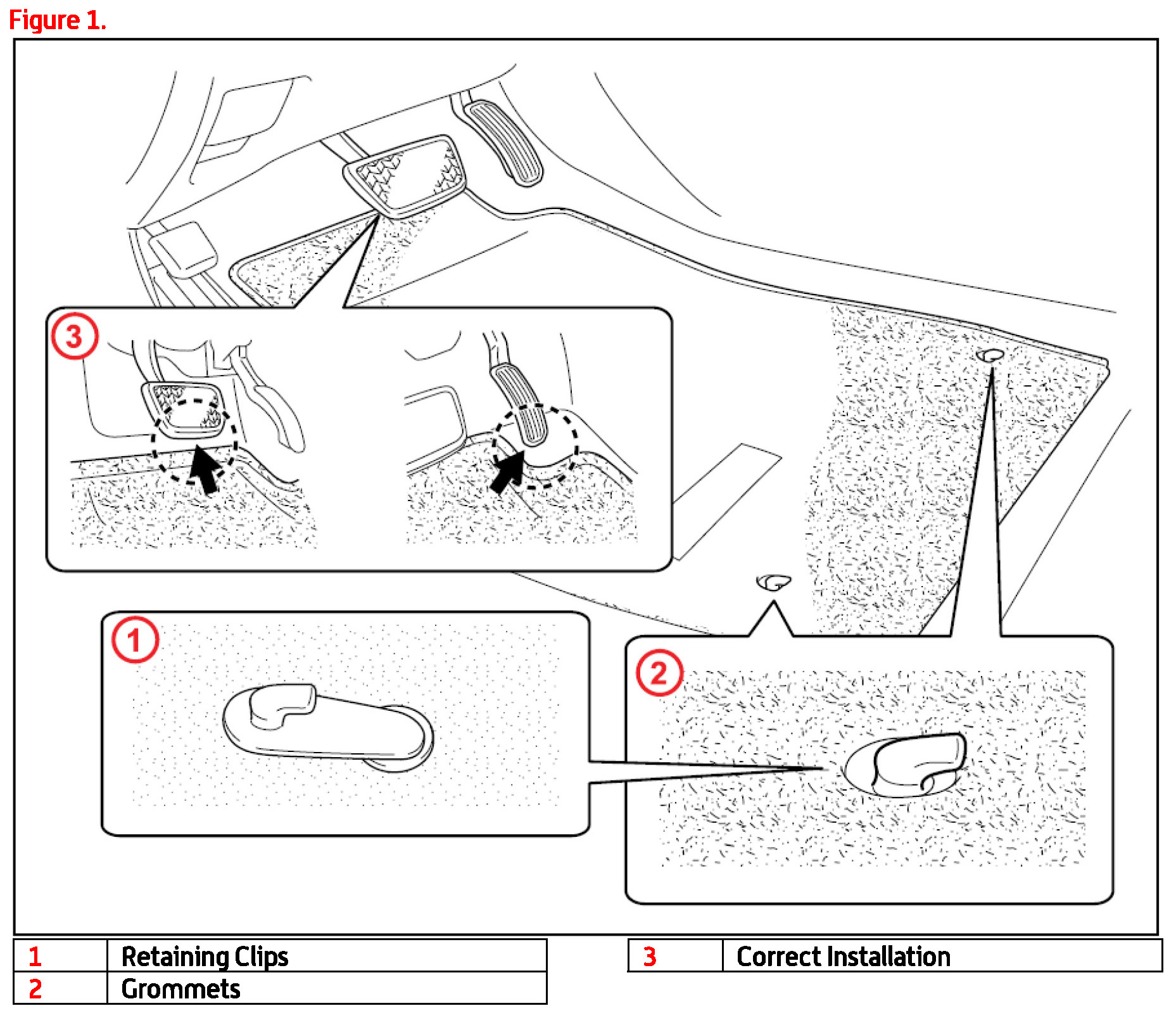

2. Attach the driver and passenger side (if applicable) floor mats to the vehicle carpet using the clips. Secure the mat by inserting the retaining clips through the grommet holes.

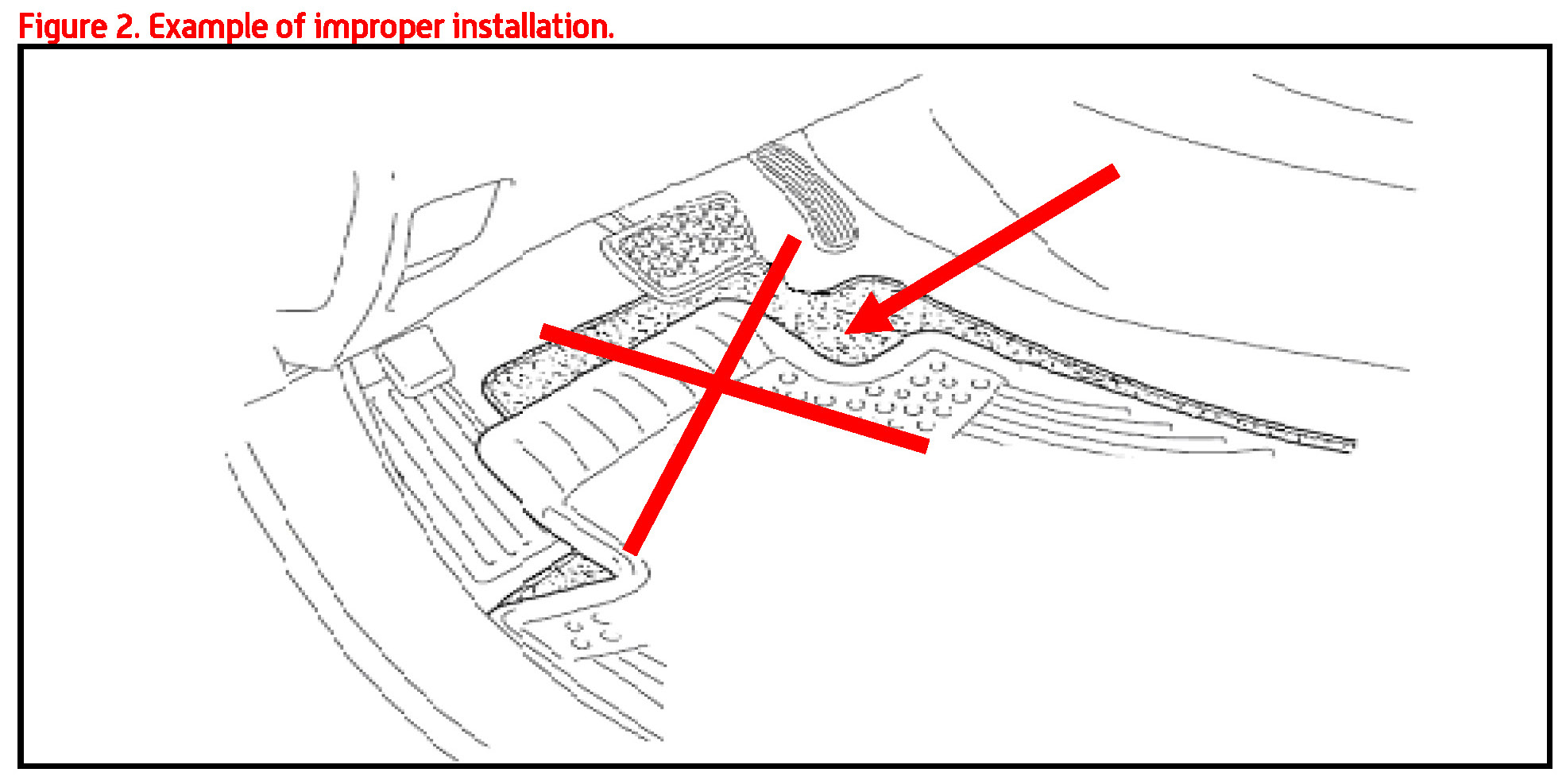

3. Never stack one floor mat over another in the driver's foot area. (Do not stack any floor mat regardless whether the floor mat is a Toyota genuine one or not, or any rubber mat over the floor mat on the driver's side floor.)
4. Verify proper installation.







NOTE:
If applicable, DO NOT remove the beige "Caution" tag from the floor mat.
This should only be removed by the customer.
