Electrical Diagrams

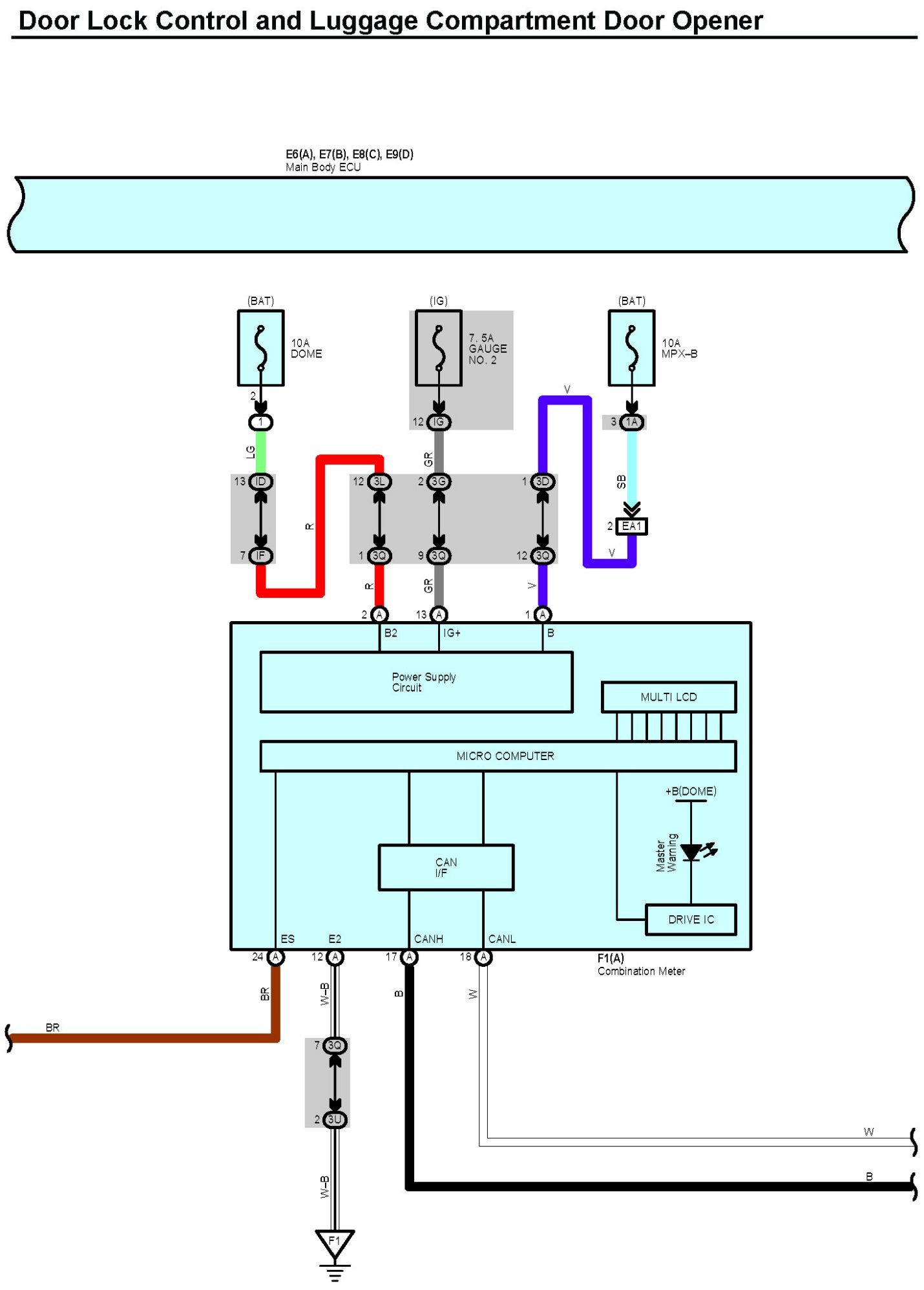

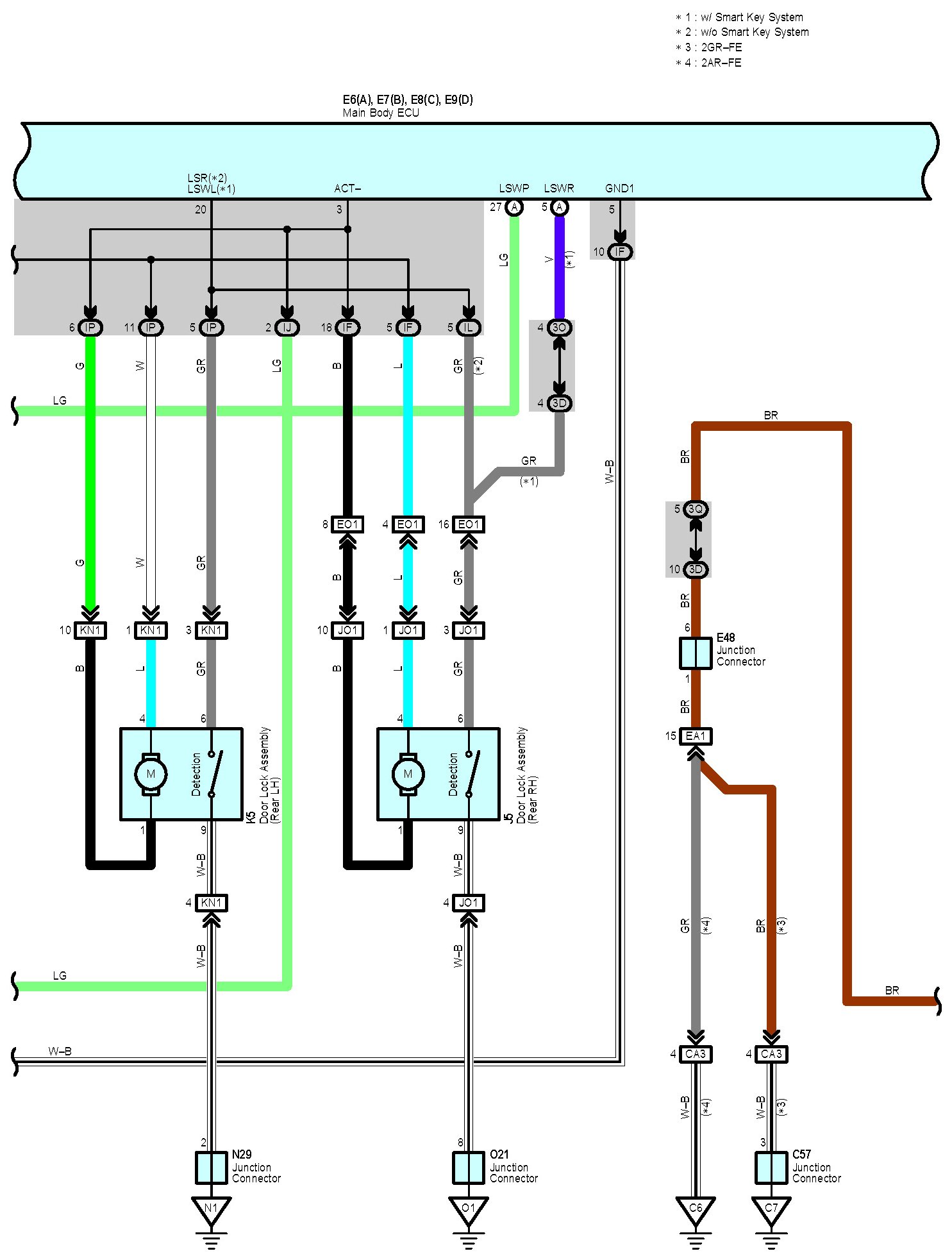

Door Lock Control and Luggage Compartment Door Opener Part 1:

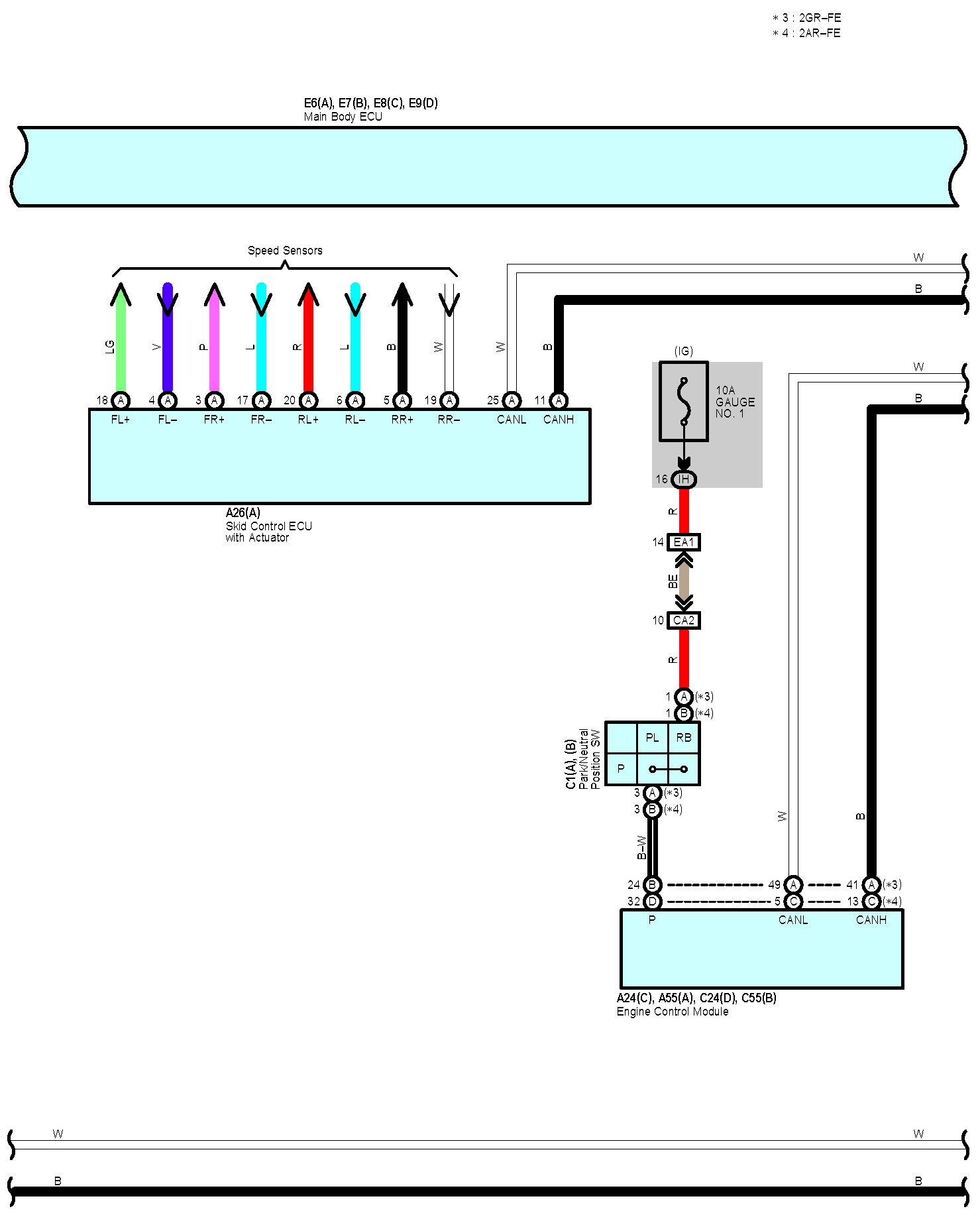

Door Lock Control and Luggage Compartment Door Opener Part 2:

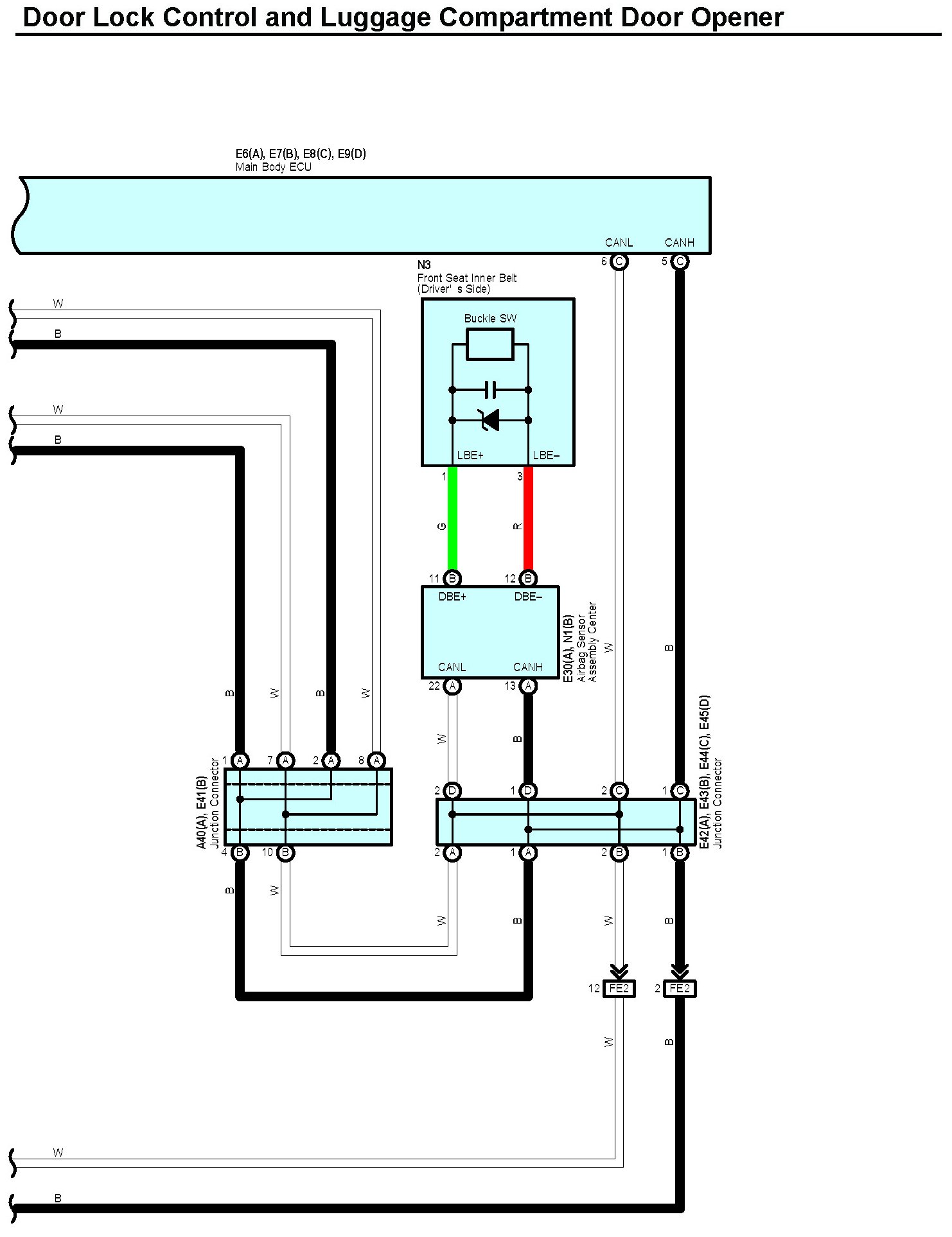

Door Lock Control and Luggage Compartment Door Opener Part 3:

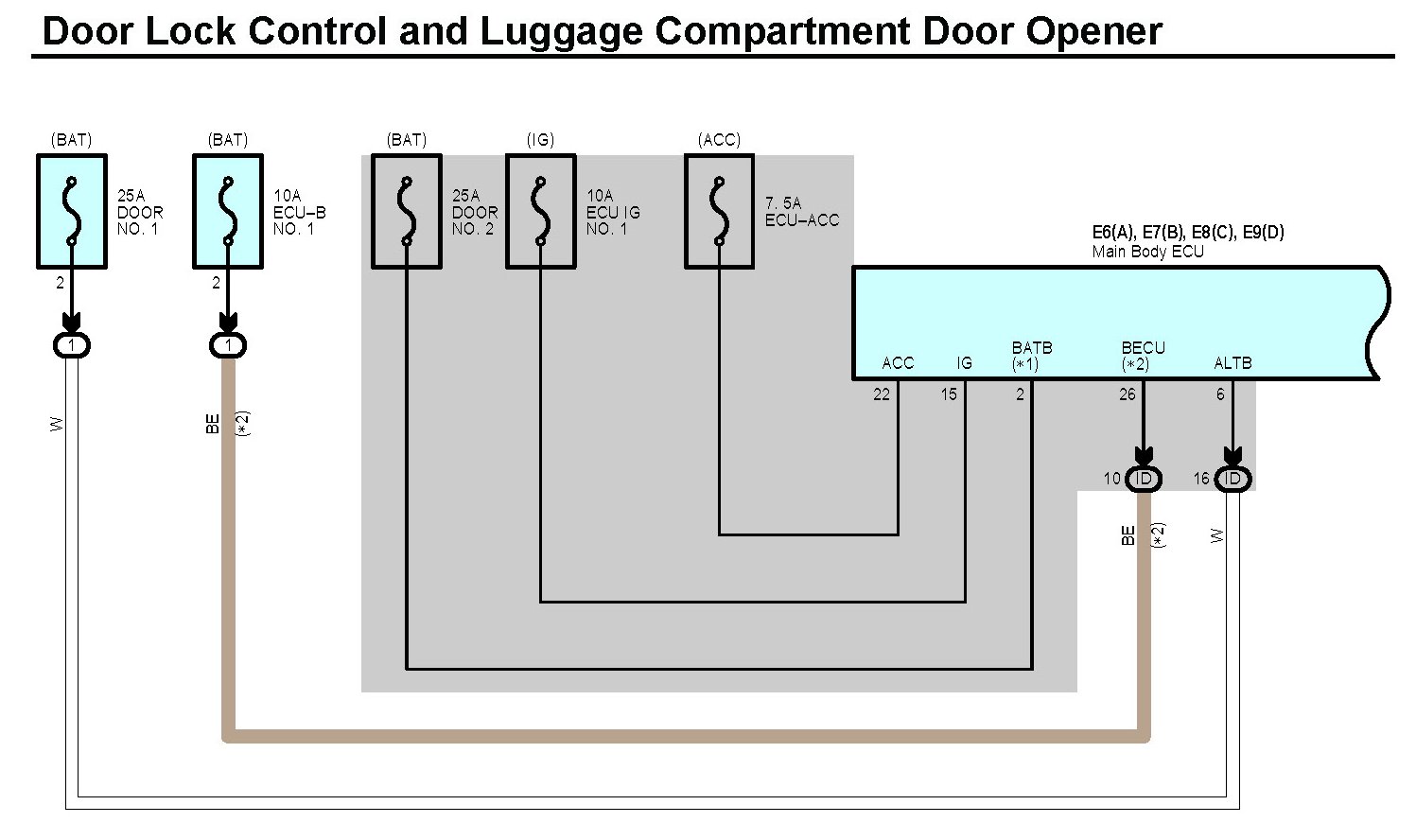

Door Lock Control and Luggage Compartment Door Opener Part 4:

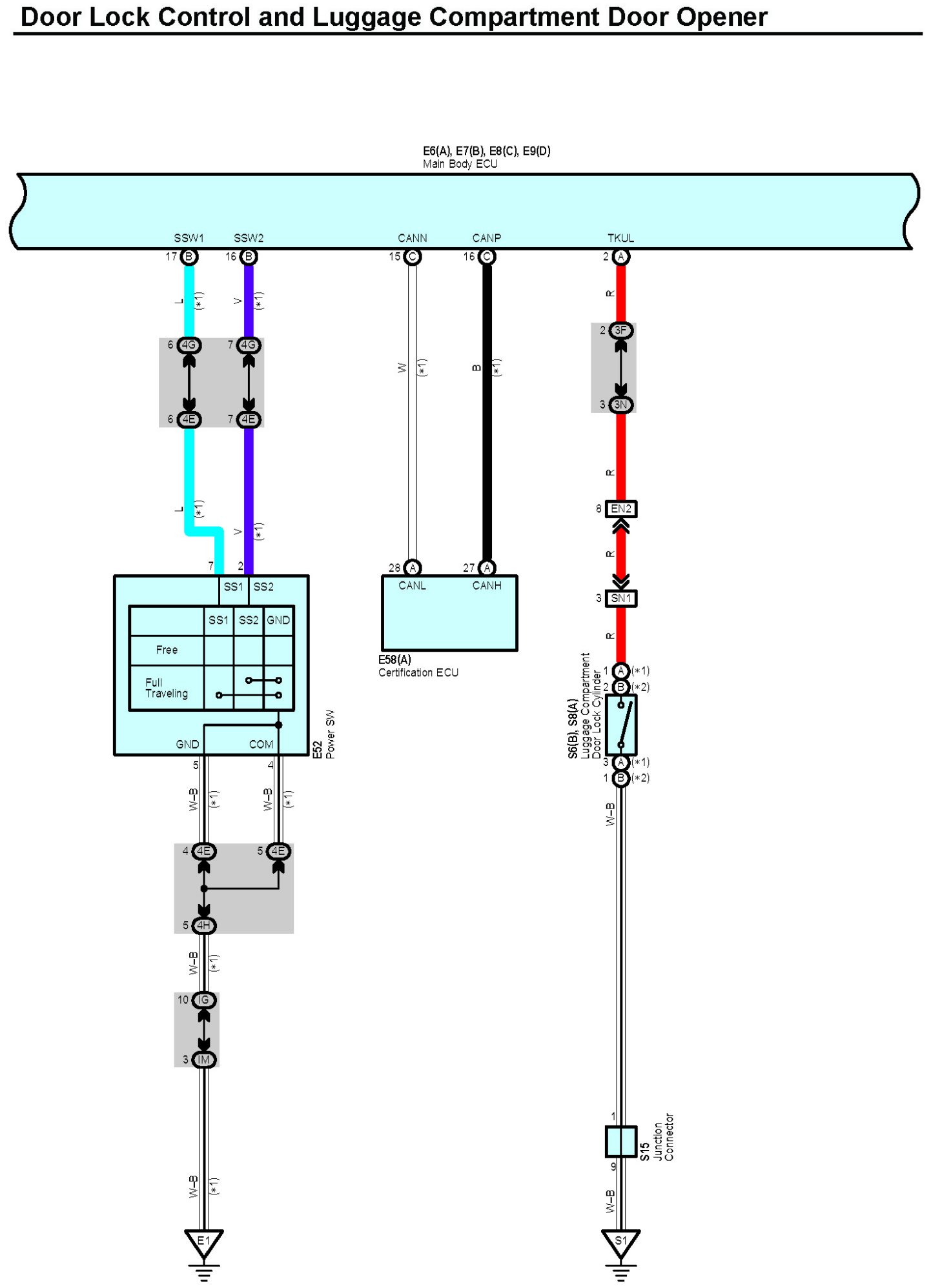

Door Lock Control and Luggage Compartment Door Opener Part 5:

Door Lock Control and Luggage Compartment Door Opener Part 6:

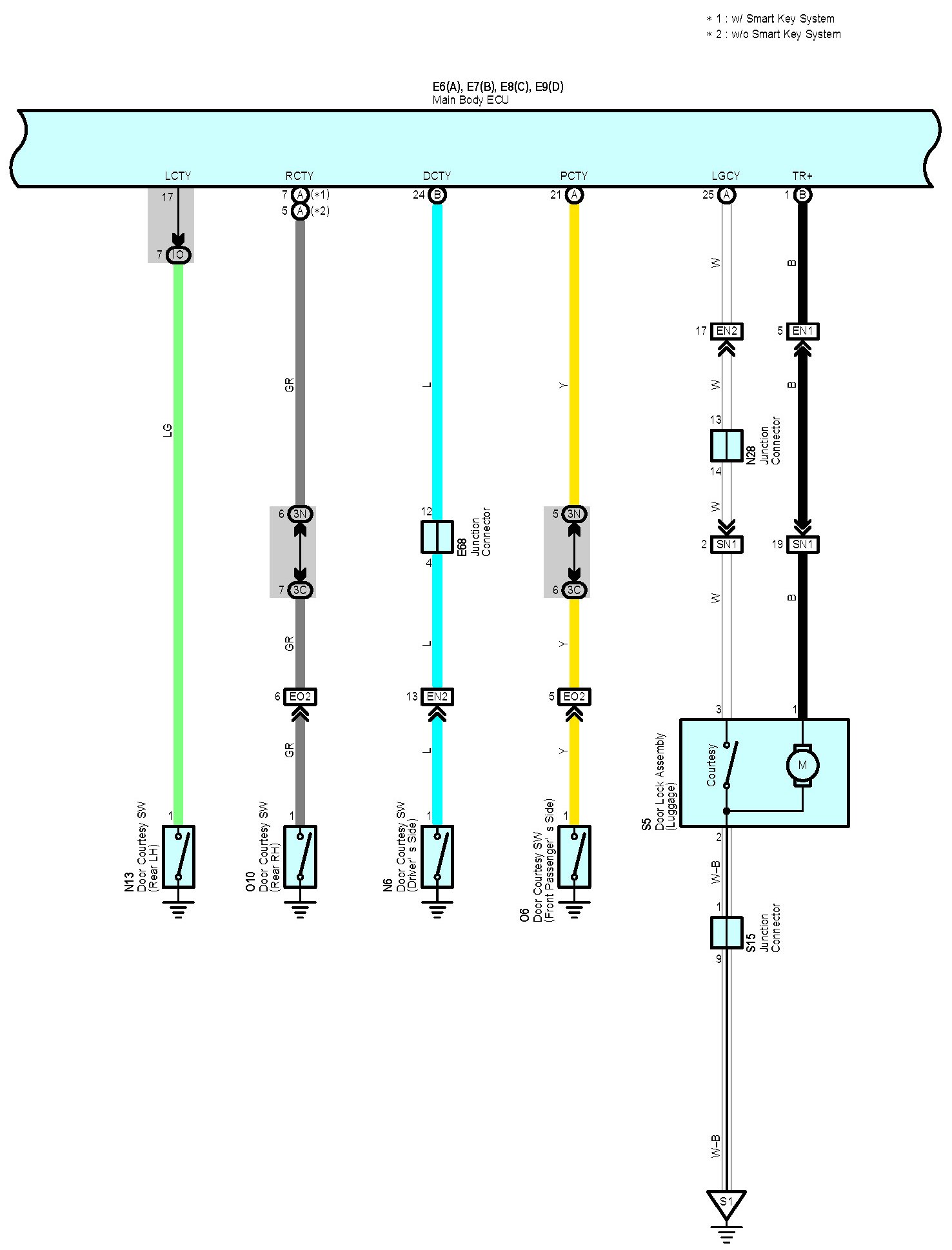

Door Lock Control and Luggage Compartment Door Opener Part 7:

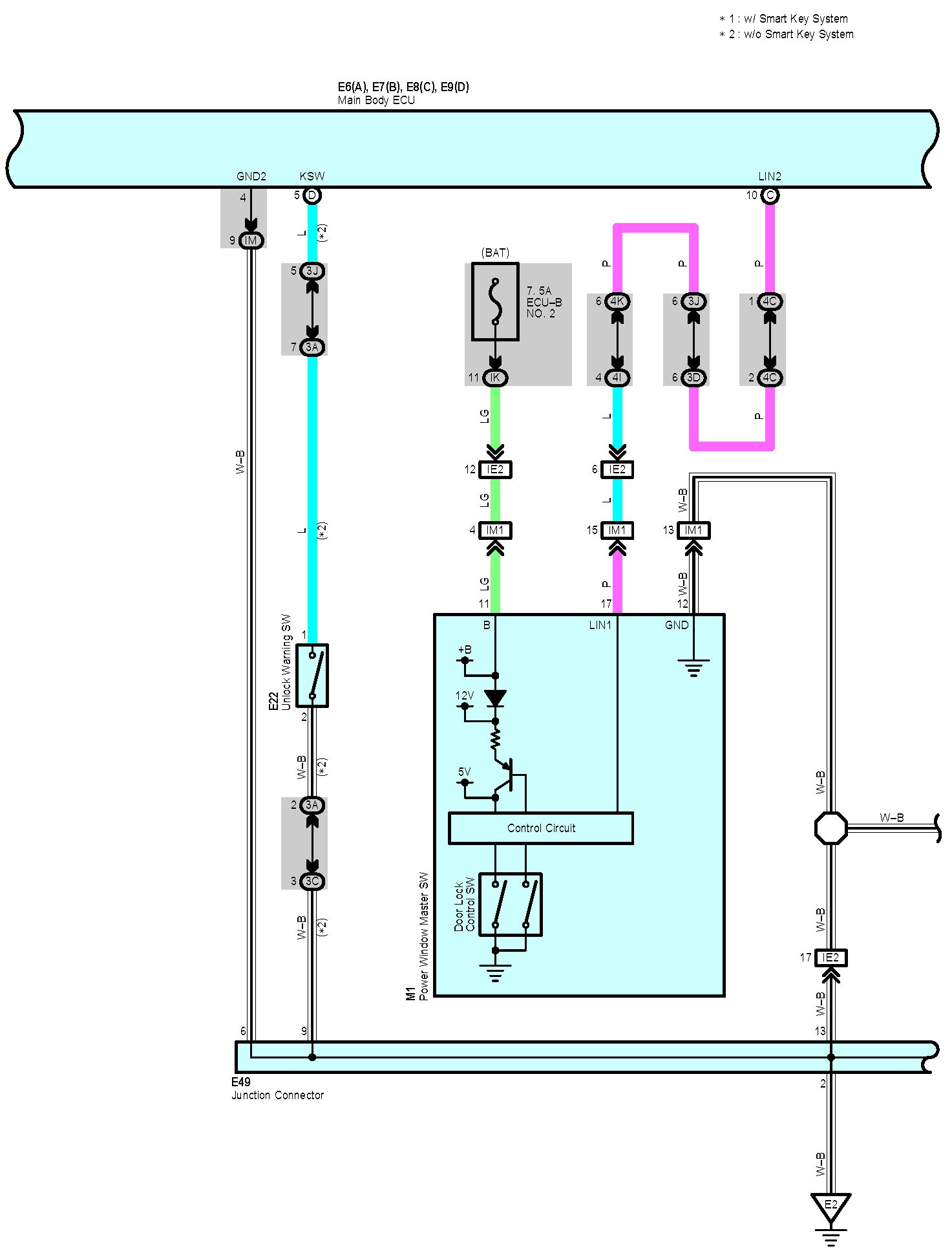

Door Lock Control and Luggage Compartment Door Opener Part 8:

Door Lock Control and Luggage Compartment Door Opener Part 9:

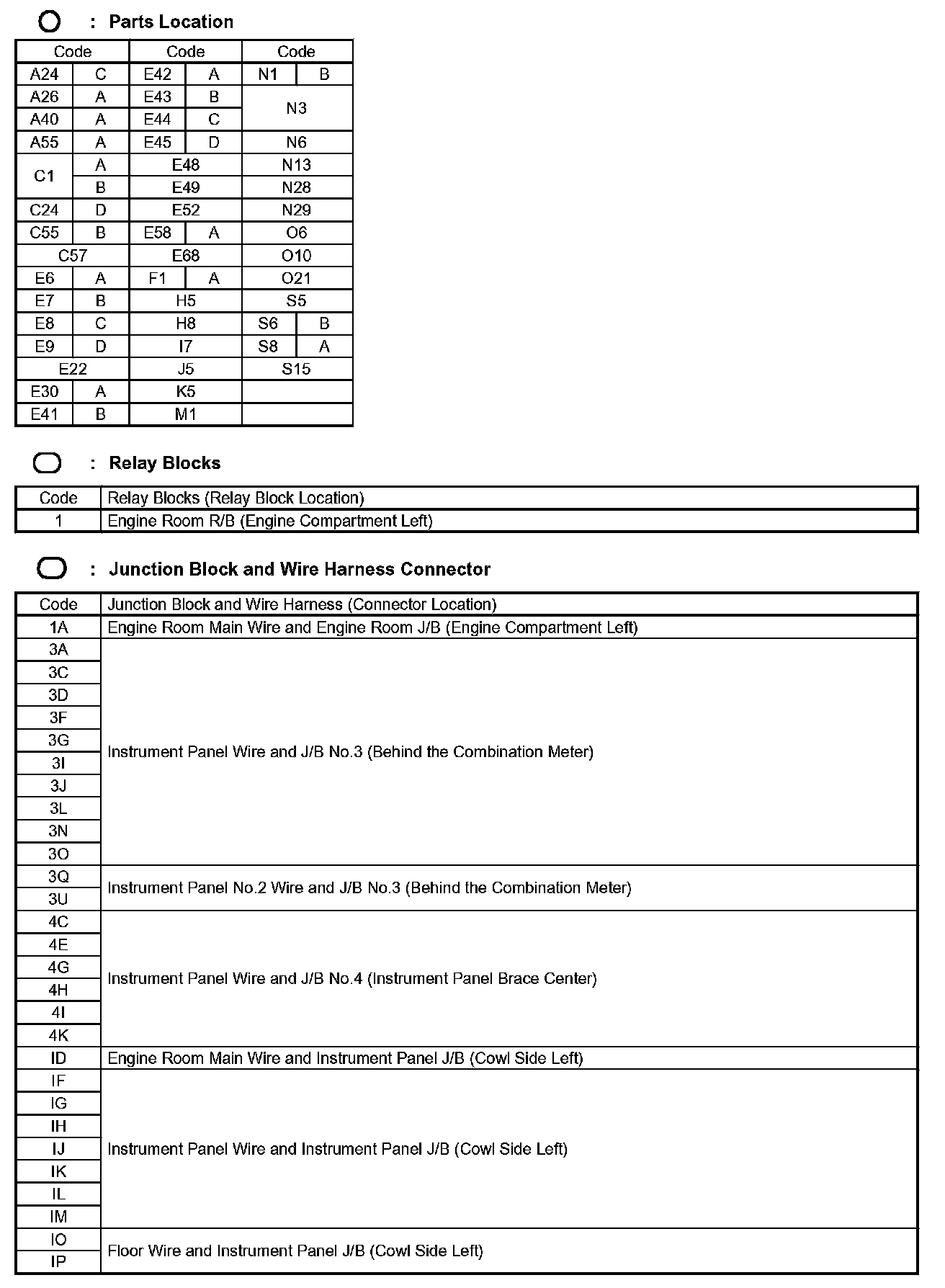

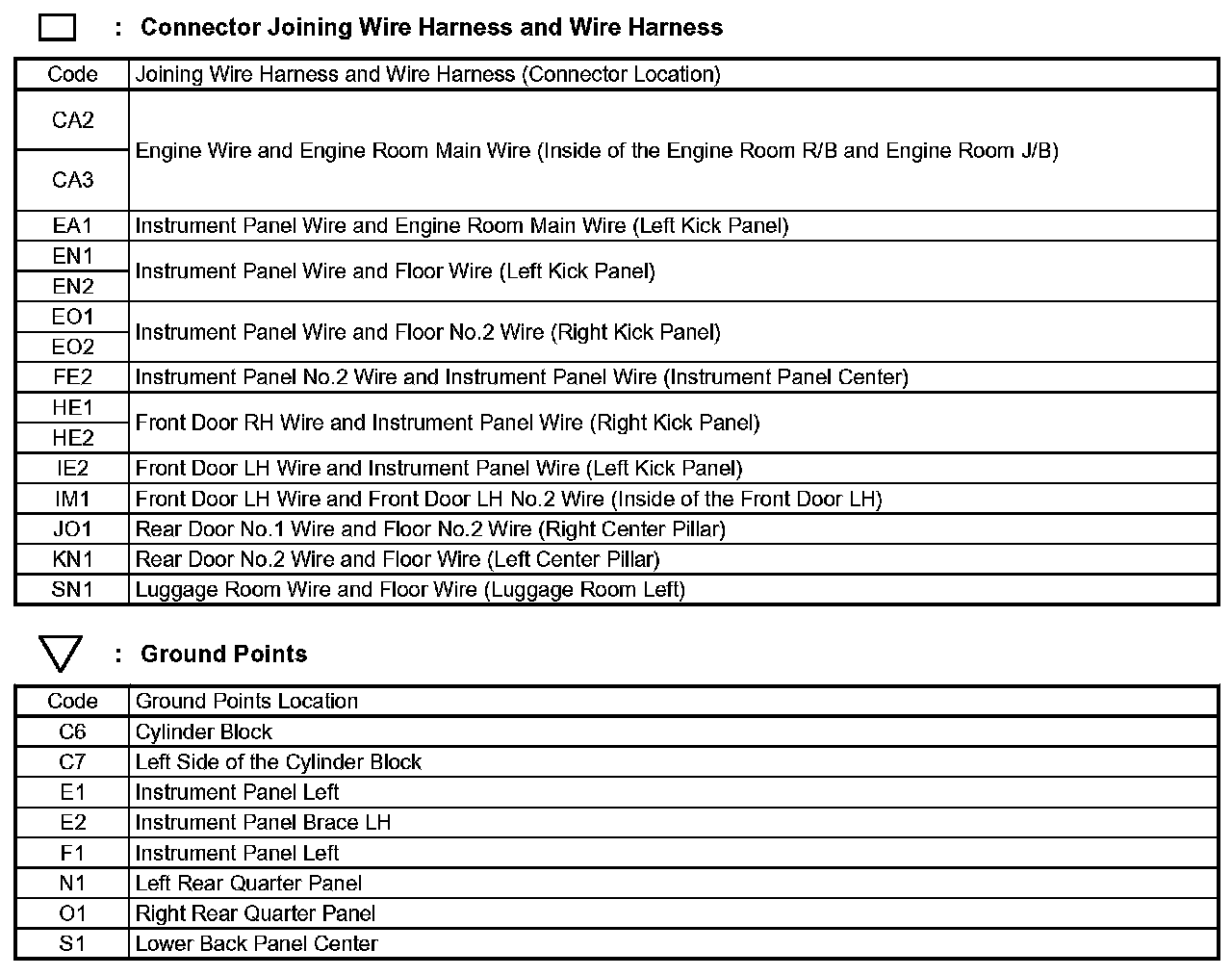

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
