Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory
- Satellite Radio Broadcast cannot be Selected or After Selecting Broadcast, Broadcast cannot be Added into Memory

INSPECTION PROCEDURE

NOTICE:
* Some satellite radio broadcast require payment. A contract must be made between a satellite radio company and the user. If the contract expires, the broadcast will not be able to be listened to or viewed.
* After replacing the radio receiver of vehicles subscribed to pay-type satellite radio broadcasts, the XM Radio ID registration is necessary.

PROCEDURE

1. CHECK RADIO RECEIVER

(a) Check the radio condition.

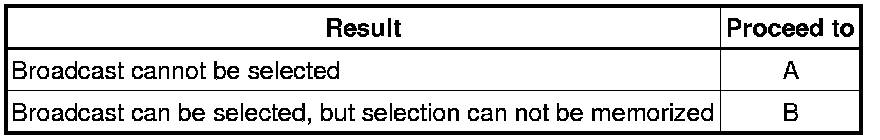

Result:





B -- CHECK BATTERY

A -- REPLACE RADIO RECEIVER

2. CHECK BATTERY

(a) Check if the battery was replaced.

OK:

Battery was not replaced.

NG -- REPLACE RADIO RECEIVER

OK -- REPLACE RADIO RECEIVER Removal

3. REPLACE RADIO RECEIVER

(a) Check if the preset channels that have been cleared can be added into memory again.

OK:

Preset channels can be added into memory.

NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Problem Symptoms Table

OK -- END
