Removal

AUDIO / VISUAL: STEREO COMPONENT AMPLIFIER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent the airbag working.

2. REMOVE SEAT TRACK COVER RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

3. REMOVE INNER SEAT TRACK BRACKET COVER RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

4. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

5. REMOVE SEAT TRACK COVER RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

6. REMOVE INNER SEAT TRACK BRACKET COVER RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

7. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat)

HINT
Use the same procedures for the RH side and the LH side Removal.

8. REMOVE AUDIO AMPLIFIER COVER

(a) Remove the 2 clips and audio amplifier cover.

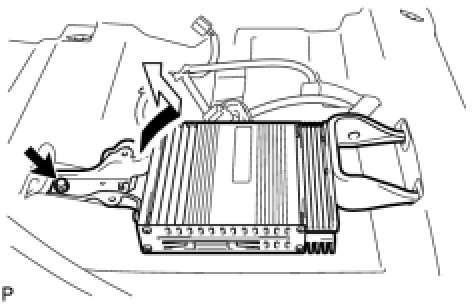

9. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

(a) Disconnect each connector and remove the bolt.





(b) Disengage the clip.

(c) Remove the bolt and stereo component amplifier assembly as shown in the illustration.
