Voice Is Not Recognized

NAVIGATION: NAVIGATION SYSTEM: Voice is not Recognized
- Voice is not Recognized

INSPECTION PROCEDURE

PROCEDURE

1. CHECK NAVIGATION SETTING

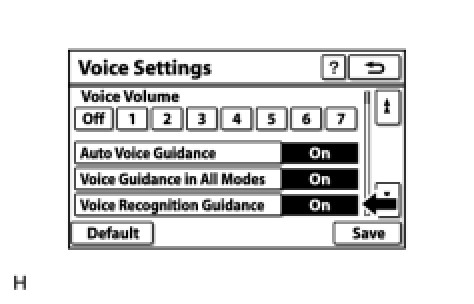

(a) Display the "Voice Settings" screen.

(b) Check that "Voice Recognition Guidance" is not "Off".





OK:

"Voice Recognition Guidance" is not "Off".

NG -- TURN VOICE RECOGNITION GUIDANCE "On"
OK -- Continue to next step.

2. CHECK MAP DISC

(a) Check that the map disc is not deformed or cracked.





OK:

No deformations or cracks on the map disc

NG -- REPLACE MAP DISC
OK -- Continue to next step.

3. CHECK MAP DISC

(a) Check for dirt on the map disc surface.





OK:

No dirt is on the map disc surface.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

HINT
If the disc is dirty, clean the disc by wiping the disc surface radially with a soft cloth.

NG -- CLEAN MAP DISC
OK -- Continue to next step.

4. CHECK MICROPHONE (OPERATION CHECK)

(a) Enter the "Microphone&Voice Recognition Check" screen (Check Mic & Voice Recognition) Operation Check.





(b) When voice is input into the microphone, check that the microphone input level meter changes according to the input voice.

(c) Push the recording switch and perform voice recording.

HINT
Voice can be recorded up to 5 seconds.

(d) Check that the recording indicator remains on while recording and that the recorded voice is played normally without noise or distortion.

OK:

All check results are normal.

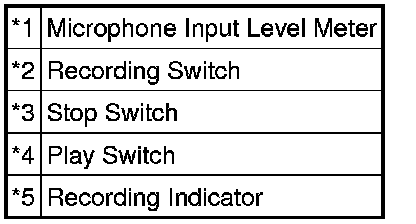

Text in Illustration





NG -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

OK -- REPLACE NAVIGATION RECEIVER ASSEMBLY Removal
