Mute Signal Circuit Between Stereo Component Tuner Assembly and Multi-media Interface ECU

NAVIGATION: NAVIGATION SYSTEM: Mute Signal Circuit between Stereo Component Tuner Assembly and Multi-media Interface ECU
- Mute Signal Circuit between Stereo Component Tuner Assembly and Multi-media Interface ECU

DESCRIPTION

The navigation receiver assembly controls the volume according to the MUTE signal from the stereo component tuner assembly.

The MUTE signal is sent to reduce noise and a popping sound generated when switching the mode etc. If there is an open in the circuit, noise can be heard from the speakers when changing the sound source. If there is a short in the circuit, even though the navigation receiver assembly is functioning normally, no sound or only an extremely faint sound can be heard.

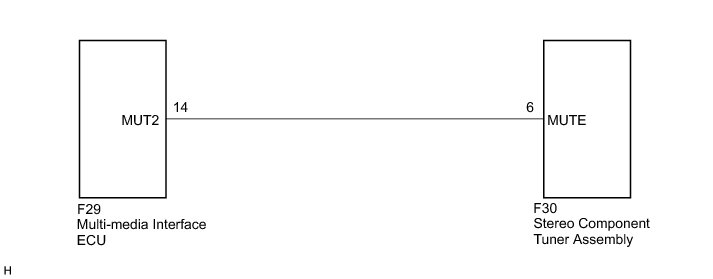

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. INSPECT STEREO COMPONENT TUNER ASSEMBLY

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Text in Illustration

NG -- CHECK HARNESS AND CONNECTOR (STEREO COMPONENT TUNER ASSEMBLY - MULTI-MEDIA INTERFACE ECU)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Symptom Related Diagnostic Procedures

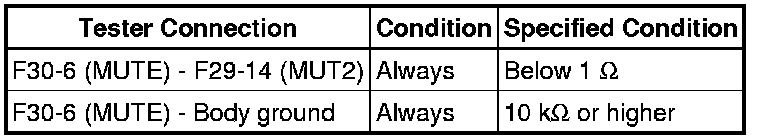

2. CHECK HARNESS AND CONNECTOR (STEREO COMPONENT TUNER ASSEMBLY - MULTI-MEDIA INTERFACE ECU)

(a) Disconnect the stereo component tuner assembly connector.

(b) Disconnect the multi-media interface ECU connector.

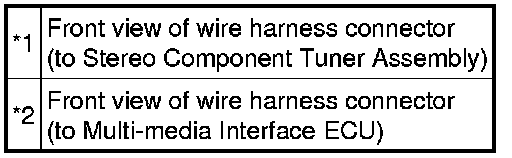

Text in Illustration

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

3. REPLACE STEREO COMPONENT TUNER ASSEMBLY

(a) Replace the stereo component tuner assembly and check that it operates normally Removal.

OK:

The navigation system operates normally.

NG -- REPLACE MULTI-MEDIA INTERFACE ECU Removal

OK -- END
