Pinout Values and Diagnostic Parameters

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: TERMINALS OF ECU

1. REAR TELEVISION CAMERA ASSEMBLY (w/o Smart Key System)

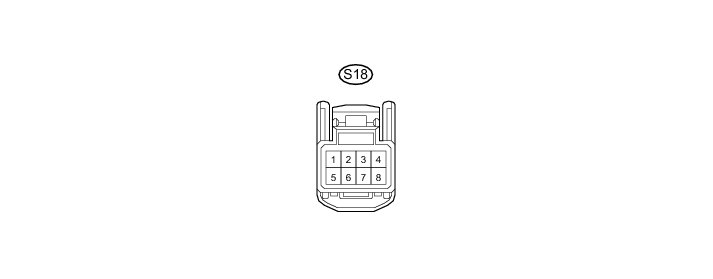

(a) Disconnect the S18 connector from the rear television camera assembly.

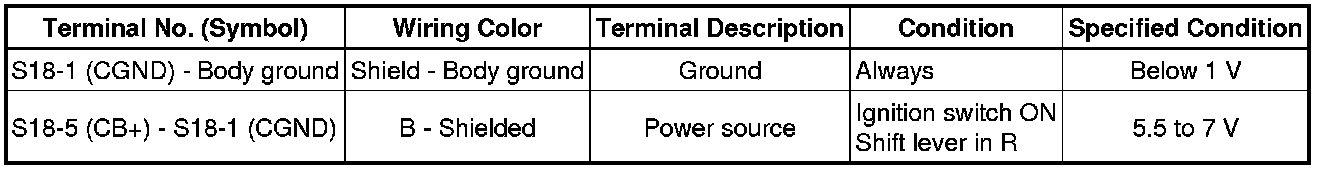

(b) Measure the voltage of each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the S18 connector to the rear television camera assembly.

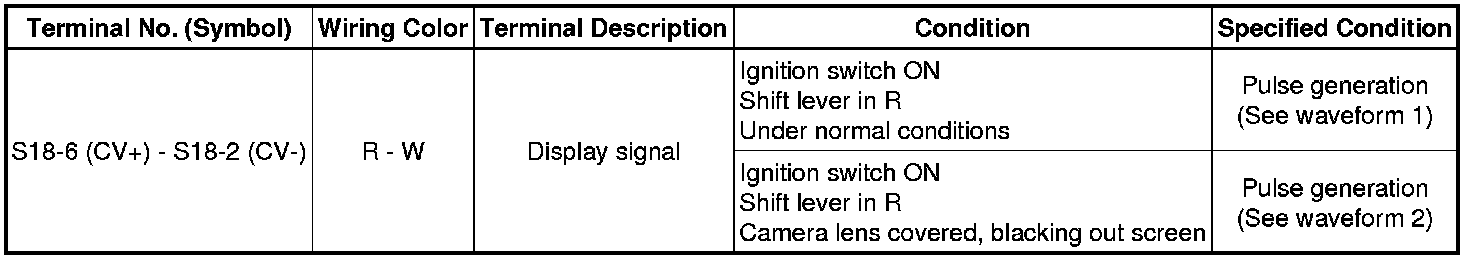

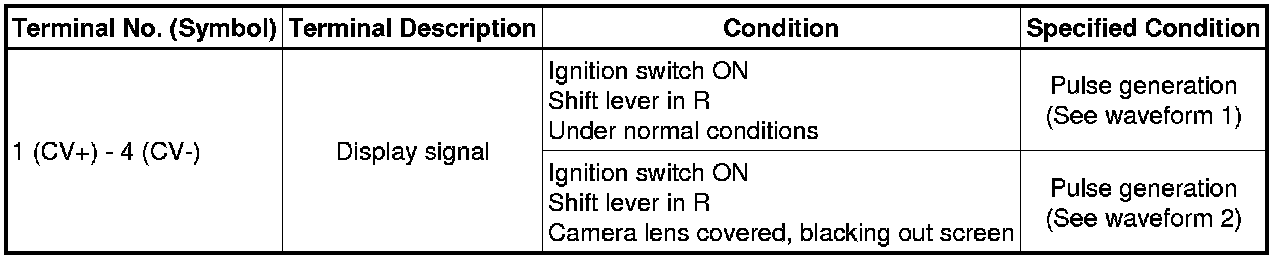

(d) Check for pulses between each terminal of the connector.





If the result is not as specified, the camera may have a malfunction.

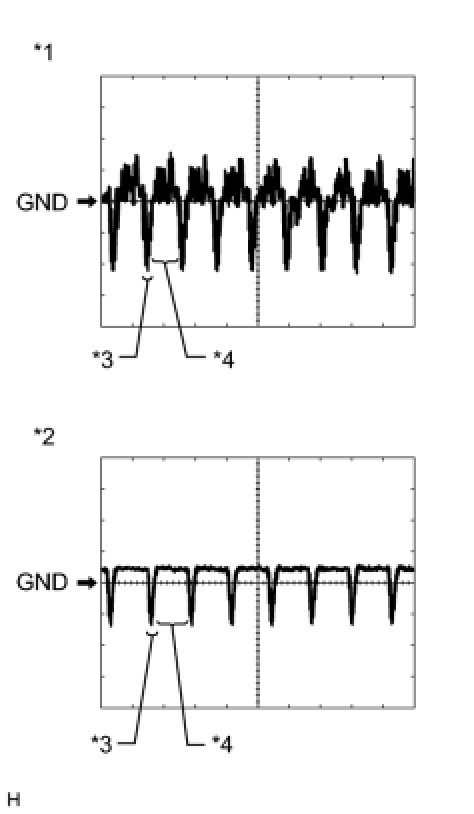

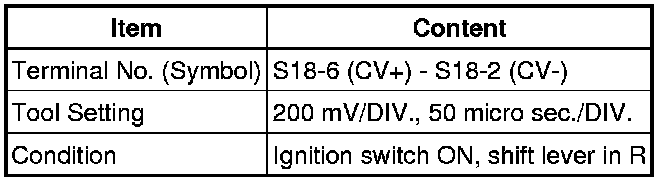

(e) Reference (Oscilloscope waveform):





(1) Waveform 1 (under normal conditions)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

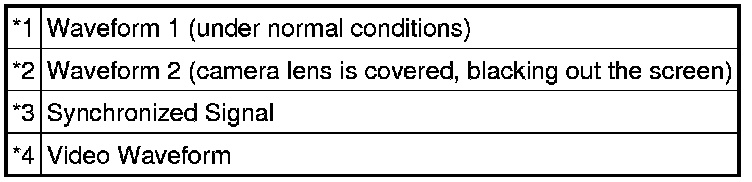

Text in Illustration





2. REAR TELEVISION CAMERA ASSEMBLY (w/ Smart Key System)

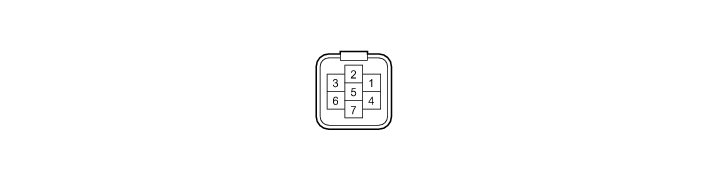

(a) Disconnect the connector from the rear television camera assembly.

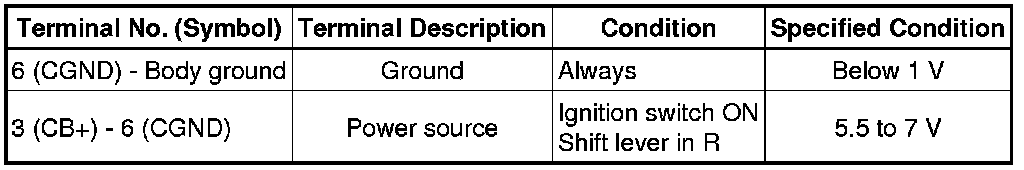

(b) Measure the voltage of each terminal of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the connector to the rear television camera assembly.

(d) Check for pulses between each terminal of the connector.





HINT
A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the navigation receiver assembly with the connector connected.

If the result is not as specified, the camera may have a malfunction.

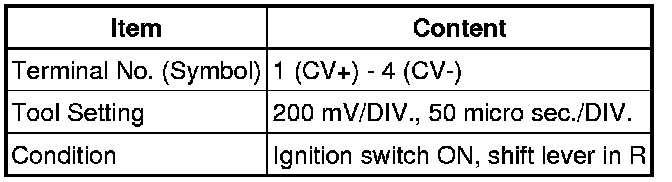

(e) Reference (Oscilloscope waveform):





HINT
A waterproof connector is used for the rear television camera assembly. Therefore, inspect the waveform at the navigation receiver assembly with the connector connected.

(1) Waveform 1 (under normal conditions)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image sent by the rear television camera assembly.

Text in Illustration





3. NAVIGATION RECEIVER ASSEMBLY Pinout Values and Diagnostic Parameters
