Home >> Toyota >> 2011 >> Camry L4-2.5L (2AR-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Locations

Collision Avoidance and Parking Assist Systems: Locations

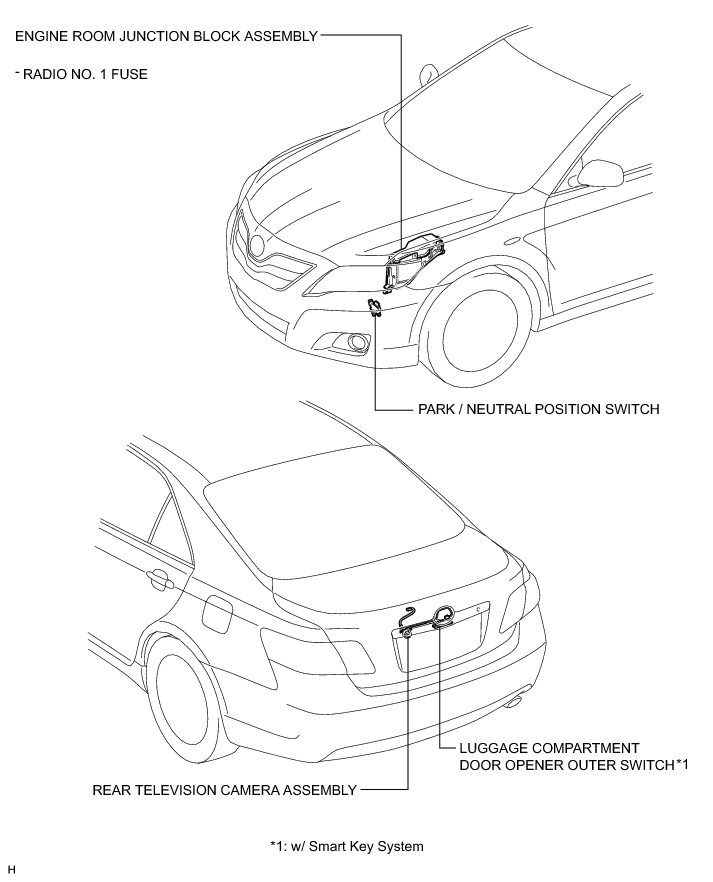

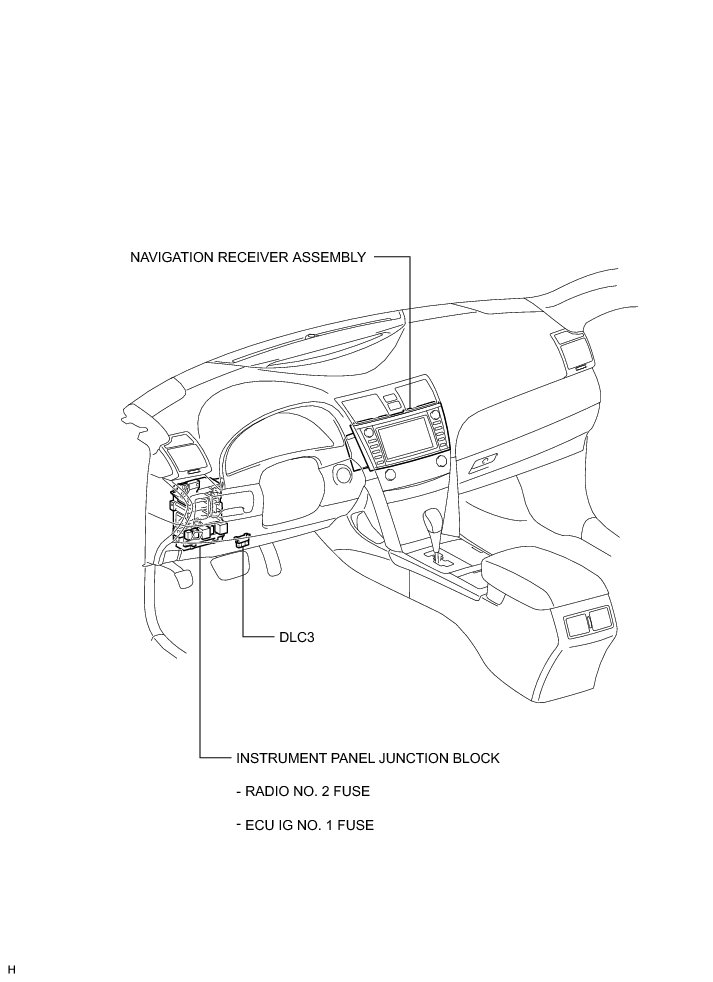

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: PARTS LOCATION
