Collision Avoidance and Parking Assist Systems: Description and Operation

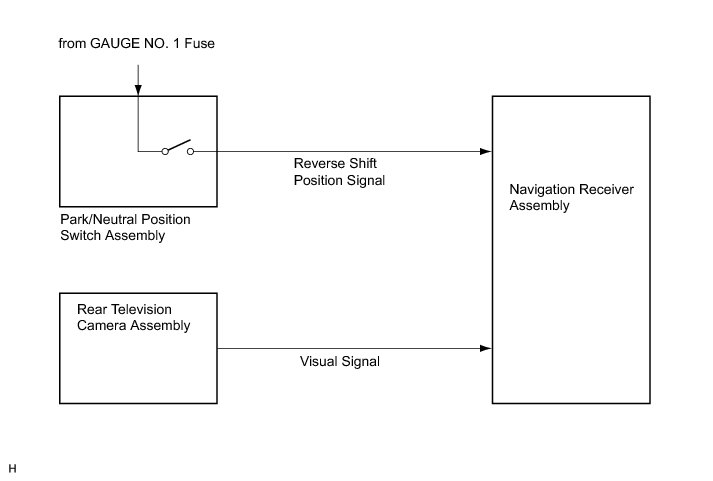

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: SYSTEM DIAGRAM






1. GENERAL

(a) To assist the driver with parking the vehicle by displaying an image of the area behind the vehicle, this system has a television camera mounted on the back door. The system displays the image on the navigation receiver assembly.

(b) This system consists of the following components:

(1) Navigation receiver assembly

(2) Rear television camera assembly

(3) Park/Neutral position switch assembly

2. FUNCTION OF COMPONENTS

(a) The navigation receiver assembly controls the system by using information from the following components:





3. OPERATION EXPLANATION

(a) The navigation receiver assembly receives the reverse shift position signal from the park/neutral position switch assembly when the shift lever is moved to R. After receiving the reverse shift position signal, the navigation receiver assembly switches from the navigation system to the rear view monitor system.

4. DIAGNOSTIC FUNCTION

(a) The navigation system has a diagnostic function displayed in the navigation receiver assembly. This function enables the confirmation of the input signal for reverse shift position Description and Operation.
