Theft Deterrent System (w/o Smart Key System)

THEFT DETERRENT: THEFT DETERRENT SYSTEM (w/o Smart Key System): DATA LIST / ACTIVE TEST

1. DATA LIST

HINT
Using Techstream Data List allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the Data List early in troubleshooting is one way to shorten labor time.

(a) Connect the Techstream (with CAN VIM) to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Body Electrical / Main body / Data List.

(d) Read the Data List according to the display on the tester.

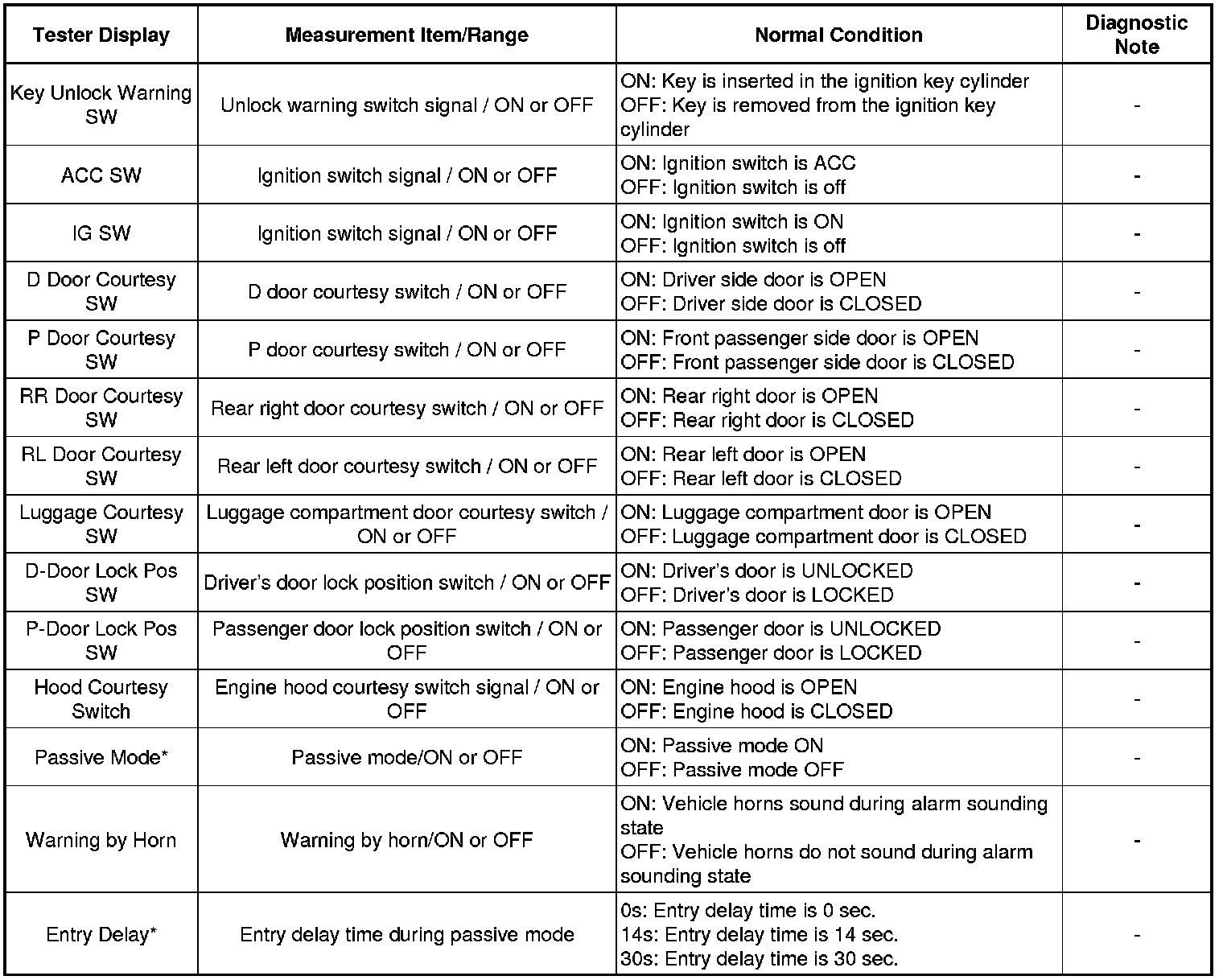

Main Body:





*: except Korea

2. ACTIVE TEST

HINT
Performing Techstream Active Tests allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the Active Tests early in troubleshooting is one way to shorten the labor time. The Data List can be displayed during the Active Tests.

(a) Connect the Techstream (with CAN VIM) to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Body Electrical / Main body /Active Test.

(d) Perform the Active Test according to the display on the tester.

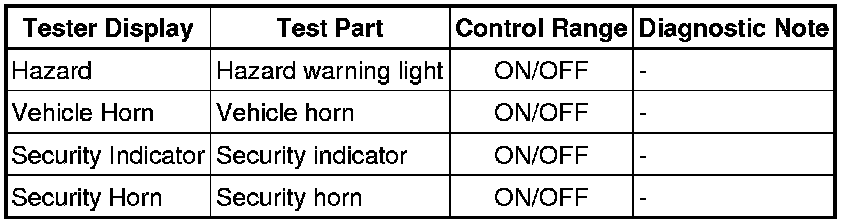

Main Body:
