ECU Power Source Circuit

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): ECU Power Source Circuit
- ECU Power Source Circuit

DESCRIPTION

This circuit provides power to operate the transponder key ECU assembly.

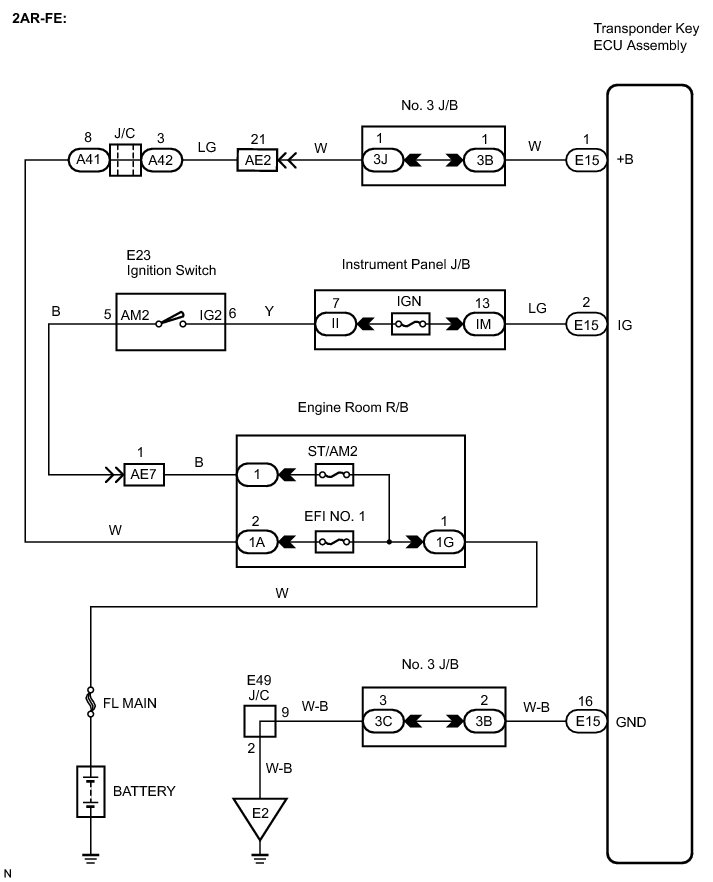

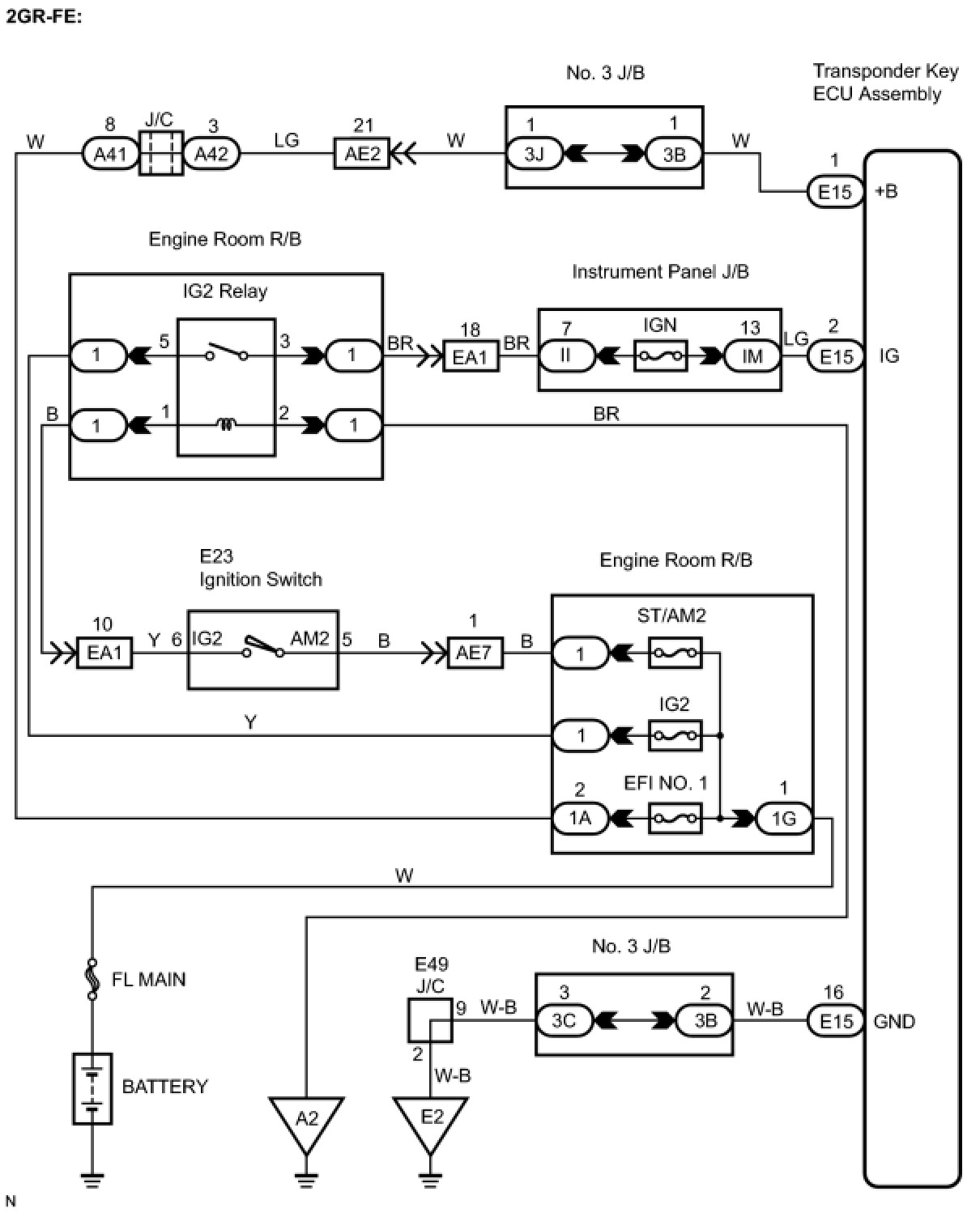

WIRING DIAGRAM









INSPECTION PROCEDURE

NOTICE:
If the transponder key ECU assembly is replaced, register the key and ECU communication ID Engine Immobiliser System (W/O Smart Key System).

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BATTERY)

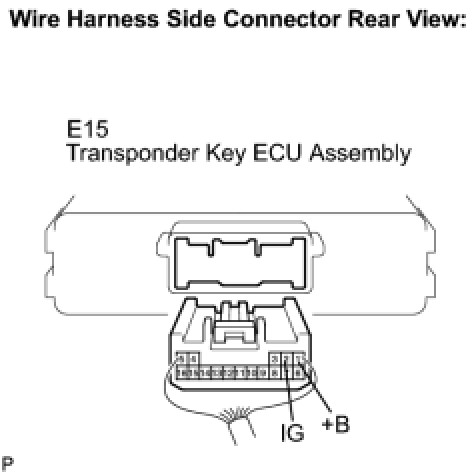

(a) Disconnect the E15 ECU connector.

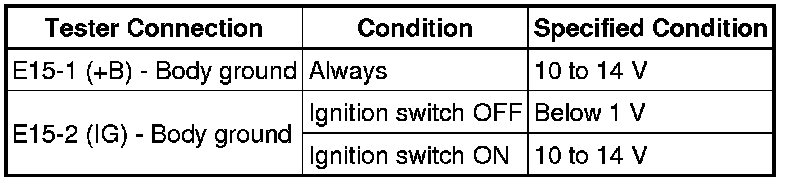

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR, OR REPLACE FUSE
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - BODY GROUND)

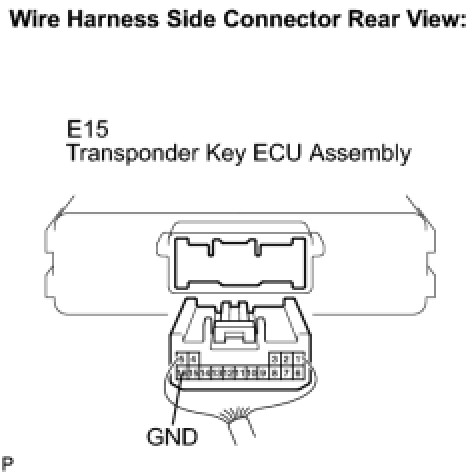

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
